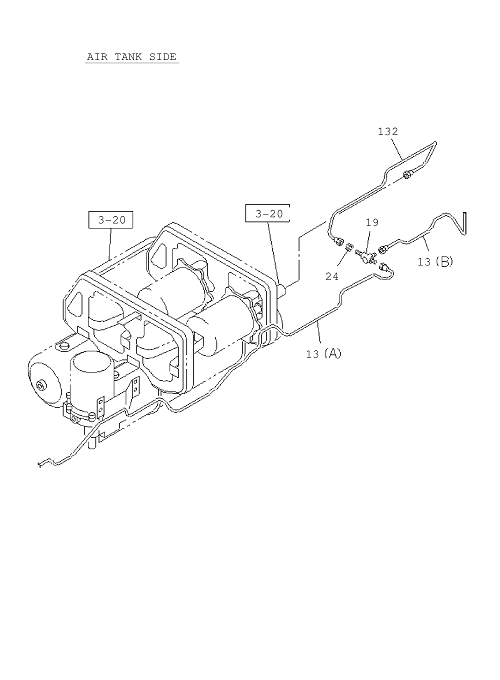

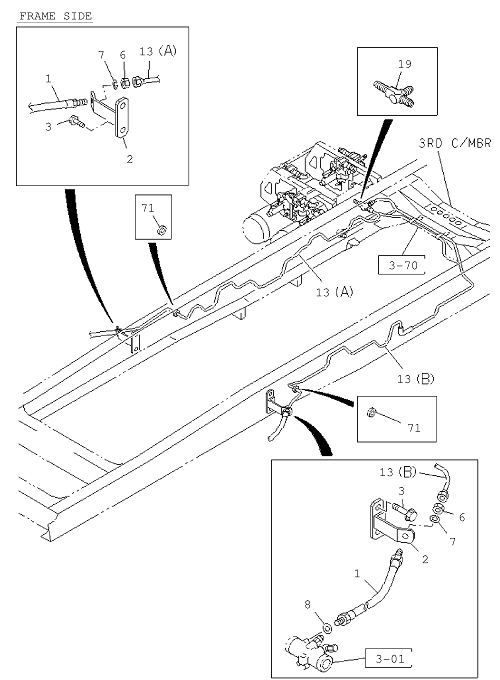

3-52 | BRAKE PIPING; OIL,FRONT
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 24 | I9-09840 280-0 | NUT; UNION,OIL PIPE | 1 | 1108- | A | M12 | ||
| 2 | I8-98177 524-0 | BRACKET; FLEX HOSE,FRT BRK | 2 | 1108- | A | |||
| 7 | I0-91510 512-0 | WASHER; LK,FLEX HOSE,FRT BRK | 2 | 1108- | A | ID=12.2 | ||
| 13 | I8-98179 288-A | PIPE; OIL,UNION TO UNION | 1 | 1406- | A | 6HK1-TCS ENG(80L) (A) L=1540 SERVICED BY L=1620 | ||
| 8 | I9-09920 472-0 | GASKET; FLEX HOSE,FRT BRK | 2 | 1108- | A | ID=9 OD=17 | ||
| 3 | I0-28650 825-0 | BOLT; BRKT,FLEX HOSE,FRT BRK | 4 | 1108- | A | M8X2 5 FLANGE IDN | ||
| 71 | I9-09956 092-A | GROMMET; OIL PIPE | 2 | 1108- | A | ID=2 4 OD=3 0 T=17 | ||
| 13 | I8-98185 767-A | PIPE; OIL,UNION TO UNION | 1 | 1108- | A | (A) L=1606 | ||
| 1 | I0-05212 610-0 | HOSE; FLEX, FRT BRK | 2 | 1108- | A | L=610 | ||
| 71 | I9-09956 092-A | GROMMET; OIL PIPE | 2 | 1108- | A | ID=2 4 OD=3 0 T=17 | ||
| 19 | I0-92138 906-0 | UNION; OIL PIPE | 1 | 1108- | A | M12 3WAY | ||
| 13 | I8-98185 767-A | PIPE; OIL,UNION TO UNION | 1 | 1108- | A | (A) L=1606 | ||
| 18 | I1-47428 546-0 | PIPE; OIL,UNION TO FRT FLEX HOSE | 1 | 1406- | A | 6HK1-TCS ENG(80L) L=2552 SERVICED BY L=2650 | ||
| 13 | I8-98179 288-A | PIPE; OIL,UNION TO UNION | 1 | 1403- | B | (A) L=1531 SERVICED BY L=1620 | ||
| 13 | I8-98185 767-A | PIPE; OIL,UNION TO UNION | 1 | 1312- | A | 6HK1-TCN ENG(82L) (A) L=1606 | ||
| 13 | I8-98185 687-A | PIPE ASM FRT BRK | 1 | 1108- | A | (B) L=3254 | ||
| 13 | I1-47428 746-0 | PIPE; OIL,UNION TO UNION | 1 | 1108- | A | (B) L=3254 SERVICED BY L=3400 | ||
| 132 | I1-47428 729-0 | PIPE; OIL,BRK,HYD UNIT | 1 | 1108- | A | L=895 SERVICED BY L=900 | ||
| 6 | I9-09840 280-0 | NUT; FLEX HOSE,FRT BRK | 2 | 1108- | A | M12 | ||
| 132 | I8-98183 131-A | PIPE ASM FRT BRK | 1 | 1108- | A | L=895 SERVICED BY L=900 |
