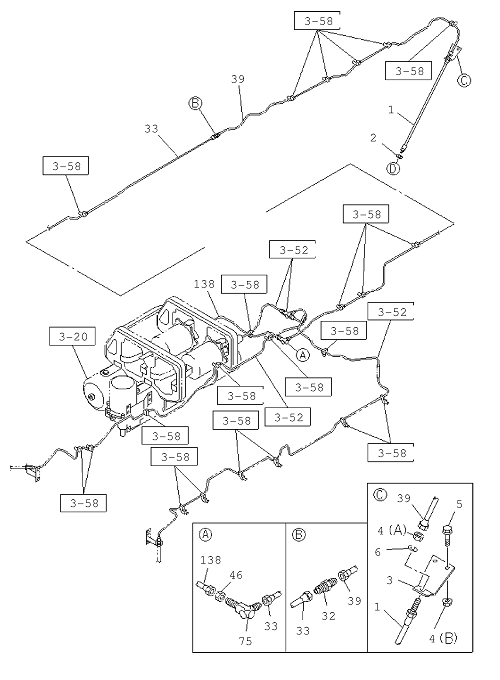

3-55 | BRAKE PIPING; OIL,REAR
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 33 | I8-98185 757-A | PIPE; OIL,UNION TO UNION | 1 | 1403- | B | L=1213 SERVICED BY L=1250 | ||
| 4 | I9-09840 280-0 | NUT; BRKT,FLEX HOSE,RR BRK | 1 | 1108- | A | (A) M12 | ||
| 33 | I8-98185 757-A | PIPE; OIL,UNION TO UNION | 1 | 1108- | A | WHEEL BASE 4200MM(42W) L=1240 SERVICED BY L=1250 | ||
| 5 | I0-28650 825-0 | BOLT; BRKT,FLEX HOSE,RR BRK | 2 | 1108- | A | M8X25 FLANGE IDN | ||
| 39 | I1-47427 962-0 | PIPE; OIL,UNION TO RR FLEX HOSE | 1 | 1108- | A | L=2138 SERVICED BY L=2200 | ||
| 33 | I8-98185 757-A | PIPE; OIL,UNION TO UNION | 1 | 1312- | A | WHEEL BASE 4200MM(42W) L=1240 SERVICED BY L=1250 | ||
| 46 | I9-09840 280-0 | NUT; UNION,OIL PIPE | 1 | 1108- | A | M12 | ||
| 33 | I8-98185 689-A | PIPE; OIL,UNION TO UNION | 1 | 1108- | A | WHEEL BASE 5000MM(50W) L=2040 | ||

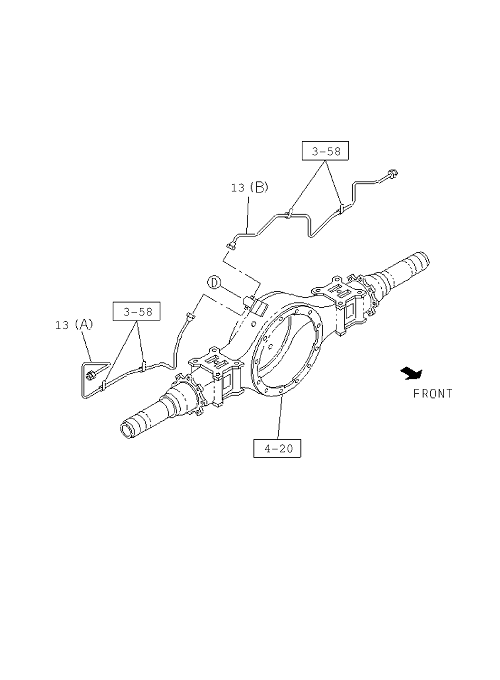

| 13 | I8-98003 971-A | PIPE; BRK,RR AXLE | 1 | 1312- | A | (B) L=1212 | ||
| 33 | I8-98185 757-A | PIPE; OIL,UNION TO UNION | 1 | 1108- | A | WHEEL BASE 4200MM(42W) L=1240 SERVICED BY L=1250 | ||
| 1 | I0-05212 700-0 | HOSE; FLEX,RR BRK | 1 | 1108- | A | L=700 | ||
| 39 | I1-47427 962-0 | PIPE; OIL,UNION TO RR FLEX HOSE | 1 | 1108- | A | L=2138 SERVICED BY L=2200 | ||
| 13 | I8-98003 970-A | PIPE; BRK,RR AXLE | 1 | 1108- | A | (A) L=935 | ||
| 3 | I1-47465 251-0 | BRACKET; FLEX HOSE,RR BRK | 1 | 1108- | A | |||
| 138 | I8-98084 317-A | PIPE; HYDRAULIC UNIT | 1 | 1108- | A | L=504 | ||
| 39 | I8-98179 288-A | PIPE; OIL,UNION TO RR FLEX HOSE | 1 | 1403- | B | L=1536 SERVICED BY L=1620 | ||
| 75 | I0-92125 206-0 | UNION; OIL PIPE | 1 | 1108- | A | M12 ELBOW | ||
| 33 | I8-98185 689-A | PIPE; OIL,UNION TO UNION | 1 | 1312- | A | WHEEL BASE 5000MM(50W) L=2040 | ||
| 32 | I0-92113 006-0 | UNION; OIL PIPE | 1 | 1108- | A | M12 L=40 | ||
| 33 | I8-98185 689-A | PIPE; OIL,UNION TO UNION | 1 | 1108- | A | WHEEL BASE 5000MM(50W) L=2040 | ||
| 2 | I9-09920 472-0 | GASKET; FLEX HOSE,RR BRK | 1 | 1108- | A | ID=9 OD=17 | ||
| 33 | I1-47428 745-0 | PIPE ASM RR BRK | 1 | 1108- | A | WHEEL BASE 6000MM(60W) | ||
| 13 | I8-98003 970-A | PIPE; BRK,RR AXLE | 1 | 1312- | A | (A) L=935 | ||
| 4 | I0-91180 108-0 | NUT; BRKT,FLEX HOSE,RR BRK | 2 | 1108- | A | (B) M8 FLANGE | ||
| 33 | I1-47428 745-0 | PIPE; OIL,UNION TO UNION | 1 | 1108- | A | WHEEL BASE 6000MM(60W) L=3041 SERVICED BY L=3200 | ||
| 6 | I0-91510 812-0 | WASHER; LK,FLEX HOSE | 1 | 1108- | A | ID=12.2 | ||
| 13 | I8-98003 971-A | PIPE; BRK,RR AXLE | 1 | 1108- | A | (B) L=1212 | ||
| 39 | I8-98185 766-A | PIPE ASM RR BRK | 1 | 1108- | A | L=2138 SERVICED BY L=2200 | ||
| 39 | I1-47427 962-0 | PIPE; OIL,UNION TO RR FLEX HOSE | 1 | 1312- | A | L=2138 SERVICED BY L=2200 |
