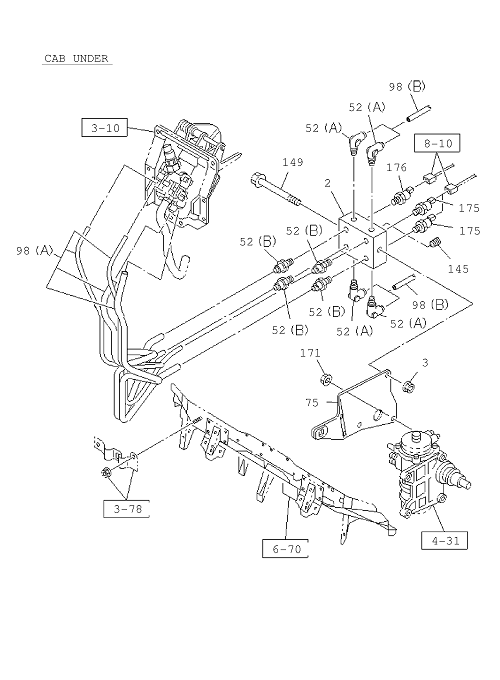

3-75 | BRAKE PIPING; AIR,FRONT
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 52 | I1-09660 967-0 | CONNECTOR; NYLON TUBE | 4 | 1108- | A | (B) DIN12 & R1/4 STRAIGHT | ||
| 171 | I7-05110 010-A | NUT; BRACKET | 2 | 1108- | A | M10 FLANGE | ||
| 52 | I1-09660 958-0 | CONNECTOR; NYLON TUBE | 4 | 1108- | A | (A) DIN12 & R1/4 ELBOW | ||
| 176 | I8-98010 857-0 | SWITCH; AIR PRESS | 1 | 1108- | A | |||
| 98 | I1-87411 014-0 | TUBE; NYLON | 3 | 1108- | A | (B) SERVICED BY L=8000 OD=12 | ||
| 117 | I1-87411 035-0 | TUBE; CORRUGATE | 1 | 1108- | A | SERVICED BY L=2000 ID=32 | ||
| 3 | I0-91180 108-0 | NUT; PIPE UNION | 1 | 1108- | A | M8 FLANGE | ||
| 145 | I9-99204 513-0 | PLUG | 1 | 1108- | A | PT1/4 | ||
| 149 | I0-28050 800-0 | BOLT; UNION | 1 | 1108- | A | M8X100 FLANGE | ||
| 75 | I8-98099 485-1 | BRACKET; UNION | 1 | 1108- | A | |||
| 171 | I7-05110 010-A | NUT; BRACKET | 2 | 1312-1402 | A | M10 FLANGE | ||
| 98 | I1-87411 006-0 | TUBE; NYLON | 1 | 1108- | A | (B) SERVICED BY L=2000 OD=8 | ||
| 171 | I7-05110 010-A | NUT; BRACKET | 2 | 1403- | AB | M10 FLANGE | ||
| 52 | I8-98142 232-0 | CONNECTOR; NYLON TUBE | 1 | 1403- | B | GVR-TH | ||
| 98 | I8-98139 141-A | TUBE; NYLON | 1 | 1312-1402 | A | (A) | ||
| 117 | I1-87411 034-0 | TUBE; CORRUGATE | 1 | 1108- | A | SERVICED BY L=4000 ID=28 | ||
| 171 | I7-05110 010-A | NUT; BRACKET | 2 | 1108- | A | M10 FLANGE | ||
| 175 | I1-80220 023-1 | SENSOR; AIR PRESS | 2 | 1108- | A | |||
| 98 | I8-98139 141-A | TUBE; NYLON | 1 | 1403- | AB | (A) | ||
| 117 | I1-87411 022-0 | TUBE; CORRUGATE | 3 | 1108- | A | SERVICED BY L=2000 ID=13 | ||
| 98 | I1-87411 013-0 | TUBE; NYLON | 1 | 1108- | A | (B) SERVICED BY L=6000 OD=12 | ||
| 2 | I8-98057 394-1 | UNION; AIR PIPE | 1 | 1108- | A | |||
| 98 | I8-98139 141-A | TUBE; NYLON | 1 | 1108- | A | (A) |
