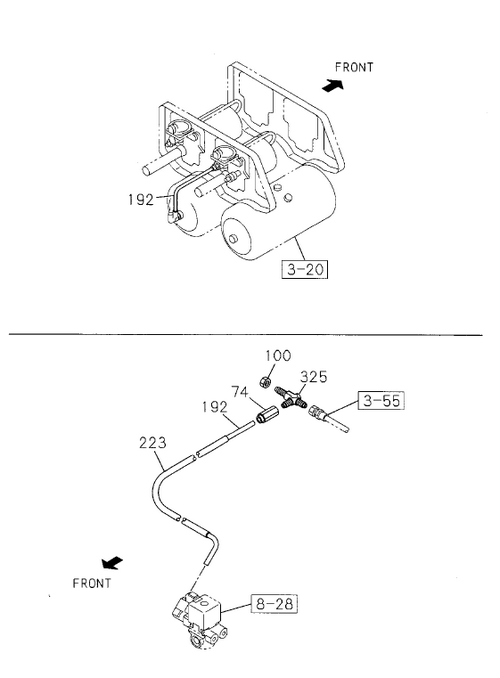

3-77 | BRAKE PIPING; AIR,REAR
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

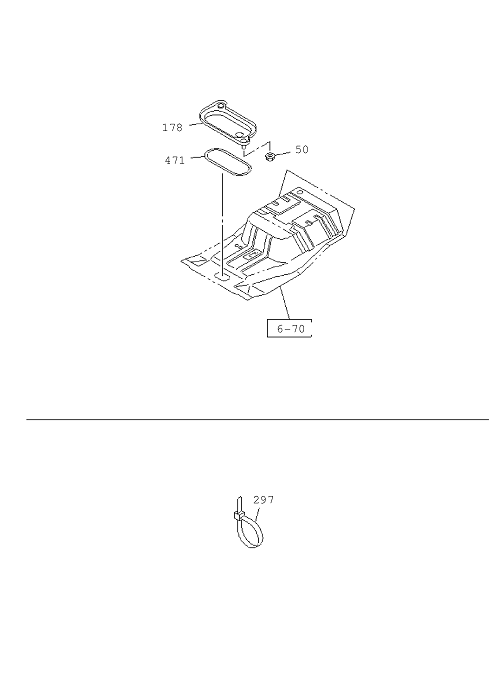

| 297 | I1-09707 183-0 | CLIP; BAND | 3 | 1108- | A | L=350 | ||
| 178 | I8-98017 052-1 | BRACKET; UNION | 1 | 1108- | A | |||
| 471 | I1-79738 832-0 | SEAL; BRKT | 1 | 1108- | A | |||
| 50 | I0-91180 108-0 | NUT; UNION BRKT | 2 | 1108- | A | M8 FLANGE | ||
| 178 | I8-98017 052-1 | BRACKET; UNION FVR | 1 | 1403- | AB | |||
| 89 | I8-97611 963-1 | CONNECTOR; NYLON TUBE | 1 | 1403- | B | GVR-TH | ||
| 89 | I8-97611 979-1 | CONNECTOR; NYLON TUBE | 1 | 1403- | B | GVR-TH | ||
| 333 | I8-98017 054-1 | BRACKET; CONNECTOR | 1 | 1403- | B | GVR-TH | ||
| 333 | I8-98017 054-1 | BRACKET; CONNECTOR | 1 | 1403- | B | GVR-TH | ||
| 89 | I8-97611 979-1 | CONNECTOR; NYLON TUBE | 1 | 1403- | B | GVR-TH |
