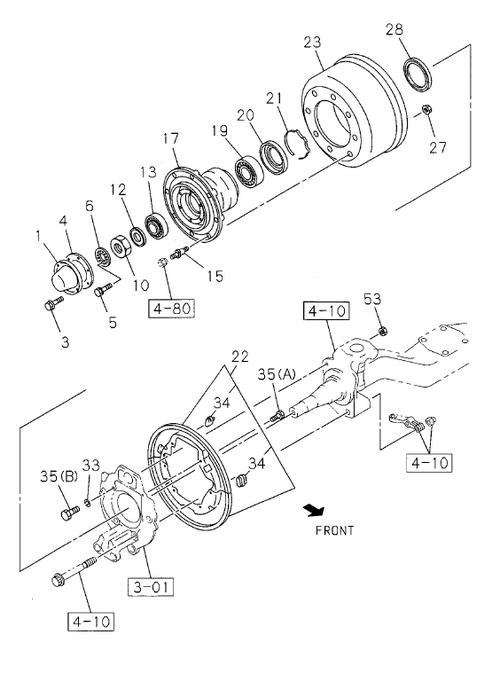

4-11 | FRONT HUB AND DRUM OR ROTOR
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 3 | I0-28050 812-A | BOLT; HUB CAP,FRT WHEEL | 12 | 1108- | A | M8X12 FLANGE | ||
| 35 | I1-47159 187-0 | BOLT; DRUM COVER | 12 | 1108- | A | (A) M10X12 | ||
| 66 | I1-87412 283-0 | PIN SET; WHEEL,FRT | 8 | 1108- | A | |||
| 23 | I1-42315 355-A | DRUM; BRK,FRT | 2 | 1403- | AB | |||
| 19 | I1-09812 231-A | BEARING; HUB INNER,FRT AXLE | 2 | 1108- | A | (IADG) | ||
| 15 | I1-42332 109-1 | PIN; WHEEL,FRT AXLE | 8 | 1108- | A | M2 4X37.5 LH THREAD,M22X57.5 RH THREAD | ||
| 22 | I1-47151 458-2 | COVER SET; FRT BRK DRUM | 2 | 1312-1402 | A | |||
| 17 | I1-42312 128-A | HUB; FRT AXLE | 2 | 1108- | A | |||
| 33 | I0-91510 816-0 | WASHER; LK,DRUM COVER | 4 | 1108- | A | ID=16.2 | ||
| 20 | I1-42319 039-0 | COVER; HUB BRG INNER | 2 | 1108- | A | |||
| 22 | I1-47151 458-2 | COVER SET; FRT BRK DRUM | 2 | 1403- | AB | |||
| 17 | I1-42312 128-A | HUB; FRT AXLE | 2 | 1108- | A | |||
| 35 | I1-09044 120-0 | BOLT; DRUM COVER | 4 | 1108- | A | (B) M16X52 | ||
| 1 | I9-42313 123-3 | CAP; HUB,FRT AXLE | 2 | 1108- | A | OD=156 | ||
| 5 | I8-98200 943-0 | BOLT; LK WASHER | 4 | 1111- | A | M6X16 FLANGE | ||
| 15 | I1-42331 109-1 | PIN; WHEEL,FRT AXLE | 8 | 1108- | A | M24X37.5,M22X5 7.5 RH THREAD | ||
| 17 | I1-42312 128-A | HUB; FRT AXLE | 2 | 1403- | AB | |||
| 21 | I1-09587 017-0 | RING; SNAP,HUB | 2 | 1108- | A | |||
| 5 | I8-98200 943-0 | BOLT; LK WASHER | 4 | 1312-1402 | A | M6X16 FLANGE | ||
| 12 | I8-98156 755-0 | WASHER; LK,FRT HUB BRG | 2 | 1108- | A | ID=48 | ||
| 10 | I1-09840 012-5 | NUT; FRT HUB BRG | 2 | 1108- | A | M4 8 | ||
| 22 | I1-47151 458-2 | COVER SET; FRT BRK DRUM | 2 | 1108- | A | |||
| 66 | I1-87412 284-0 | PIN SET; WHEEL,FRT | 8 | 1108- | A | |||
| 5 | I8-98200 943-0 | BOLT; LK WASHER | 4 | 1108-1110 | A | M6X16 FLANGE | ||
| 66 | I1-87412 284-0 | PIN SET; WHEEL,FRT | 8 | 1108- | A | |||
| 5 | I8-98200 943-0 | BOLT; LK WASHER | 4 | 1403- | AB | M6X16 FLANGE | ||
| 19 | I1-09812 231-0 | BEARING; HUB INNER,FRT AXLE | 2 | 1108- | A | |||
| 13 | I1-09812 234-0 | BEARING; HUB OUTER,FRT AXLE | 2 | 1108- | A | |||
| 4 | I1-42319 185-2 | GASKET; HUB CAP,FRT WHEEL | 2 | 1108- | A | |||
| 28 | I1-09625 041-0 | SEAL; OIL,FRT HUB | 2 | 1108- | A | OD=140 | ||
| 6 | I8-98084 561-0 | WASHER; LK,FRT HUB | 2 | 1108- | A | ID=48 | ||
| 34 | I1-09333 151-0 | COVER; CHECK HOLE,DRUM COVER | 4 | 1108- | A | |||
| 23 | I1-42315 355-A | DRUM; BRK,FRT | 2 | 1108- | A | |||
| 17 | I1-42312 128-A | HUB; FRT AXLE | 2 | 1312-1402 | A | |||
| 22 | I1-47151 458-2 | COVER SET; FRT BRK DRUM | 2 | 1108- | A | |||
| 23 | I1-42315 355-A | DRUM; BRK,FRT | 2 | 1108- | A | |||
| 13 | I1-09812 234-A | BEARING; HUB OUTER,FRT AXLE | 2 | 1108- | A | (IADG) | ||
| 53 | I0-91110 516-0 | NUT; DRUM COVER | 4 | 1108- | A | M16 | ||
| 28 | I6-09625 041-0 | SEAL; OIL FRT HUB | 2 | 1112- | A | OD=140 | ||
| 23 | I1-42315 355-A | DRUM; BRK,FRT | 2 | 1312-1402 | A | |||
| 66 | I1-87412 283-0 | PIN SET; WHEEL,FRT | 8 | 1108- | A | |||
| 27 | I1-09440 065-0 | NUT; WHEEL PIN,FRT AXLE | 16 | 1108- | A | M2 2 FLANGE | ||
| 5 | I8-98200 943-0 | BOLT; LK WASHER | 4 | 1111- | A | M6X16 FLANGE |
