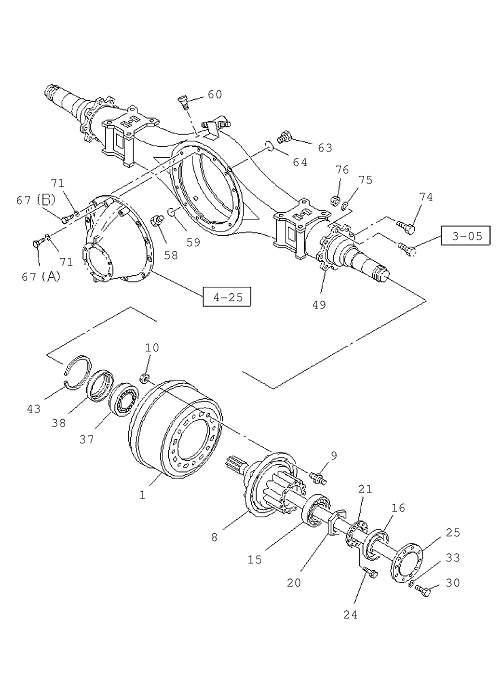

4-20 | REAR AXLE CASE AND SHAFT
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 64 | I1-09623 179-0 | GASKET; OIL FILLER,AXLE CASE | 1 | 1108- | A | ID=26.8 | ||
| 63 | I1-09604 022-0 | PLUG; OIL FILLER,AXLE CASE | 1 | 1108- | A | M2 4X17 FLANGE | ||
| 64 | I1-09623 179-0 | GASKET; OIL FILLER,AXLE CASE | 1 | 1108- | A | ID=26.8 | ||
| 38 | I1-09625 350-0 | SEAL; OIL,RR HUB,INNER | 2 | 1108- | A | TKK | ||
| 15 | I1-09812 232-0 | BEARING; HUB OUTER,RR AXLE | 2 | 1108- | A | |||
| 9 | I1-42332 110-2 | PIN; WHEEL,RR AXLE | 8 | 1108- | A | M20X34.5 LH THREAD,M22X51.5 RH THREAD | ||
| 1 | I1-42315 194-A | DRUM; BRK,RR | 2 | 1403- | AB | |||
| 8 | I1-42311 104-A | HUB; RR AXLE | 2 | 1108- | A | |||
| 43 | I1-09587 057-0 | RING; SNAP,HUB SEAL,RR AXLE | 2 | 1108- | A | OD=179 | ||
| 9 | I1-42331 110-2 | PIN; WHEEL,RR AXLE | 8 | 1108- | A | M20X34.5,M22X51.5 RH THREAD | ||
| 8 | I1-42311 104-A | HUB; RR AXLE | 2 | 1403- | AB | |||
| 187 | I1-87412 290-0 | PIN SET; WHEEL,RR | 8 | 1108- | A | |||
| 10 | I1-09440 065-0 | NUT; WHEEL PIN,RR AXLE | 16 | 1108- | A | M2 2 FLANGE | ||
| 67 | I0-10956 670-0 | BOLT; FINAL DRIVE SETTING | 4 | 1108- | A | (A) M16X70 | ||
| 37 | I1-09812 233-0 | BEARING; HUB INNER,RR AXLE | 2 | 1108- | A | |||
| 37 | I1-09812 233-A | BEARING; HUB INNER,RR AXLE | 2 | 1108- | A | (IADG) | ||
| 59 | I1-09623 179-0 | GASKET; DRAIN PLUG | 1 | 1108- | A | ID=26.8 | ||
| 76 | I7-05014 012-A | NUT; RR BRK ASM SETTING | 16 | 1108- | A | M14 | ||
| 49 | I8-98190 624-0 | CASE; RR AXLE | 1 | 1108- | A | |||
| 76 | I7-05014 012-A | NUT; RR BRK ASM SETTING | 16 | 1312-1402 | A | M14 | ||
| 15 | I1-09812 232-A | BEARING; HUB OUTER,RR AXLE | 2 | 1108- | A | (IADG) | ||
| 16 | I6-09625 444-0 | SEAL; OIL RR HUB OUTER | 2 | 1112- | A | |||
| 24 | I0-28650 616-0 | BOLT; LK WASHER | 6 | 1108- | A | M6X16 FLANGE | ||
| 76 | I7-05014 012-A | NUT; RR BRK ASM SETTING | 16 | 1403- | AB | M14 | ||
| 187 | I1-87412 289-0 | PIN SET; WHEEL,RR | 8 | 1108- | A | |||
| 187 | I1-87412 289-0 | PIN SET; WHEEL,RR | 8 | 1108- | A | |||
| 25 | I8-98146 164-0 | SHAFT; AXLE,RR | 2 | 1108- | A | L=1050 | ||
| 64 | I1-09623 179-0 | GASKET; OIL FILLER,AXLE CASE | 1 | 1403- | AB | ID=26.8 | ||
| 59 | I1-09623 179-0 | GASKET; DRAIN PLUG | 1 | 1312-1402 | A | ID=26.8 | ||
| 1 | I1-42315 194-A | DRUM; BRK,RR | 2 | 1108- | A | |||
| 38 | I1-09625 350-0 | SEAL; OIL,RR HUB,INNER | 2 | 1108- | A | NOK | ||
| 8 | I1-42311 104-A | HUB; RR AXLE | 2 | 1312-1402 | A | |||
| 16 | I1-09625 444-1 | SEAL; OIL,RR HUB,OUTER | 2 | 1108- | A | TKK | ||
| 59 | I1-09623 179-0 | GASKET; DRAIN PLUG | 1 | 1403- | AB | ID=26.8 | ||
| 8 | I1-42311 104-A | HUB; RR AXLE | 2 | 1108- | A | |||
| 21 | I9-09854 112-0 | WASHER; LK,BRG NUT | 2 | 1108- | A | ID=8 8 | ||
| 1 | I1-42315 194-A | DRUM; BRK,RR | 2 | 1312-1402 | A | |||
| 33 | I0-91510 814-0 | WASHER; AXLE SHAFT | 20 | 1108- | A | ID=14.2 | ||
| 1 | I1-42315 194-A | DRUM; BRK,RR | 2 | 1108- | A | |||
| 187 | I1-87412 290-0 | PIN SET; WHEEL,RR | 8 | 1108- | A | |||
| 49 | I8-98251 936-0 | CASE; RR AXLE | 1 | 1401- | A | FVR-HP | ||
| 60 | I1-09893 016-0 | BREATHER; RR AXLE CASE | 1 | 1108- | A | |||
| 30 | I1-09000 582-0 | BOLT; HUB TO AXLE SHAFT | 20 | 1108- | A | M14X58 | ||
| 76 | I7-05014 012-A | NUT; RR BRK ASM SETTING | 16 | 1108- | A | M14 | ||
| 64 | I1-09623 179-0 | GASKET; OIL FILLER,AXLE CASE | 1 | 1312-1402 | A | ID=26.8 | ||
| 20 | I9-09843 062-2 | NUT; BRG,RR HUB | 2 | 1108- | A | M8 8 | ||
| 58 | I1-09604 023-0 | PLUG; DRAIN,AXLE CASE | 1 | 1108- | A | M2 4X17 FLANGE | ||
| 38 | I1-09625 350-0 | SEAL; OIL,RR HUB,INNER | 2 | 1108- | A | NOK | ||
| 75 | I0-91510 814-0 | WASHER; LK,RR BRK ASM SETTING | 16 | 1108- | A | ID=14.2 | ||
| 74 | I1-09040 066-0 | BOLT; RR BRK ASM SETTING | 14 | 1108- | A | M14X50 | ||
| 38 | I6-09625 350-0 | SEAL; OIL, RR HUB, INNER | 2 | 1112- | A | |||
| 71 | I0-91510 816-0 | WASHER; LK,FINAL DRIVE SETTING | 12 | 1108- | A | ID=16.2 | ||
| 67 | I0-20951 640-0 | BOLT; FINAL DRIVE SETTING | 8 | 1108- | A | (B) M16X40 | ||
| 59 | I1-09623 179-0 | GASKET; DRAIN PLUG | 1 | 1108- | A | ID=26.8 |
