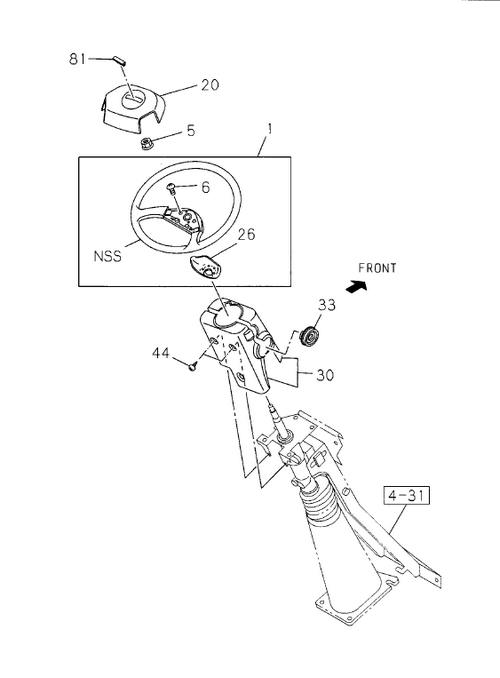

4-30 | STEERING WHEEL AND COWL
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 30 | I8-97405 356-5 | COWL; STEERING | 1 | 1108- | A | DARK GRAY | ||
| 1 | I8-97412 555-1 | WHEEL; STRG | 1 | 1108- | A | DARK GRAY | ||
| 5 | I0-91111 514-0 | NUT; STRG WHEEL TO SHAFT | 1 | 1108- | A | M14 | ||
| 81 | I8-97405 986-0 | EMBLEM; STRG WHEEL | 1 | 1108- | A | DARK GRAY | ||
| 26 | I8-97409 275-2 | COVER; STRG WHEEL,LWR | 1 | 1108- | A | DARK GRAY | ||
| 1 | I8-97412 555-1 | WHEEL; STRG | 1 | 1403- | AB | GVR-TH, FVR HP, FVR | ||
| 6 | I8-97167 588-0 | SCREW; HORN SPR CONTACT | 4 | 1108- | A | M4X12 | ||
| 44 | I0-38050 512-0 | SCREW; STRG COWL | 3 | 1108- | A | M5X12 | ||
| 33 | I8-97409 495-0 | COVER; STRG COWL | 1 | 1108- | A | DARK GRAY | ||
| 106 | I8-98231 397-0 | BOLT; TORX | 2 | 1104- | A | |||
| 20 | I8-97405 985-1 | SHROUD; PAD,STRG WHEEL | 1 | 1108- | A | DARK GRAY |
