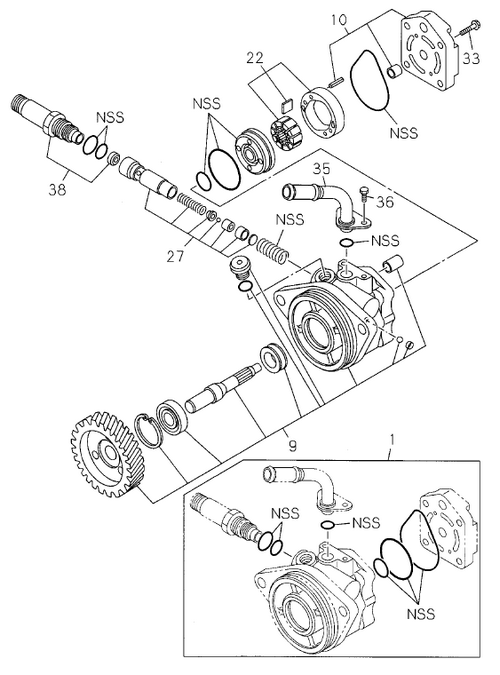

4-42 | POWER STEERING OIL PUMP
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 35 | I8-98077 482-0 | PIPE; HOSE CONN,OIL PUMP | 1 | |||||
| 36 | I8-98028 783-0 | BOLT; CONN,PIPE | 2 | |||||
| 36 | I8-98028 783-0 | BOLT; CONN,PIPE | 2 | A | ||||
| 10 | I8-98077 477-0 | BODY ASM; RR,OIL PUMP | 1 | |||||
| 36 | I8-98028 783-0 | BOLT; CONN,PIPE | 2 | |||||
| 38 | I8-98077 481-0 | CONNECTOR; OIL PUMP | 1 | |||||
| 22 | I8-98077 476-0 | CARTRIDGE ASM; OIL PUMP | 1 | |||||
| 36 | I8-98028 783-0 | BOLT; CONN,PIPE | 2 | A | ||||
| 1 | I8-98077 484-0 | REPAIR KIT; OIL PUMP | 1 | |||||
| 27 | I8-98077 479-0 | VALVE ASM; OIL PUMP | 1 | |||||
| 9 | I8-98077 485-0 | BODY ASM; FRT,OIL PUMP | 1 | |||||
| 33 | I8-98077 478-0 | BOLT; COVER | 4 |
