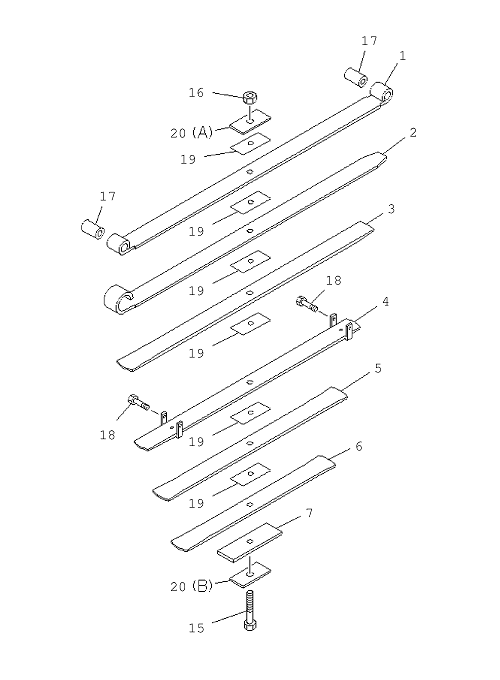

4-55 | FRONT LEAF SPRING
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I7-65000 329-A | SPRING; LEAF,NO 1,FRT | 1 | 1108- | A | |||
| 17 | I1-51351 009-A | BUSHING LEAF SPR FRT | 2 | 1108- | A | OD=38 | ||
| 19 | I1-51177 071-A | SPACER LEAF SPRING FRT | 12 | 1108- | A | T=1 | ||
| 16 | I1-09400 054-A | NUT; CENTER BOLT,LEAF SPR,FRT | 1 | 1108- | A | M16 | ||
| 20 | I1-51177 161-A | SEAT; LEAF SPR,FRT | 1 | 1108- | (B) T=10 | |||
| 18 | I1-09000 328-A | BOLT; CLIP,LEAF SPR,FRT | 2 | 1108- | A | M10x99 | ||
| 15 | I1-51156 298-A | BOLT; CENTER,LEAF SPR,FRT | 1 | 1108- | A | L=145 | ||
| 5 | I7-65000 333-A | SPRING; LEAF,NO 5,FRT | 1 | 1108- | A | |||
| 19 | I7-65001 323-A | SPACER; LEAF SPRING,FRT | 6 | 1108- | T=1 | |||
| 7 | I7-65000 335-A | SPRING; LEAF,NO 7,FRT | 1 | 1108- | A | |||
| 4 | I7-65000 332-A | SPRING; LEAF,NO 4,FRT | 1 | 1108- | A | |||
| 3 | I7-65000 331-A | SPRING; LEAF,NO 3,FRT | 1 | 1108- | A | |||
| 2 | I7-65000 330-A | SPRING; LEAF,NO 2,FRT | 1 | 1108- | A | |||
| 20 | I1-51177 178-A | SEAT; LEAF SPR,FRT | 1 | 1108- | (A) T=8 | |||
| 6 | I7-65000 334-A | SPRING; LEAF,NO 6,FRT | 1 | 1108- | A |
