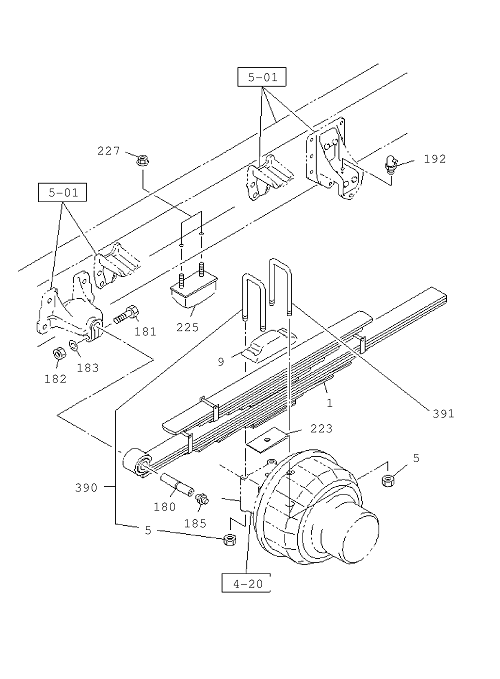

| 9 |
I1-51372 030-0 |
|
PAD; U BOLT,RR SPR |
2 |
1108- |
|
A |
|
| 227 |
I0-91180 212-0 |
|
NUT; CUSHION RUBBER |
4 |
1108- |
|
A |
M12 FLANGE |
| 185 |
I0-90301 410-0 |
|
NIPPLE; GREASE,PIN,RR SPR |
2 |
1108- |
|
A |
PT1/8 STRAIGHT |
| 181 |
I0-10856 480-0 |
|
BOLT; SPR & SHACKLE |
2 |
1108- |
|
A |
M14X80 |
| 225 |
I1-53366 045-A |
|
RUBBER CHUSION ASM; RR SPR |
2 |
1403- |
|
AB |
|
| 223 |
I8-98091 873-0 |
|
SPACER; U BOLT,RR SPR |
2 |
1108- |
|
A |
WHEEL BASE 4200MM(42W) |
| 183 |
I0-91510 514-0 |
|
WASHER; LK,PIN,RR SPR |
2 |
1108- |
|
A |
ID=14.2 |
| 180 |
I1-51361 026-0 |
|
PIN; RR SPR |
2 |
1108- |
|
A |
|
| 1 |
I7-66020 321-A |
|
SPRING ASM; LEAF, RR |
2 |
1108- |
|
A |
|
| 192 |
I0-90301 510-0 |
|
NIPPLE; GREASE,SHACKLE PIN |
2 |
1108- |
|
A |
PT1/8 ELBOW 67.5fi |
| 225 |
I1-53366 045-A |
|
RUBBER; CUSHION,RR SPR |
2 |
1108- |
|
A |
|
| 390 |
I1-87870 036-4 |
|
U-BOLT SET; RR SPRING |
4 |
1108-1110 |
|
A |
L=490 |
| 180 |
I6-51361 026-0 |
|
PIN; RR SPR |
2 |
1108- |
|
A |
|
| 390 |
I1-87870 501-0 |
|
U-BOLT SET; RR SPRING |
4 |
1111- |
|
A |
L=530 |
| 1 |
I8-97695 244-A |
|
SPRING ASM; LEAF, RR |
2 |
1512- |
|
A |
GVR-TH |
| 223 |
I1-51377 371-1 |
|
SPACER; U BOLT,RR SPR |
2 |
1108- |
|
A |
WHEEL BASE 50 00MM(5 0W),WHEEL BASE 6000MM(60W) |
| 182 |
I7-05014 012-A |
|
NUT; PIN,RR SPR |
2 |
1108- |
|
A |
M14 |
| 5 |
I0-91112 824-0 |
|
NUT; U-BOLT,RR SPR |
8 |
1108- |
|
A |
M2 4 |
