Isuzu | Part Center System

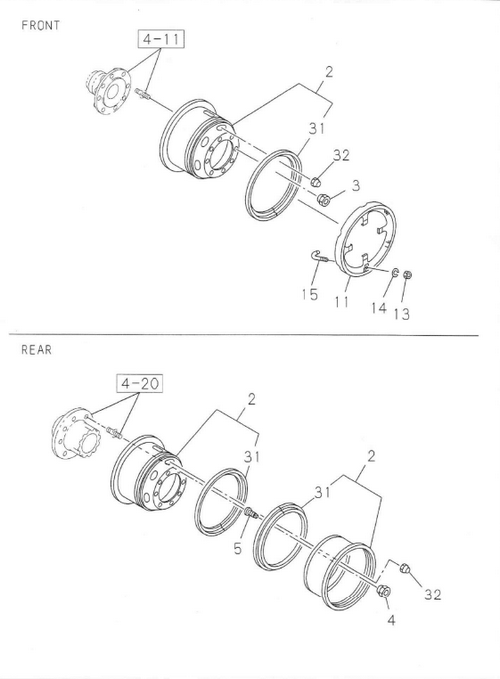

4-80 | ROAD WHEEL

GIGA

GIGA FVR

Key	PART NO	DESCRIPTION	QTY	APP DATE	MODEL	REMARKS

31	I1-42355 003-A	RING; SIDE,DISC WHEEL	2	1108-	A	FRONT
31	I1-42355 003-A	RING; SIDE,DISC WHEEL	2	1312-1402	A	FRONT
14	I0-91510 810-0	WASHER; LK,STEP DISC	6	1108-	A	ID=10.2 IDN
31	I1-42355 003-A	RING; SIDE,DISC WHEEL	1	1108-	A	SPARE TIRE & DISC WHEEL RR TIRE SPARE
32	I1-42374 001-0	CAP; VALVE	7	1108-	A	SPARE TIRE & DISC WHEEL RR TIRE
15	I9-43139 023-1	BOLT; STEP DISC	6	1108-	A	L=44
4	I8-97359 810-0	NUT; WHEEL,RR AXLE	8	1108-	A	M3 0 LH THREAD
2	I8-97695 432-A	WHEEL; DISC	2	1108-	A	FRONT
5	I8-97359 806-0	NUT; WHEEL,INNER,RR AXLE	8	1108-	A	OUTER M3 0,INNER M2 0 LH THREAD
31	I1-42355 003-A	RING; SIDE,DISC WHEEL	4	1312-1402	A	REAR
31	I1-42355 003-A	RING; SIDE,DISC WHEEL	4	1108-	A	REAR
31	I1-42355 003-A	RING; SIDE,DISC WHEEL	4	1108-	A	REAR
31	I1-42355 003-A	RING; SIDE,DISC WHEEL	4	1403-	AB	REAR
31	I1-42355 003-A	RING; SIDE,DISC WHEEL	1	1312-1402	A	SPARE TIRE & DISC WHEEL RR TIRE ONE(R46) SPARE
11	I1-43139 002-A	STEP; DISC WHEEL SIDE	2	1108-	A
11	I1-43139 002-A	STEP; DISC WHEEL SIDE	2	1108-	A
31	I1-42355 003-A	RING; SIDE,DISC WHEEL	1	1108-	A	SPARE TIRE & DISC WHEEL RR TIRE SPARE
3	I1-42333 022-3	NUT; WHEEL,FRT AXLE	8	1108-	A	M2 4
13	I0-91110 510-0	NUT; STEP DISC	6	1108-	A	M10
3	I1-42334 022-3	NUT; WHEEL,FRT AXLE	8	1108-	A	M2 4 LH THREAD
2	I8-97695 432-A	WHEEL; DISC	1	1108-	A	SPARE TIRE & DISC WHEEL RR TIRE SPARE
2	I8-97695 432-A	WHEEL; DISC	4	1108-	A	REAR
31	I1-42355 003-A	RING; SIDE,DISC WHEEL	2	1403-	AB	FRONT
31	I1-42355 003-A	RING; SIDE,DISC WHEEL	1	1403-	AB	SPARE TIRE & DISC WHEEL RR TIRE ONE(R46) SPARE
5	I8-97359 805-0	NUT; WHEEL,INNER,RR AXLE	8	1108-	A	OUTER M3 0,INNER M2 0 RH THREAD
4	I8-97359 809-0	NUT; WHEEL,RR AXLE	8	1108-	A	M3 0 RH THREAD
31	I1-42355 003-A	RING; SIDE,DISC WHEEL	2	1108-	A	FRONT
