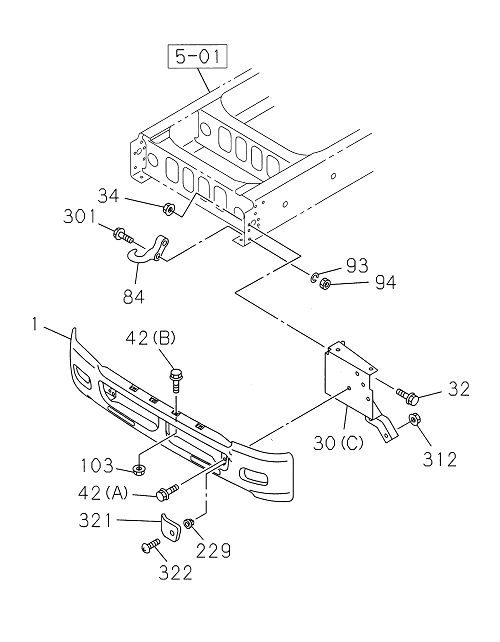

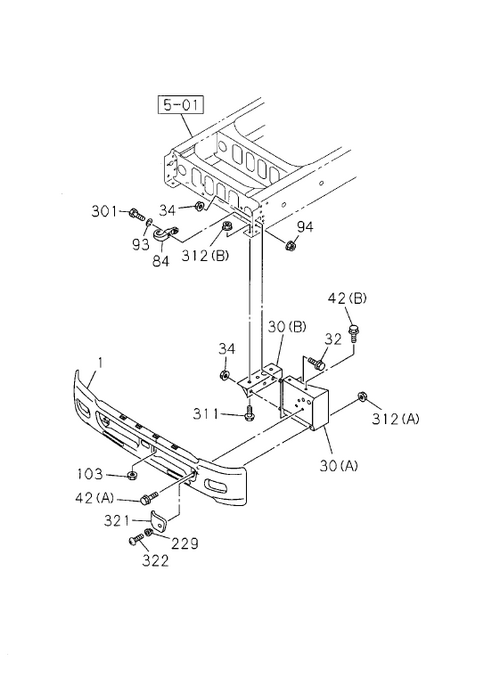

6-01 | FRONT BUMPER
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 301 | I0-10861 670-0 | BOLT; HOOK TO FRAME | 2 | 1108- | A | M16X70 | ||
| 301 | I0-10961 670-0 | BOLT; HOOK TO FRAME | 1 | 1403- | B | GVR-TH (M16X70) | ||
| 30 | I8-98179 463-A | BRACKET; FRT BUMPER | 1 | 1108- | A | (B) IDN | ||
| 312 | I7-05110 010-A | NUT; BRKT | 2 | 1108- | A | (A) M10 FLANGE | ||
| 30 | I8-98179 463-A | BRACKET; FRT BUMPER | 1 | 1108- | A | (B) IDN | ||
| 311 | I0-28851 445-0 | BOLT; BRKT | 6 | 1108- | A | M14X45 FLANGE | ||
| 32 | I0-28651 240-0 | BOLT; BRKT,BUMPER | 2 | 1108- | A | M12X40 FLANGE | ||
| 94 | I0-91110 516-0 | NUT; HOOK | 2 | 1108- | A | M16 | ||
| 30 | I8-98205 745-A | BRACKET; FRT BUMPER | 1 | 1403- | B | GVR-TH | ||
| 1 | I8-97470 840-0 | BUMPER ASM; FRT | 1 | 1301- | A | WHITE | ||
| 229 | I5-09983 007-0 | GROMMET | 2 | 1108- | A | |||
| 30 | I8-98179 462-A | BRACKET; FRT BUMPER | 1 | 1108- | A | (B) IDN | ||
| 30 | I8-98205 744-0 | BRACKET; FRT BUMPER | 1 | 1312- | B | (C) | ||
| 30 | I8-98177 903-A | BRACKET; FRT BUMPER | 1 | 1108- | A | (A) IDN | ||
| 321 | I8-97616 290-1 | COVER; BUMPER FRT SIDE | 1 | 1108- | A | |||
| 321 | I8-97616 291-1 | COVER; BUMPER FRT SIDE | 1 | 1108- | A | |||
| 30 | I8-98179 462-A | BRACKET; FRT BUMPER | 1 | 1108- | A | (B) IDN | ||
| 312 | I0-91180 214-0 | NUT; BRKT | 6 | 1108- | A | (B) M14 FLANGE | ||
| 30 | I8-98177 903-A | BRACKET; FRT BUMPER | 1 | 1108- | A | (A) IDN | ||
| 93 | I0-91510 816-0 | WASHER; LK,HOOK | 2 | 1108- | A | ID=16.2 | ||
| 1 | I8-97470 840-0 | BUMPER ASM; FRT | 1 | 1108- | A | WHITE | ||
| 103 | I0-91180 106-0 | NUT; BUMPER STEP | 4 | 1108- | A | M6 FLANGE | ||
| 42 | I8-98098 459-0 | BOLT; BUMPER | 4 | 1108- | A | (B) M6X16 FLANGE | ||
| 30 | I8-98177 902-A | BRACKET; FRT BUMPER | 1 | 1108- | A | (A) IDN | ||
| 312 | I7-05110 010-A | NUT; BRKT | 2 | 1108- | A | (A) M10 FLANGE | ||
| 322 | I0-72180 516-0 | SCREW; COVER FIX | 2 | 1108- | A | M5X16 TAPPING | ||
| 84 | I1-57181 027-A | HOOK | 1 | 1108- | A | |||
| 84 | I1-57181 027-A | HOOK | 1 | 1108- | A | |||
| 42 | I8-94324 205-0 | BOLT; BUMPER | 6 | 1108- | A | (A) M10X30 | ||
| 34 | I0-91180 212-0 | NUT; BRKT,BUMPER | 8 | 1108- | A | M12 FLANGE | ||
| 30 | I8-98205 744-0 | BRACKET; FRT BUMPER | 1 | 1403- | B | GVR-TH | ||
| 30 | I8-98177 902-A | BRACKET; FRT BUMPER | 1 | 1108- | A | (A) IDN | ||
| 30 | I8-98205 745-A | BRACKET; FRT BUMPER | 1 | 1312- | B | (C) |
