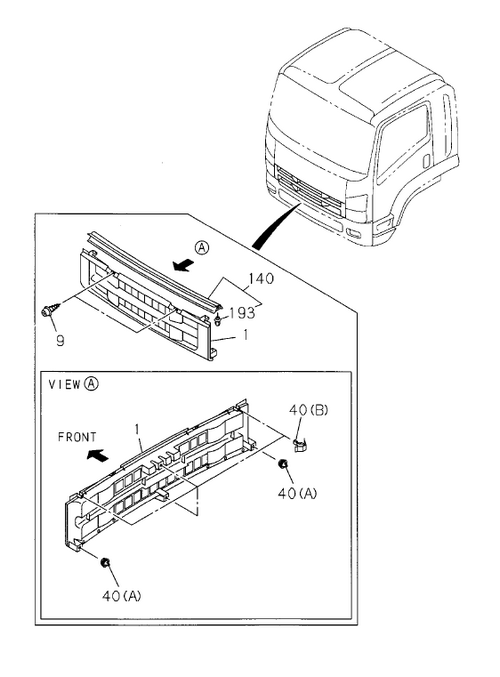

6-03 | RADIATOR GRILLE
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 193 | I8-98027 457-0 | CLIP; SEAL | 13 | 1108- | A | NATURAL | ||
| 1 | I6-98040 997-1 | GRILLE; RAD | 1 | 1108- | A | (IADG) | ||
| 9 | I0-74160 516-0 | SCREW; RAD GRILLE | 2 | 1108- | A | M5X16 TAPPING W/PL WASHER IDN | ||
| 40 | I8-97581 651-2 | CLIP; RAD GRILLE | 2 | 1108- | A | (A) | ||
| 1 | I8-98040 997-6 | GRILLE; RAD | 1 | 1108- | A | |||
| 140 | I8-98060 340-0 | SEAL; RAD GRILLE | 1 | 1108- | A | |||
| 40 | I8-98025 698-0 | CLIP; RAD GRILLE | 4 | 1108- | A | (B) |
