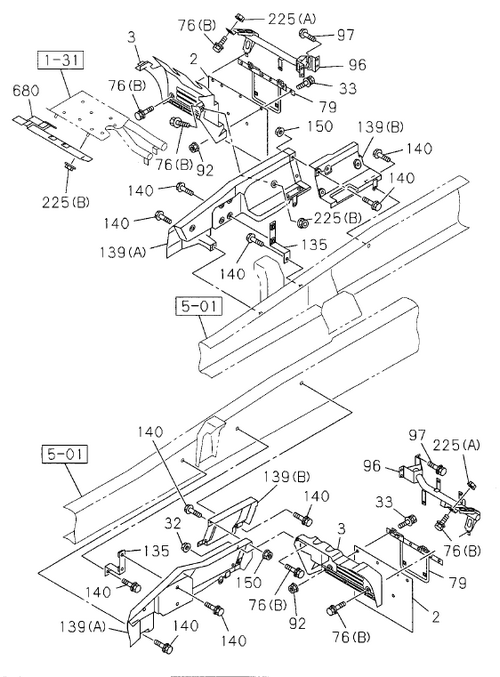

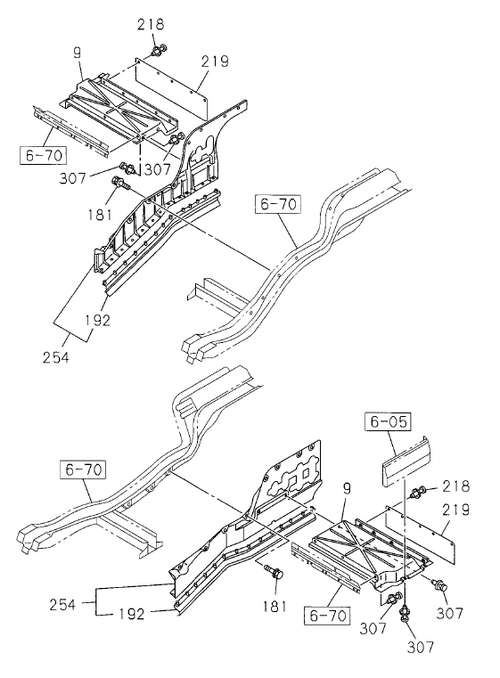

6-47 | MUD GUARD AND INSULATOR
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 79 | I8-98102 105-A | RETAINER; MUD COVER | 1 | 1403- | AB | |||
| 192 | I8-98041 158-1 | SEAL; MUD COVER | 1 | 1108- | A | |||
| 3 | I8-98219 767-0 | GUARD; MUD,RR | 1 | 1108- | A | |||
| 96 | I1-79931 540-A | STAY; MUD GUARD | 1 | 1312-1402 | A | |||
| 79 | I8-98102 106-A | RETAINER; MUD COVER | 1 | 1403- | AB | |||
| 225 | I0-91180 108-0 | NUT; MUD GUARD | 2 | 1108- | A | (A) M8 FLANGE | ||
| 79 | I8-98102 106-A | RETAINER; MUD COVER | 1 | 1312-1402 | A | |||
| 254 | I8-98039 925-2 | COVER; MUD,VALANCE | 1 | 1108- | A | |||
| 79 | I8-98102 106-A | RETAINER; MUD COVER | 1 | 1108- | A | |||
| 32 | I8-97329 625-0 | NUT; MUD GUARD | 2 | 1108- | A | M8 W/DISHED WASHER | ||
| 218 | I1-09987 248-1 | FASTENER; RUBBER | 10 | 1108- | A | D8X13.5 | ||
| 96 | I1-79931 540-A | STAY; MUD GUARD | 1 | 1108- | A | |||
| 79 | I8-98102 105-A | RETAINER; MUD COVER | 1 | 1312-1402 | A | |||
| 181 | I8-98059 720-0 | BOLT; COVER,SIDE | 16 | 1108- | A | M8X24.5 W/LK&PL WASHER | ||
| 76 | I1-09030 093-0 | BOLT; MUD GUARD | 8 | 1108- | A | (B) M8X25 W/LK&PL WASHER | ||
| 192 | I8-98041 159-2 | SEAL; MUD COVER | 1 | 1108- | A | |||
| 219 | I8-98041 149-1 | FLAP; MUD GUARD | 2 | 1108- | A | |||
| 3 | I8-98219 767-0 | GUARD; MUD,RR | 1 | 1302- | A | |||
| 9 | I8-98040 119-A | GUARD; SPLASH,WHEEL HOUSE | 1 | 1108- | A | |||
| 9 | I8-98040 120-A | GUARD; SPLASH,WHEEL HOUSE | 1 | 1108- | A | |||
| 96 | I1-79931 519-A | STAY; MUD GUARD | 1 | 1108- | A | |||
| 84 | I8-94364 371-0 | RIVET; MUD GUARD | 2 | 1312-1402 | A | |||
| 680 | I8-98123 402-0 | GUARD; MUD,UPPER | 1 | 1108- | A | |||
| 135 | I1-53457 191-0 | BRACKET; SIDE PANEL | 2 | 1108- | A | |||
| 96 | I1-79931 519-A | STAY; MUD GUARD | 1 | 1312-1402 | A | |||
| 84 | I8-94364 371-0 | RIVET; MUD GUARD | 2 | 1403- | AB | |||
| 79 | I8-98102 105-A | RETAINER; MUD COVER | 1 | 1108- | A | |||
| 96 | I1-79931 519-A | STAY; MUD GUARD | 1 | 1108- | A | |||
| 139 | I1-53194 591-1 | PANEL; SIDE | 1 | 1108- | A | (B) | ||
| 2 | I1-79931 512-1 | COVER; MUD,TIRE RR | 2 | 1108- | A | |||
| 96 | I1-79931 540-A | STAY; MUD GUARD | 1 | 1108- | A | |||
| 3 | I8-98196 109-0 | GUARD; MUD,RR | 1 | 1212- | A | |||
| 3 | I8-98196 109-0 | GUARD; MUD,RR | 1 | 1108- | A | |||
| 79 | I8-98102 106-A | RETAINER; MUD COVER | 1 | 1108- | A | |||
| 33 | I1-09980 495-0 | BOLT; MUD COVER | 12 | 1108- | A | M6X20 W/LK&PL WASHER | ||
| 23 | I1-09987 248-1 | FASTENER; MUD COVER | 4 | 1108- | A | D8X13.5 | ||
| 97 | I0-28651 030-0 | BOLT; STAY TO FRAME | 8 | 1108- | A | M10X3 0 FLANGE | ||
| 96 | I1-79931 540-A | STAY; MUD GUARD | 1 | 1403- | AB | |||
| 92 | I0-91180 106-0 | NUT; MUD COVER | 8 | 1108- | A | M6 FLANGE | ||
| 140 | I1-09030 095-0 | BOLT; SIDE PANEL | 6 | 1108- | A | M8X30 W/LK&PL WASHER | ||
| 254 | I8-98039 926-1 | COVER; MUD,VALANCE | 1 | 1108- | A | |||
| 79 | I8-98102 105-A | RETAINER; MUD COVER | 1 | 1108- | A | |||
| 307 | I1-09987 248-1 | RETAINER | 14 | 1108- | A | D8X13.5 | ||
| 96 | I1-79931 519-A | STAY; MUD GUARD | 1 | 1403- | AB | |||
| 140 | I1-09030 095-0 | BOLT; SIDE PANEL | 10 | 1108- | A | M8X30 W/LK&PL WASHER | ||
| 139 | I1-53194 619-5 | PANEL; SIDE | 1 | 1108- | A | (A) | ||
| 76 | I8-94331 747-1 | BOLT; MUD GUARD | 8 | 1108- | A | (A) M8X25 W/LK&PL WASHER | ||
| 139 | I1-53194 590-2 | PANEL; SIDE | 1 | 1108- | A | (B) | ||
| 306 | I8-98196 125-0 | BRACKET; MUD GUARD | 1 | 1212- | A | |||
| 139 | I1-53194 620-6 | PANEL; SIDE | 1 | 1108- | A | (A) | ||
| 1 | I8-98039 850-1 | GUARD; MUD,FRT | 1 | 1108- | A | |||
| 150 | I8-97329 625-0 | NUT; SIDE PANEL | 4 | 1108- | A | M8 W/DISHED WASHER | ||
| 84 | I8-94364 371-0 | RIVET; MUD GUARD | 2 | 1212- | A | |||
| 225 | I8-97329 625-0 | NUT; MUD GUARD | 2 | 1108- | A | (B) M8 W/DISHED WASHER | ||
| 1 | I8-98039 851-1 | GUARD; MUD,FRT | 1 | 1108- | A |
