PORTAL SPAREPART

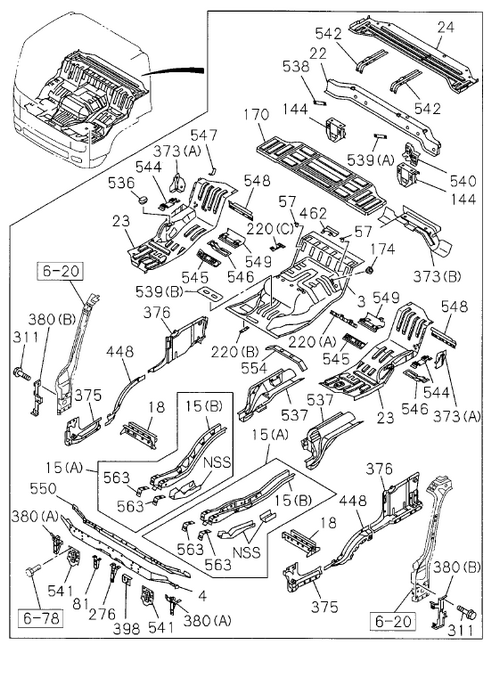

6-70 | FLOOR PANEL

Partial Engine

GIGA

GIGA FVR

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
544 I8-97584 363-1 BRACKET; DUMP CONT 1 1108- R A
22 I8-97584 431-5 FRAME; FLOOR REAR 1 1108- A
380 I8-97584 460-2 BRACKET; HEAD LAMP 1 1108- L A (A)
220 I8-97588 840-4 PATCH 1 1108- A (A)
144 I8-97871 160-0 BRACKET; MTG,RR 1 1108- L A
546 I8-97584 427-0 REINFORCEMENT; FLOOR SIDE 2 1108- A
536 I8-97612 074-1 PLUG; CABLE,PTO 1 1108- A
448 I8-97589 552-2 CLOSING; ROCKER 1 1108- L A
4 I8-98073 693-1 FRAME; FLOOR,FRT 1 1108- A
380 I8-97589 506-2 BRACKET; HEAD LAMP 1 1108- R A (A)
541 I8-98067 903-0 REINFORCEMENT; MTG,FRT 2 1108- A
23 I8-98073 691-1 PANEL; FLOOR,SIDE 1 1108- R A
542 I8-97589 685-1 BOLSTER; BED PAN 2 1108- A
538 I8-97610 207-2 REINFORCEMENT ASM; AIR INT DUCT 1 1108- A
547 I8-97588 843-1 BRACKET; JACK HANDLE 1 1108- A
15 I8-97584 411-9 FRAME; UNDER 1 1108- L A (A)
24 I8-97584 378-6 PANEL; BED PAN 1 1108- A
548 I8-97588 962-1 BRACKET; MUD GUARD 1 1108- L A
174 I8-94122 971-0 GROMMET; AIR PIPE 1 1108- A OD=35 IDN
448 I8-97589 551-2 CLOSING; ROCKER 1 1108- R A
311 I0-28650 616-0 BOLT; BRKT 4 1108- A M6X16 FLANGE
539 I8-98131 661-A PATCH ASM; SAFTY HOOK 1 1108- A (B)
144 I8-97871 161-0 BRACKET; MTG,RR 1 1108- R A
3 I8-98167 036-0 HOOD ASM; ENG 1 1108- A
81 I8-98041 333-3 BRACKET; HARNESS SUPPORT 1 1108- A
539 I8-98131 661-A PATCH ASM; SAFTY HOOK 1 1312-1402 A (B)
544 I8-98049 529-0 BRACKET; DUMP CONT 1 1108- L A
550 I8-97584 615-4 CLOSING ASM; MTG,FRT 1 1108- A
18 I8-97584 421-4 FRAME; FLOOR,CENTER SIDE 1 1108- L A
398 I8-97589 681-3 BRACKET; PIPE SUPPORT 1 1108- A
539 I8-98131 661-A C PATCH ASM; SAFTY HOOK 1 1108- A (B)
376 I8-98199 228-0 CLOSING; PILLAR,LWR 1 1108- R A
545 I8-97584 361-1 BRACKET; SEAT FRT 1 1108- R A
373 I8-97584 367-2 REINFORCEMENT; SEAT BELT 1 1108- R A (A)
537 I8-97584 417-4 SUPPORT ASM; MTG RR 1 1108- L A
376 I8-97589 556-5 CLOSING; PILLAR,LWR 1 1108- L A
15 I8-97584 387-9 FRAME; UNDER 1 1108- R A (A)
549 I8-97588 958-4 BRACKET; SEAT RR 1 1108- L A
23 I8-97584 372-7 PANEL; FLOOR,SIDE 1 1108- L A
18 I8-97584 398-4 FRAME; FLOOR,CENTER SIDE 1 1108- R A
170 I8-97589 207-4 EXTENSION; RR FLOOR 1 1108- A
57 I8-98038 970-1 BRACKET; SPARE TIRE 2 1108- A
15 I8-97584 412-7 FRAME; UNDER 1 1108- L A (B)
537 I8-97584 391-4 SUPPORT ASM; MTG RR 1 1108- R A
540 I8-97584 438-1 BRACKET ASM; CAB LOCK LEVER 1 1108- A
380 I8-98032 615-1 BRACKET; HEAD LAMP 1 1108- L A (B)
539 I8-97584 440-2 PATCH ASM; SAFTY HOOK 1 1108- A (A)
563 I8-97589 579-2 REINFORCEMENT; MTG FRT,RR 4 1108- A
15 I8-97584 388-9 FRAME; UNDER 1 1108- R A (B)
220 I8-97589 627-2 PATCH 1 1108- L A (C)
220 I8-97589 603-3 PATCH 1 1108- R A (B)
554 I8-97584 351-2 REINFORCEMENT; FLOOR CENTER 1 1108- A
548 I8-97588 961-1 BRACKET; MUD GUARD 1 1108- R A
545 I8-97584 373-1 BRACKET; SEAT FRT 1 1108- L A
276 I8-97589 596-3 BRACKET; RAD GRILLE 1 1108- A
539 I8-98131 661-A PATCH ASM; SAFTY HOOK 1 1403- AB (B)
549 I8-97589 557-4 BRACKET; SEAT RR 1 1108- R A
380 I8-98032 614-1 BRACKET; HEAD LAMP 1 1108- R A (B)
373 I8-97584 345-9 REINFORCEMENT; SEAT BELT 1 1108- A (B)
373 I8-97584 375-2 REINFORCEMENT; SEAT BELT 1 1108- L A (A)
375 I8-98044 897-3 CLOSING; PILLAR 1 1108- R A
462 I8-97585 688-1 BRACKET; EXTINGUISHER 1 1108- A
375 I8-98044 898-2 CLOSING; PILLAR 1 1108- L A
