8-10 | WIRING HARNESS AND FUSE
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

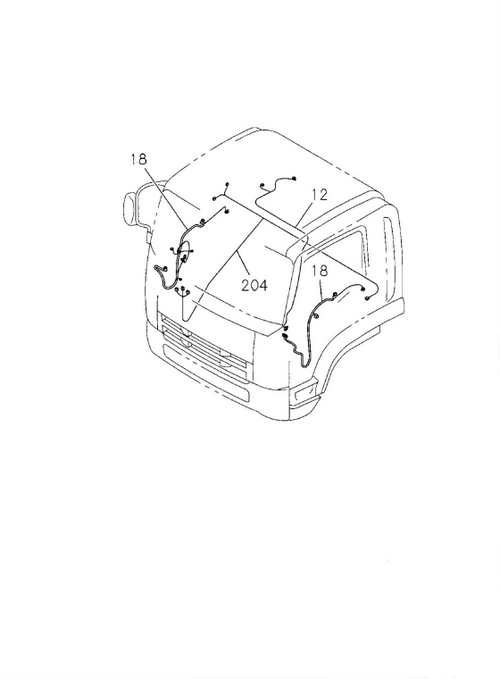

| 18 | I8-98076 304-A | HARNESS; DOOR | 1 | 1108- | A | DRIVER | ||
| 4 | I8-98065 666-0 | BOX ASM; FUSE,HARNESS | 1 | 1108- | A | |||
| 174 | I8-98079 192-0 | FUSE; SLOW BLOW | 1 | 1108- | A | 40A GREEN | ||
| 533 | I1-09709 180-0 | CLIP | 1 | 1403- | B | GVR-TH | ||

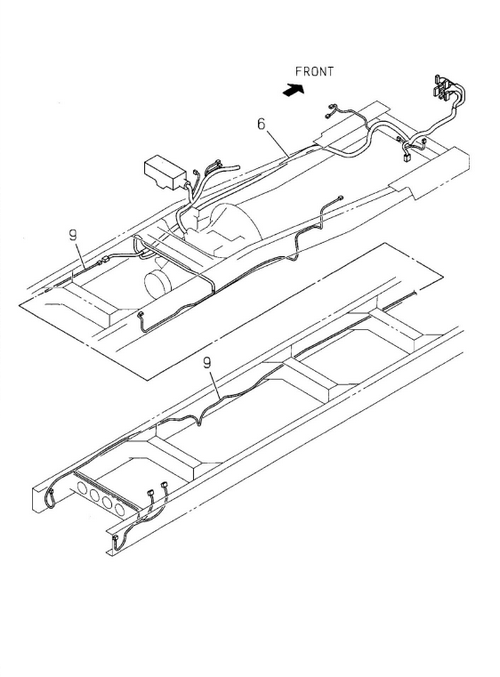

| 9 | I8-98186 226-A | HARNE S S; FRAME,RR | 1 | 1108- | A | WHEEL BASE 5000MM(50W) | ||
| 595 | I8-97620 487-A | HARNESS; WARNING,BRK | 1 | 1312-1402 | A | |||
| 595 | I8-97620 487-A | HARNESS; WARNING,BRK | 1 | 1403- | AB | |||
| 184 | I8-98081 367-0 | COVER; RELAY & FUSE BOX | 1 | 1312-1402 | A | (B) | ||

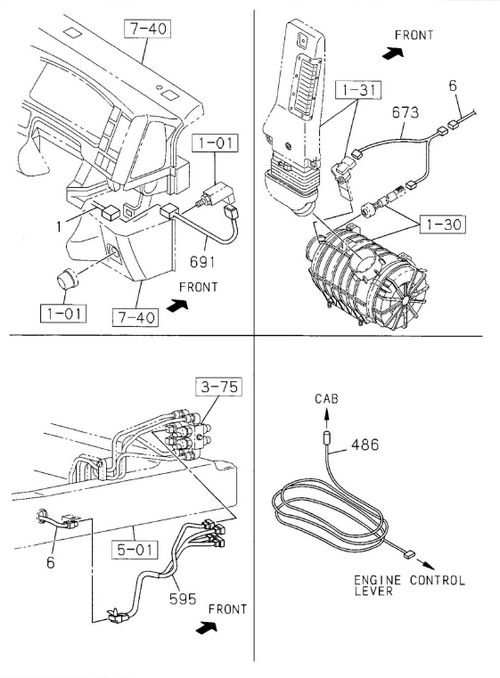

| 691 | I8-98049 014-A | HARNESS; IDLE CONT | 1 | 1108- | A | |||
| 431 | I1-82698 579-0 | CONNECTOR; JOINT | 2 | 1108- | A | (A) GREEN 10P | ||
| 5 | I8-98054 258-0 | FUSE; FACIA HARNESS | 0 | 1108- | A | 15A BLUE | ||

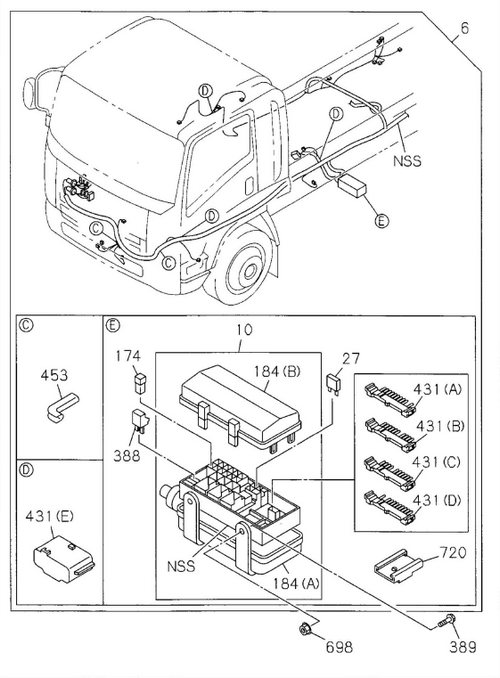

| 6 | I7-42060 306-A | HARNESS ASM; CHASSIS | 1 | 1707- | A | FVR-TH | ||
| 204 | I8-98182 447-A | HARNESS; CABLE,FLOOR | 1 | 1108- | A | |||

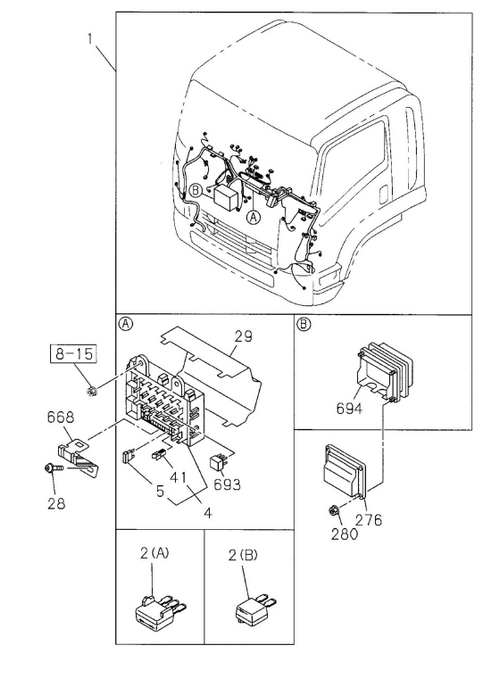

| 1 | I7-42040 313-A | HARNESS; CAB | 1 | 1108- | A | IDN | ||
| 673 | I8-98069 172-A | HARNESS; EXT,SENSOR | 1 | 1108- | A | |||
| 174 | I8-97219 407-0 | FUSE; SLOW BLOW | 2 | 1108- | A | 60A YELLOW | ||
| 290 | I7-05110 010-A | NUT; BRKT | 2 | 1312-1402 | A | (B) M10 FLANGE | ||
| 595 | I8-97620 487-A | HARNESS; WARNING,BRK | 1 | 1108- | A | |||
| 673 | I8-98069 172-A | HARNESS; EXT,SENSOR | 1 | 1403- | AB | |||
| 201 | I8-98250 276-A | HARNESS; AIR TANK | 1 | 1403- | B | GVR-TH | ||
| 9 | I8-98186 226-A | HARNE S S; FRAME,RR | 1 | 1108- | A | WHEEL BASE 5000MM(50W) | ||
| 18 | I8-98076 305-A | HARNESS; DOOR | 1 | 1312-1402 | A | PASSENGER | ||
| 5 | I8-98054 257-0 | FUSE; FACIA HARNESS | 0 | 1108- | A | 10A RED | ||
| 668 | I8-98095 653-2 | BRACKET; HARNESS | 1 | 1403- | AB | GVR-TH, FVR HP, FVR | ||
| 18 | I8-98076 304-A | HARNESS; DOOR | 1 | 1403- | AB | DRIVER | ||
| 486 | I1-82675 898-0 | HARNESS; ALL SPEED ACCEL | 1 | 1108- | A | TRANSMISSION SIDE PTO WO/LEVER(SH5) | ||
| 1 | I8-97695 381-A | HARNESS; CAB | 1 | 1402- | A | |||
| 29 | I8-98056 968-0 | COVER; FUSE BOX | 1 | 1108- | A | |||
| 9 | I8-98186 227-A | HARNE S S; FRAME,RR | 1 | 1108- | A | WHEEL BASE 6 00 0MM(60W) | ||
| 431 | I1-82699 601-0 | CONNECTOR; JOINT | 1 | 1108- | A | (D) BROWN 10P | ||
| 668 | I8-98095 653-2 | BRACKET; HARNESS | 1 | 1108- | A | |||
| 691 | I8-98049 014-A | HARNESS; IDLE CONT | 1 | 1312-1402 | A | |||
| 1 | I8-97695 384-A | HARNESS; CAB | 1 | 1402- | A | GVR-TH | ||
| 453 | I1-82699 709-0 | PROTECTOR; HARNESS | 1 | 1108- | A | |||
| 6 | I7-42060 311-A | HARNESS ASM; CHASSIS | 1 | 1206- | A | |||
| 27 | I8-98054 257-0 | FUSE UNIT | 1 | 1108- | A | 10A RED | ||
| 290 | I7-05110 010-A | NUT; BRKT | 2 | 1403- | AB | (B) M10 FLANGE | ||
| 18 | I8-98076 304-A | HARNESS; DOOR | 1 | 1108- | A | DRIVER | ||
| 18 | I8-98076 305-A | HARNESS; DOOR | 1 | 1403- | AB | PASSENGER | ||
| 486 | I1-82675 898-0 | HARNESS; ALL SPEED ACCEL | 1 | 1108- | A | TRANSMISSION SIDE PTO WO/LEVER(SH5) | ||
| 698 | I0-91180 108-0 | NUT; COVER,RELAY BOX | 2 | 1108- | A | M8 FLANGE | ||
| 204 | I8-98182 447-A | HARNESS; CABLE,FLOOR | 1 | 1312- | A | |||

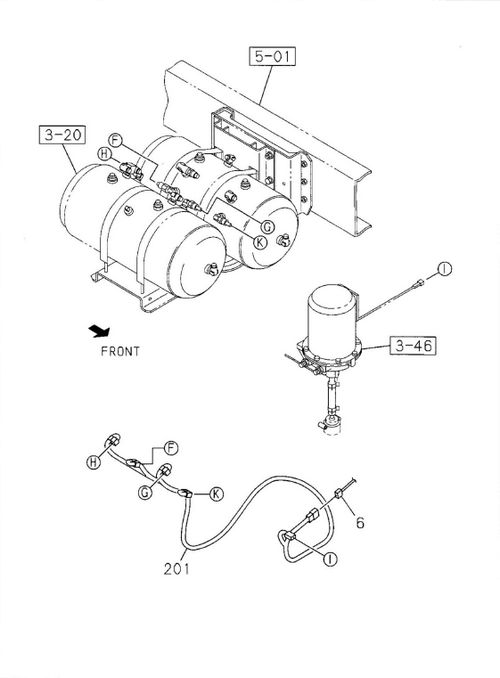

| 201 | I8-98178 658-A | HARNESS; AIR TANK | 1 | 1312- | A | |||
| 431 | I1-82699 598-0 | CONNECTOR; JOINT | 4 | 1108- | A | (C) BLUE 10P | ||
| 204 | I8-98250 442-A | HARNESS; CABLE FLOOR | 1 | 1403- | B | GVR-TH | ||
| 691 | I8-98049 014-A | HARNESS; IDLE CONT | 1 | 1108- | A | |||
| 5 | I8-98062 982-0 | FUSE; FACIA HARNESS | 1 | 1108- | A | 25A WHITE | ||
| 409 | I8-98183 771-0 | CAP; ACCESSORY SOCKET | 1 | 1902- | AB | |||
| 595 | I8-97620 487-A | HARNESS; WARNING,BRK | 1 | 1108- | A | |||
| 184 | I8-98030 766-0 | COVER; RELAY & FUSE BOX | 1 | 1108- | A | (A) | ||
| 9 | I8-98250 278-A | HARNESS; FRAME, RR | 1 | 1403- | B | GVR-TH | ||
| 12 | I8-98041 949-A | HARNESS; ROOF | 1 | 1108- | A | EXC. LAMPS TWO ROOF MARKER<TEC> | ||
| 389 | I1-09030 073-0 | BOLT; COVER,RELAY BOX | 3 | 1108- | A | M8X35 W/LK&PL WASHER | ||
| 5 | I8-98054 259-0 | FUSE; FACIA HARNESS | 0 | 1108- | A | 20A YELLOW | ||
| 694 | I8-98063 269-1 | BOX ASM; CONNECTOR | 1 | 1108- | A | |||
| 28 | I0-28650 616-0 | SCREW; FUSE BOX | 1 | 1108- | A | BOLT M6X16 FLANGE | ||
| 720 | I1-82699 688-0 | ATTACHMENT; CONNECTOR | 3 | 1108- | A | |||
| 18 | I8-98076 305-A | HARNESS; DOOR | 1 | 1108- | A | PASSENGER | ||
| 1 | I8-97695 382-A | HARNESS; CAB | 1 | 1403- | AB | FVR-HP | ||
| 2 | I8-94422 639-1 | DIODE; CABLE HARNESS | 2 | 1108- | A | (B) BLACK 2P-1.5A IDN | ||
| 174 | I8-98079 191-0 | FUSE; SLOW BLOW | 1 | 1108- | A | 30A PINK | ||
| 388 | I8-94422 639-1 | DIODE; RELAY BOX | 1 | 1108- | A | BLACK 2P-1.5A IDN | ||
| 9 | I8-98186 227-A | HARNE S S; FRAME,RR | 1 | 1108- | A | WHEEL BASE 6 00 0MM(60W) | ||

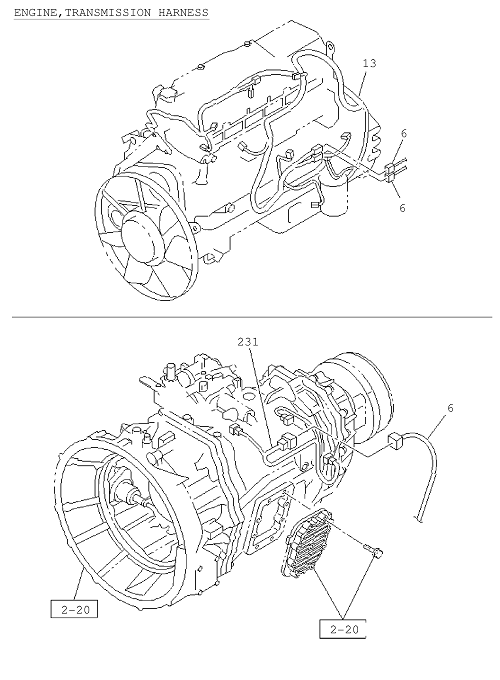

| 13 | I8-98075 774-5 | HARNESS; ENG | 1 | 1108- | A | |||
| 6 | I8-98246 386-A | HARNESS ASM; CHASSIS | 1 | 1403- | A | |||
| 668 | I8-98127 093-0 | BRACKET; HARNESS | 1 | 1403- | B | GVR-TH | ||
| 184 | I8-98081 367-0 | COVER; RELAY & FUSE BOX | 1 | 1403- | AB | (B) | ||
| 693 | I8-97173 035-1 | RELAY; FUSE BOX | 0 | 1108- | A | 24V 10A MATSUSHITA IDN | ||
| 431 | I1-82699 599-0 | CONNECTOR; JOINT | 4 | 1108- | A | (B) GREEN 10P | ||
| 204 | I8-98182 447-A | HARNESS; CABLE,FLOOR | 1 | 1108- | A | |||
| 12 | I8-98041 949-A | HARNESS; ROOF | 1 | 1403- | AB | |||
| 276 | I8-98034 039-1 | COVER; BOX,FRAME HARNESS | 1 | 1108- | A | |||
| 408 | I8-98169 757-0 | SOCKET ASM; ACCESSORY | 1 | 1902- | AB | |||
| 694 | I8-98057 771-0 | BOX ASM; CONNECTOR | 1 | 1403- | AB | GVR-TH, FVR HP, FVR | ||
| 9 | I8-97695 222-A | HARNESS; FRAME,RR FVR | 1 | 1403- | AB | |||
| 231 | I8-97618 932-A | HARNESS; TRANS | 1 | 1312- | A | |||
| 201 | I8-98178 658-A | HARNESS; AIR TANK | 1 | 1108- | A | |||
| 116 | I8-98251 501-0 | HARNESS; TRACTOR | 1 | 1403- | B | GVR-TH | ||
| 18 | I8-98076 305-A | HARNESS; DOOR | 1 | 1108- | A | PASSENGER | ||
| 12 | I8-98041 949-A | HARNESS; ROOF | 1 | 1312-1402 | A | |||
| 9 | I8-98186 225-A | HARNE S S; FRAME,RR | 1 | 1108- | A | WHEEL BASE 4200MM(42W) | ||
| 41 | I8-98054 260-0 | PULLER; FUSE | 1 | 1108- | A | |||
| 10 | I8-98030 762-0 | BOX; FUSE,HARNESS | 1 | 1108- | A | |||
| 6 | I8-98246 391-A | HARNESS ASM; CHASSIS | 1 | 1403- | B | GVR-TH | ||
| 2 | I8-94416 438-1 | DIODE; CABLE HARNESS | 1 | 1108- | A | (A) BLACK 3P-1.5A | ||
| 280 | I0-91180 106-0 | NUT; BOX ASM FIX | 4 | 1108- | A | M6 FLANGE | ||
| 9 | I8-98186 225-A | HARNE S S; FRAME,RR | 1 | 1108- | A | WHEEL BASE 4200MM(42W) | ||
| 174 | I8-98079 193-0 | FUSE; SLOW BLOW | 3 | 1108- | A | 50A RED | ||
| 27 | I8-98054 258-0 | FUSE UNIT | 2 | 1108- | A | 15A BLUE | ||
| 9 | I8-98209 437-A | HARNESS; FRAME,RR | 1 | 1403- | A | S | ||
| 18 | I8-98076 304-A | HARNESS; DOOR | 1 | 1312-1402 | A | DRIVER | ||
| 691 | I8-98049 014-A | HARNESS; IDLE CONT | 1 | 1403- | AB | |||
| 231 | I8-97618 932-A | HARNESS; TRANS | 1 | 1108- | A | |||
| 12 | I8-98085 333-0 | HARNESS; ROOF | 1 | 1108- | A | LAMPS TWO ROOF MARKER<TEC> | ||
| 668 | I8-98212 082-1 | BRACKET; HARNESS | 1 | 1403- | B | GVR-TH | ||
| 184 | I8-98081 367-0 | COVER; RELAY & FUSE BOX | 1 | 1108- | A | (B) | ||
| 13 | I8-98075 774-5 | HARNESS; ENG | 1 | 1108- | A | |||
| 184 | I8-98081 367-0 | COVER; RELAY & FUSE BOX | 1 | 1108- | A | (B) | ||
| 673 | I8-98069 172-A | HARNESS; EXT,SENSOR | 1 | 1312-1402 | A | |||
| 431 | I8-97616 194-0 | CONNECTOR; JOINT | 1 | 1108- | A | (E) 6P BLACK | ||
| 1 | I8-97695 381-A | HARNESS; CAB | 1 | 1108- | A | IDN | ||
| 673 | I8-98069 172-A | HARNESS; EXT,SENSOR | 1 | 1108- | A | |||
| 174 | I8-97219 407-0 | FUSE; SLOW BLOW | 2 | 1108- | A | 60A YELLOW | ||
| 9 | I8-98209 435-A | HARNESS; FRAME,RR | 1 | 1403- | A | L | ||
| 12 | I8-98041 949-A | HARNESS; ROOF | 1 | 1108- | A | EXC. LAMPS TWO ROOF MARKER<TEC> | ||
| 201 | I8-98178 658-A | HARNESS; AIR TANK | 1 | 1108- | A | |||
| 6 | I8-98246 386-A | HARNESS ASM; CHASSIS | 1 | 1403- | A | |||
| 231 | I8-97618 932-A | HARNESS; TRANS | 1 | 1108- | A |
