8-26 | ELECTRICAL CONTROL AND OTHER PARTS
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 380 | I1-76798 029-0 | SEAL | 1 | 1403- | AB | OD=25 BLACK | ||

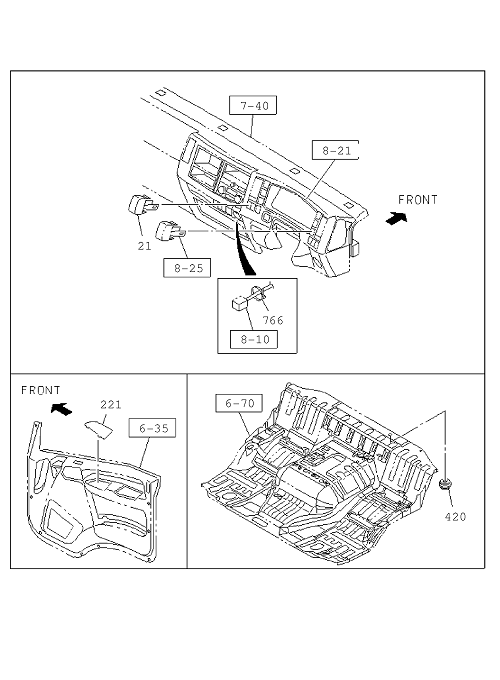

| 766 | I5-09707 031-1 | BAND; CLIP | 1 | 1108- | A | L=140 IDN | ||

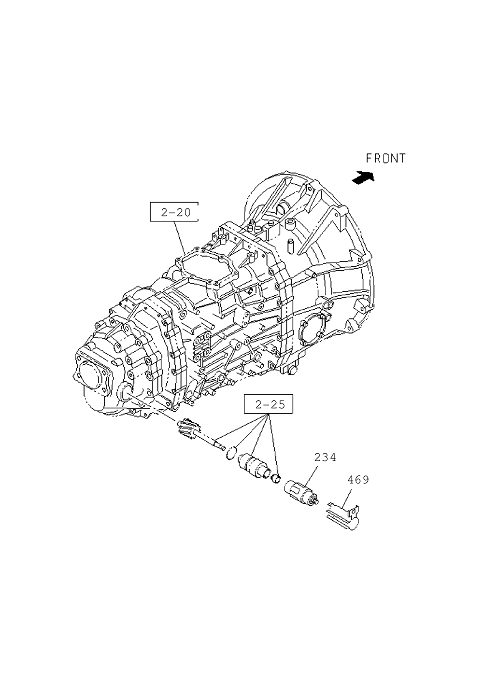

| 234 | I8-97328 058-1 | SENSOR; VEHICLE SPD | 1 | 1108- | A | 25 PULSE ALUMINUM | ||
| 491 | I8-98054 651-A | PLUG; HOLE,CONT UNIT | 1 | 1301- | A | |||
| 221 | I8-98029 916-2 | COVER; HOLE,DOOR LOCK SW | 1 | 1108- | A | |||

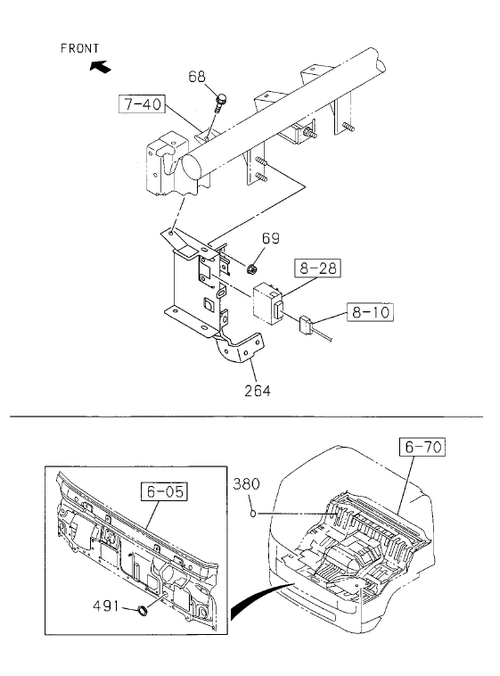

| 264 | I8-97609 985-9 | BRACKET; CONT UNIT | 1 | 1108- | A | |||
| 420 | I8-94122 971-0 | PLUG; SWITCH | 1 | 1108- | A | OD=3 5 IDN | ||
| 68 | I0-28650 616-0 | BOLT; BRKT | 1 | 1108- | A | M6X16 FLANGE | ||
| 491 | I8-98054 651-A | PLUG; HOLE,CONT UNIT | 1 | 1403- | AB | |||
| 491 | I8-98054 651-A | PLUG; HOLE,CONT UNIT | 1 | 1108- | A | |||
| 380 | I1-76798 029-0 | SEAL | 1 | 1108- | A | OD=2 5 BLACK | ||
| 491 | I8-98054 651-A | PLUG; HOLE,CONT UNIT | 1 | 1312-1402 | A | |||
| 469 | I8-98119 901-0 | PROTECTOR; SPEED SENSOR | 1 | 1108- | A | |||
| 380 | I1-76798 029-0 | SEAL | 1 | 1108- | A | OD=2 5 BLACK | ||
| 69 | I0-91180 106-0 | NUT; BRKT | 1 | 1108- | A | M6 FLANGE | ||
| 380 | I1-76798 029-0 | SEAL | 1 | 1312-1402 | A | OD=25 BLACK | ||
| 221 | I8-98029 915-2 | COVER; HOLE,DOOR LOCK SW | 1 | 1108- | A | |||
| 21 | I8-98025 954-1 | COVER; HOLE | 1 | 1108- | A |
