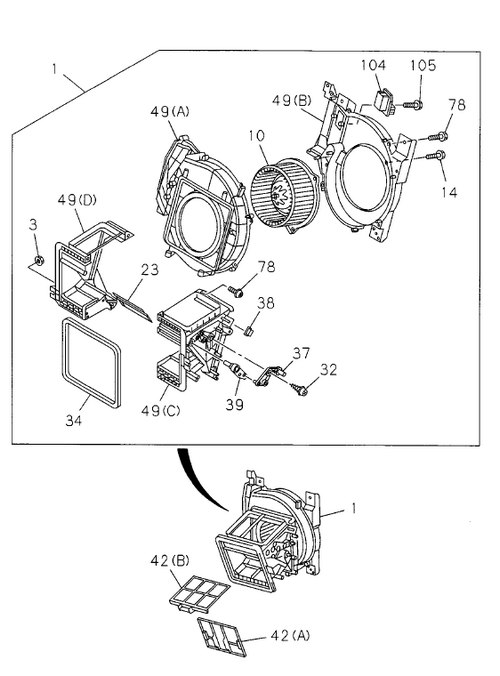

8-73 | BLOWER UNIT
GIGA
GIGA FVR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 42 | I8-98041 327-0 | FILTER; BLOWER UNIT | 1 | 1108- | A | (A) | ||
| 1 | I8-98171 720-0 | BLOWER ASM | 1 | 1108- | A | |||
| 105 | I8-97957 708-0 | SCREW; RESISTOR | 2 | 1108- | A | M4X16 TAPPING IDN | ||
| 49 | I8-98077 413-0 | CASE; BLOWER UNIT | 1 | 1108- | A | (D) | ||
| 32 | I8-98047 416-0 | SCREW; LEVER | 1 | 1108- | A | M4X16 | ||
| 14 | I8-98047 448-0 | SCREW; COVER TO CASE | 3 | 1108- | A | M5X16 | ||
| 49 | I8-98077 414-0 | CASE; BLOWER UNIT | 1 | 1108- | A | (C) | ||
| 3 | I1-83539 354-0 | NUT; CASE | 2 | 1108- | A | M6 | ||
| 38 | I8-98047 417-0 | CLIP; BLOWER UNIT | 1 | 1108- | A | |||
| 37 | I8-98047 436-0 | LEVER; MODE LEVER | 1 | 1108- | A | |||
| 34 | I8-98096 453-0 | LINING; BLOWER UNIT | 1 | 1108- | A | |||
| 104 | I8-98074 113-0 | RESISTOR; BLOWER UNIT | 1 | 1108- | A | |||
| 49 | I8-98047 440-0 | CASE; BLOWER UNIT | 1 | 1108- | A | (B) | ||
| 23 | I8-98188 478-0 | SHUTTER; BLOWER UNIT | 1 | 1108- | A | |||
| 49 | I8-98047 441-0 | CASE; BLOWER UNIT | 1 | 1108- | A | (A) | ||
| 78 | I8-97957 708-0 | SCREW; CASE TO CASE | 15 | 1108- | A | M4X16 TAPPING IDN | ||
| 10 | I8-98183 924-0 | MOTOR ASM; FAN,BLOWER UNIT | 1 | 1108- | A | |||
| 39 | I8-98047 435-0 | LEVER; SHUTTER,BLOWER UNIT | 1 | 1108- | A | |||
| 23 | I8-98188 478-0 | SHUTTER; BLOWER UNIT | 1 | 1108- | A | |||
| 42 | I8-98025 006-1 | FILTER; BLOWER UNIT | 1 | 1108- | A | (B) |
