PORTAL SPAREPART

9-01 | TOOLS

Partial Engine Partial Engine Partial Engine

GIGA

GIGA FVR

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS

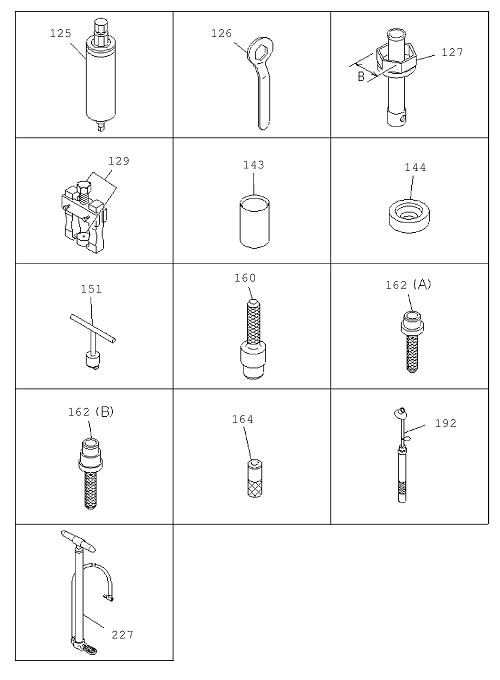

125 I1-85210 009-0 PULLER ASM; KING PIN 1 1108- A L=450
162 I1-85238 008-0 SETTING TOOL; NEEDLE BRG 1 1108- A (A) L=181
129 I1-85210 011-0 PULLER ASM; PITMAN ARM 1 1108- A

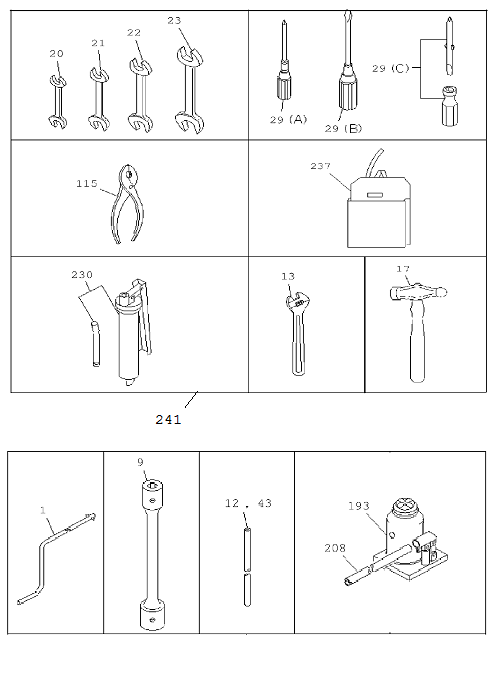

29 I7-99302 305-A DRIVER; SCREW 1 1312-1402 A (B) L=275
17 I7-99303 314-A C HAMMER 1 1108- A
43 I7-99311 312-A C BAR; EXTENSION,SOCKET WRENCH 1 1108- A OD=25 L=480
115 I8-97957 882-A C PLIER 1 1108- A
23 I7-99300 324-A WRENCH; 2 4X2 7 1 1108- A 24X27 IDN
20 I7-99400 000-A WRENCH; 10X12 1 1108- A 10X12
20 I7-99400 000-A WRENCH; 10X12 1 1403- AB 10X12
29 I7-99302 306-A DRIVER; SCREW 1 1403- AB (A) L=190

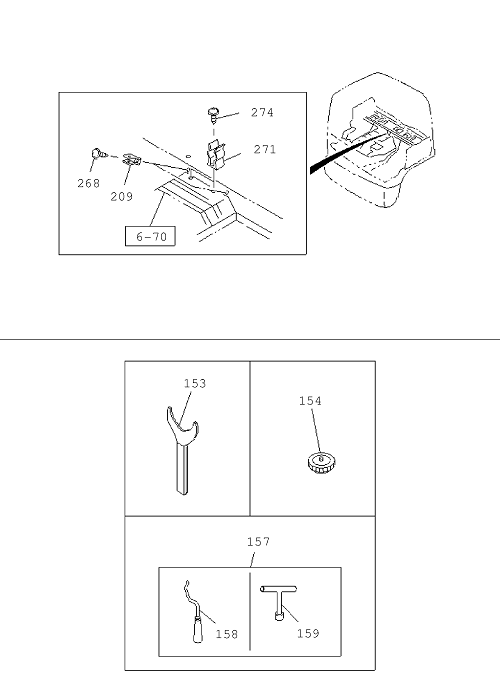

268 I0-38050 612-0 SCREW; CLIP 2 1108-1108 A M6X12 HEXALOBULAR SOCKET
230 I7-99305 315-A PUMP; GREASE 1 1108- A
22 I7-99400 002-A WRENCH; 19X22 1 1312-1402 A 19X22
237 I7-99300 310-A BAG; TOOL 1 1108- A
9 I7-99315 317-A WRENCH; WHEEL PIN 1 1312-1402 A B=41X21 L=440
115 I8-97957 882-A PLIER 1 1108- A
237 I7-99300 310-A C BAG; TOOL 1 1108- A
29 I7-99302 306-A DRIVER; SCREW 1 1312-1402 A (A) L=190
268 I8-98177 720-0 SCREW; CLIP 2 1109- A M6X12 HEXALOBULAR SOCKET
237 I7-99300 310-A BAG; TOOL 1 1312-1402 A
1 I7-99310 311-A HANDLE; SPARE TIRE CARRIER 1 1403- A SPARE WHEEL CARRIER FRAME REAR
12 I7-99311 312-A HANDLE; WRENCH,WHEEL PIN 1 1312-1402 A OD=25 L=480
153 I1-85238 002-0 DRIVER; WASHER,THRUST WASHER 1 1108- A
9 I7-99315 317-A WRENCH; WHEEL PIN 1 1108- A 41X21 L=440
22 I7-99400 002-A C WRENCH; 19X22 1 1108- A 19X22
29 I7-99302 305-A DRIVER; SCREW 1 1403- AB (B) L=275
23 I7-99300 324-A WRENCH; 24X27 1 1312-1402 A 24X27
127 I8-98119 000-1 WRENCH ASM; HUB BRG NUT 1 1108- A L=400 B=116
1 I7-99310 311-A HANDLE; SPARE TIRE CARRIER 1 1403- B SPARE TIRE CARRIER LIFTING TYPE VAR1
157 I9-85221 231-0 REPLACER KIT; RETURN SPR 1 1312-1402 A
13 I7-99301 344-A C WRENCH; MONKEY 1 1108- A L=247
209 I8-98053 799-0 CLIP; JACK HANDLE 2 1108- A
144 I1-85229 009-0 BASE; BOOT GUIDE,TIE ROD END 1 1108- A
13 I7-99301 344-A WRENCH; MONKEY 1 1403- AB L=247
193 I1-85510 019-2 JACK ASM 1 1208- A 15TON
23 I7-99300 324-A WRENCH; 24X27 1 1403- AB 24X27
12 I7-99311 312-A C HANDLE; WRENCH,WHEEL PIN 1 1108- A OD=25 L=480
29 I7-99302 306-A DRIVER; SCREW 1 1108- A (A) <+> L=190
1 I7-99310 311-A HANDLE; SPARE TIRE CARRIER 1 1312-1402 A SPARE WHEEL CARRIER FRAME REAR
143 I1-85229 013-0 GUIDE; BOOT,TIE ROD END 1 1108- A
29 I7-99302 305-A DRIVER; SCREW 1 1108- A (B) <-> L=275
17 I7-99303 314-A HAMMER 1 1312-1402 A
193 I8-97607 599-0 JACK ASM 1 1108- A 10TON
29 I7-99302 305-A C DRIVER; SCREW 1 1108- A (B) <-> L=275
20 I7-99400 000-A WRENCH; 10X12 1 1312-1402 A 10X12
151 I1-85237 002-0 REMOVER; OIL BRK,FRT RETURN SPR 1 1108- A
13 I7-99301 344-A WRENCH; MONKEY 1 1312-1402 A L=247
21 I7-99400 001-A WRENCH; 14X17 1 1312-1402 A 14X17
1 I7-99310 311-A HANDLE; SPARE TIRE CARRIER 1 1108- A SPARE WHEEL CARRIER FRAME REAR(P10)
21 I7-99400 001-A WRENCH; 14X17 1 1403- AB 14X17
9 I7-99315 317-A C WRENCH; WHEEL PIN 1 1108- A 41X21 L=440
126 I1-85110 002-1 C WRENCH; FRT HUB BRG NUT 1 1108- A L=350 B=75
22 I7-99400 002-A WRENCH; 19X22 1 1403- AB 19X22
230 I7-99305 315-A C PUMP; GREASE 1 1108- A
13 I7-99301 344-A WRENCH; MONKEY 1 1108- A L=247
274 I8-98177 720-0 SCREW; CLIP 2 1109- A M6X12 HEXALOBULAR SOCKET
192 I1-85315 002-0 GAUGE; TIRE PRESSURE 1 1108- A
115 I8-97957 882-A PLIER 1 1403- AB OD=25 L=480
274 I0-38050 612-0 SCREW; CLIP 2 1108-1108 A M6X12 HEXALOBULAR SOCKET
158 I9-85221 231-0 SETTING TOOL; RETURN SPR 1 1108- A
126 I1-85110 002-1 WRENCH; FRT HUB BRG NUT 1 1108- A L=350 B=75
157 I9-85221 231-0 REPLACER KIT; RETURN SPR 1 1403- AB
17 I7-99303 314-A HAMMER 1 1403- AB
21 I7-99400 001-A WRENCH; 14X17 1 1108- A 14X17
43 I7-99311 312-A BAR; EXTENSION,SOCKET WRENCH 1 1108- A OD=25 L=480
160 I1-85238 001-0 REMOVER; NEEDLE BRG 1 1108- A L=220
23 I7-99300 324-A C WRENCH; 2 4X2 7 1 1108- A 24X27 IDN
29 I7-99302 306-A DRIVER; SCREW 1 1403- AB (C) L=160
21 I7-99400 001-A C WRENCH; 14X17 1 1108- A 14X17
29 I7-99302 306-A C DRIVER; SCREW 1 1108- A (A) <+> L=190
157 I9-85221 231-0 C REPLACER KIT; RETURN SPR 1 1108- A
17 I7-99303 314-A HAMMER 1 1108- A
154 I1-85238 003-0 SLEEPER; KING PIN 1 1108- A
230 I7-99305 315-A PUMP; GREASE 1 1403- AB
237 I7-99300 310-A BAG; TOOL 1 1403- AB
20 I7-99400 000-A C WRENCH; 10X12 1 1108- A 10X12
164 I1-85176 001-0 GUIDE; SNAP RING PILOT BRG 1 1108- A
159 I9-85231 555-0 REMOVER; RETURN SPR 1 1108- A
29 I7-99302 306-A DRIVER; SCREW 1 1108- A (C) <+>,<-> L=160
208 I1-85515 009-A HANDLE; JACK 1 1108- A
241 I7-99350 300-A TOOL SET ASM 1 1108- A
127 I8-98119 000-1 A WRENCH ASM; HUB BRG NUT 1 1108- A L=400 B=116
12 I7-99311 312-A HANDLE; WRENCH,WHEEL PIN 1 1403- AB OD=25 L=480
230 I7-99305 315-A PUMP; GREASE 1 1312-1402 A
12 I7-99311 312-A HANDLE; WRENCH,WHEEL PIN 1 1108- A OD=25 L=480
29 I7-99302 306-A DRIVER; SCREW 1 1312-1402 A (C) L=160
1 I7-99310 311-A C HANDLE; SPARE TIRE CARRIER 1 1108- A SPARE WHEEL CARRIER FRAME REAR(P10)
157 I9-85221 231-0 REPLACER KIT; RETURN SPR 1 1108- A
43 I7-99311 312-A BAR; EXTENSION,SOCKET WRENCH 1 1312-1402 A OD=25 L=480
9 I7-99315 317-A WRENCH; WHEEL PIN 1 1403- AB B=41X21 L=440
162 I1-85238 009-0 SETTING TOOL; NEEDLE BRG 1 1108- A (B) L=213
227 I9-85521 132-0 PUMP ASM; TIRE 1 1108- A
22 I7-99400 002-A WRENCH; 19X22 1 1108- A 19X22
29 I7-99302 306-A C DRIVER; SCREW 1 1108- A (C) <+>,<-> L=160
271 I8-98053 800-0 CLIP; TIRE HANGER 2 1108- A
