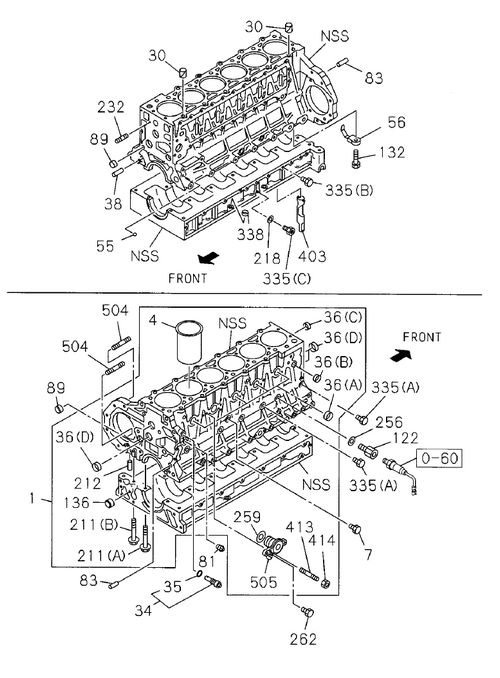

| 055 |
I9-00097 011-0 |
|
PLUG; OIL GALLERY |
1 |
1104- |
|
ALL |
3/8" BALL |
| 211 |
I8-97077 638-0 |
|
BOLT; CRANKCASE |
14 |
1104- |
|
ALL |
(A) M14X115 FLANGE |
| 004 |
I8-94391 603-1 |
|
LINER; C/BL |
6 |
1104- |
|
ALL |
OD GRADE=3X,ID GRADE=NON |
| 262 |
I8-94152 613-A |
|
PLUG; ADAPTER |
1 |
1104- |
|
ALL |
M14X14 |
| 036 |
I8-94399 005-0 |
|
CUP; SEALING,WATER JACKET |
1 |
1104- |
|
ALL |
(C) OD=25 |
| 007 |
I8-97329 617-0 |
|
PLUG; WATER DRAIN |
1 |
1104-2005 |
|
ALL |
M14X16.5 |
| 218 |
I1-09630 084-0 |
|
GASKET; PLUG,C/BL SIDE |
1 |
1104-1312 |
|
ALL |
ID=12.2 OD=17.2 |
| 036 |
I8-97036 550-1 |
|
CUP; SEALING,WATER JACKET |
4 |
1104- |
|
ALL |
(A) OD=45 |
| 335 |
I8-97658 185-0 |
|
PLUG; C/BL,SIDE |
2 |
2006- |
|
ALL |
(A) M14X16.5 |
| 538 |
I1-87310 899-0 |
|
CRANKCASE; LOW |
1 |
1309- |
|
ALL |
|
| 030 |
I8-94399 688-1 |
|
PIN; CYL HD GASKET SETTING |
2 |
1104- |
|
ALL |
OD=18.15 |
| 403 |
I8-94395 351-1 |
|
GUIDE; GALLERY |
1 |
1104- |
|
ALL |
|
| 132 |
I8-94394 419-1 |
|
VALVE; CHECK,OIL |
6 |
1104- |
|
ALL |
M12X18.5 |
| 232 |
I0-41010 855-0 |
|
STUD; WATER PUMP |
3 |
1104- |
|
ALL |
M8X55 L=67 |
| 413 |
I0-41010 830-0 |
|
STUD; ADAPTER |
2 |
1104- |
|
ALL |
M8X30 L=41 |
| 007 |
I8-97658 185-0 |
|
PLUG; WATER DRAIN |
1 |
2006- |
|
ALL |
M14X16.5 |
| 001 |
I8-98206 966-1 |
|
BLOCK ASM; CYL |
1 |
1104- |
|
ALL |
|
| 036 |
I8-97096 824-0 |
|
CUP; SEALING,WATER JACKET |
4 |
1104- |
|
ALL |
(D) OD=40 |
| 414 |
I0-91180 208-0 |
|
NUT; ADAPTER |
2 |
1104- |
|
ALL |
M8 FLANGE |
| 001 |
I8-97618 663-3 |
|
BLOCK ASM; CYL |
1 |
1104-1208 |
|
ALL |
|
| 035 |
I5-09623 035-0 |
|
GASKET; RELIEF VLV |
1 |
1104- |
|
ALL |
ID=27.7 |
| 335 |
I8-97329 617-0 |
|
PLUG; C/BL,SIDE |
2 |
1104-2005 |
|
ALL |
(A) M14X16.5 |

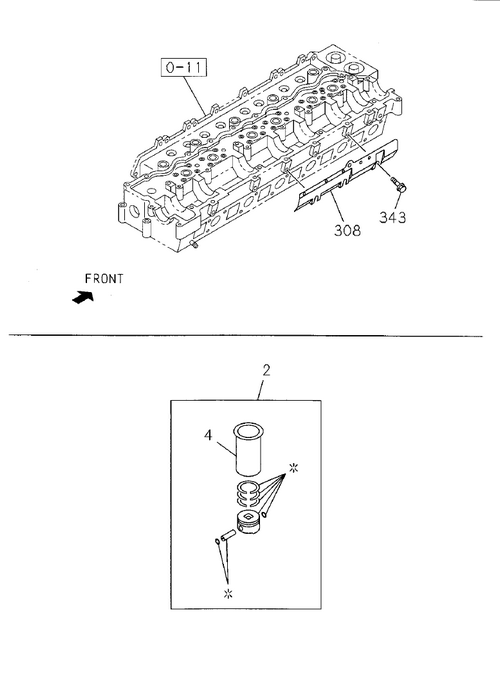

| 308 |
I8-94390 997-0 |
|
PROTECTOR; HEAT,HD COVER |
1 |
1104- |
|
ALL |
|
| 343 |
I0-28050 812-A |
|
BOLT; HEAT PROTECTOR |
3 |
1104- |
|
ALL |
M8X12 FLANGE |
| 089 |
I9-11129 128-0 |
|
CUP; SEALING,OIL GALLERY |
3 |
1104- |
|
ALL |
OD=20 |
| 056 |
I8-98173 342-0 |
|
JET; OIL,PISTON COOLING |
6 |
1104- |
|
ALL |
|
| 259 |
I1-09623 184-0 |
|
GASKET; ADAPTER |
1 |
1104- |
|
ALL |
ID=38.7 |
| 004 |
I8-94391 602-1 |
|
LINER; C/BL |
6 |
1104- |
|
ALL |
OD GRADE=1X,ID GRADE=NON |
| 002 |
I1-87814 726-0 |
|
LINER SET; ENG CYL |
6 |
1104- |
|
ALL |
GRADE=1X |
| 335 |
I8-94396 547-0 |
|
PLUG; C/BL,SIDE |
1 |
1402- |
|
FVZ |
(D) M14 M10-THREADED ; MIXER |
| 256 |
I1-09630 141-0 |
|
GASKET; ADAPTER |
1 |
1104- |
|
ALL |
ID=14.2 OD=25 |
| 136 |
I8-98091 566-0 |
|
BUSHING; DRIVE SHAFT,OIL PUMP |
2 |
1104- |
|
ALL |
|
| 083 |
I8-94483 674-0 |
|
PIN; FLYWHEEL HSG |
2 |
1104- |
|
ALL |
L=22 |
| 038 |
I8-94483 674-0 |
|
PIN; TIMING GEAR CASE |
2 |
1104- |
|
ALL |
L=22 |
| 212 |
I8-97135 423-0 |
|
PIN; CRANKCASE |
2 |
1104- |
|
ALL |
OD=10 L=20 |
| 338 |
I5-11129 003-0 |
|
CUP; SEALING,GUIDE TUBE HOLE |
2 |
1104- |
|
ALL |
OD=15.6 |
| 122 |
I8-97603 667-0 |
|
ADAPTER; OIL PRESSURE SWITCH |
1 |
1104- |
|
ALL |
|
| 335 |
I8-98003 416-0 |
|
PLUG; C/BL,SIDE |
1 |
1104- |
|
ALL |
(B) M8X10 |
| 211 |
I8-94399 553-2 |
|
BOLT; CRANKCASE |
25 |
1104- |
|
ALL |
(B) M10X82 FLANGE |
| 002 |
I1-87813 120-6 |
|
LINER SET; ENG CYL |
6 |
1104- |
|
ALL |
GRADE=3X |
| 218 |
I8-98251 344-0 |
|
GASKET; PLUG,C/BL SIDE |
1 |
1401- |
|
ALL |
ID=12.2 OD=17.2 |
| 505 |
I8-97611 854-0 |
|
ADAPTER; WATER FEED |
1 |
1104- |
|
ALL |
|
| 081 |
I8-94397 338-0 |
|
PLUG; WATER JACKET |
1 |
1104- |
|
ALL |
PT3/8 |
| 036 |
I1-09600 016-0 |
|
CUP; SEALING,WATER JACKET |
1 |
1104- |
|
ALL |
(B) OD=25 |
| 335 |
I5-13265 001-0 |
|
PLUG; C/BL,SIDE |
1 |
1104- |
|
ALL |
(C) M12X10 |
| 034 |
I8-94393 077-1 |
|
VALVE; OIL RELIEF |
1 |
1104- |
|
ALL |
|
| 504 |
I8-97363 237-0 |
|
STUD; INJ PUMP |
2 |
1104- |
|
ALL |
M10X46.5 L=58.5 |
