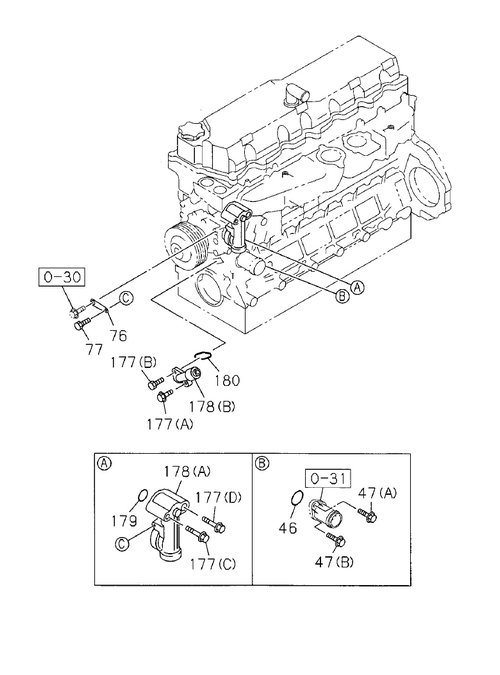

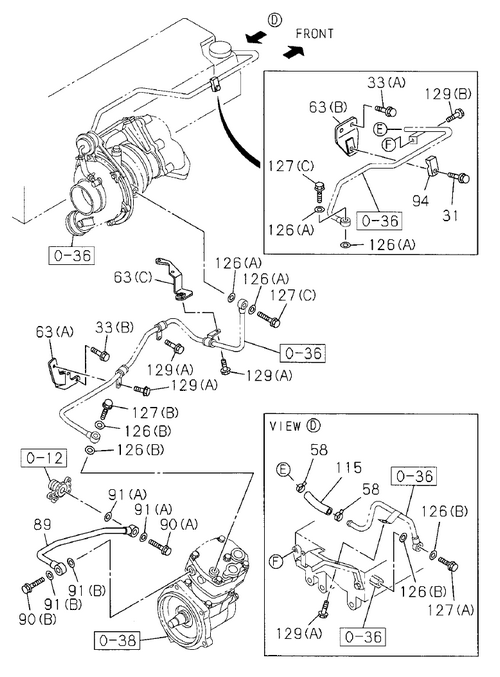

0-32 | WATER PIPING; ENGINE
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 126 | I8-98251 345-0 | GASKET; CAP NUT | 4 | 1401- | ALL | (A) ID=14.2 OD=19.2 | ||
| 031 | I0-28650 635-0 | BOLT; CLIP | 1 | 1104- | ALL | M6X35 FLANGE | ||
| 063 | I8-94392 951-0 | BRACKET; WATER PIPE | 1 | 1104- | ALL | (B) | ||
| 063 | I8-98074 252-0 | BRACKET; WATER PIPE | 1 | 1104- | ALL | (C) | ||
| 177 | I8-94397 360-1 | BOLT; WATER DUCT | 1 | 1104- | ALL | (D) M16X75 FLANGE | ||
| 179 | I8-94396 679-0 | GASKET; WATER DUCT | 1 | 1104-1408 | ALL | ID=31.2 | ||
| 091 | I1-09630 085-0 | GASKET; WATER PIPE,AIR CMPR | 2 | 1104-1312 | ALL | (A) ID=14.2 OD=19.2 | ||
| 180 | I8-94396 720-1 | GASKET; WATER DUCT | 1 | 1104- | ALL | |||
| 077 | I0-28050 850-0 | BOLT; BRKT,WATER DUCT | 1 | 1104- | ALL | M8X50 FLANGE | ||
| 094 | I8-94396 860-0 | CLIP; WATER PIPE | 1 | 1104- | ALL | |||
| 177 | I0-28650 825-0 | BOLT; WATER DUCT | 1 | 1104- | ALL | (B) M8X25 FLANGE | ||
| 178 | I8-94390 644-0 | DUCT; WATER,BYPASS | 1 | 1104- | ALL | (B) | ||
| 115 | I0-03561 300-0 | HOSE; RUBBER | 1 | 1104-1410 | ALL | L=60 | ||
| 177 | I0-28050 880-0 | BOLT; WATER DUCT | 1 | 1104- | ALL | (C) M8X80 FLANGE | ||
| 076 | I8-94394 784-0 | BRACKET; WATER DUCT,PUMP | 1 | 1104- | ALL | |||
| 090 | I8-94383 489-0 | BOLT; EYE,WATER PIPE,AIR CMPR | 1 | 1104- | ALL | (B) M16X28 EYE-BOLT | ||
| 177 | I1-09044 072-1 | BOLT; WATER DUCT | 1 | 1104- | ALL | (A) M8X65 FLANGE | ||
| 178 | I8-94396 627-3 | DUCT; WATER,BYPASS | 1 | 1104-1410 | ALL | (A) | ||
| 090 | I1-09675 193-0 | BOLT; EYE,WATER PIPE,AIR CMPR | 1 | 1104- | ALL | (A) M14X27 EYE-BOLT | ||
| 047 | I0-28050 845-0 | BOLT; DUCT,TO OIL COOLER | 1 | 1104- | ALL | (A) M8X45 FLANGE | ||
| 091 | I1-09630 086-0 | GASKET; WATER PIPE,AIR CMPR | 2 | 1104- | ALL | (B) ID=16.2 OD=22 | ||
| 127 | I8-94383 489-0 | BOLT; EYE | 1 | 1104- | ALL | (B) M16X28 EYE-BOLT | ||
| 126 | I1-09630 086-0 | GASKET; CAP NUT | 4 | 1104- | ALL | (B) ID=16.2 OD=22 | ||
| 126 | I1-09630 085-0 | GASKET; CAP NUT | 4 | 1104-1312 | ALL | (A) ID=14.2 OD=19.2 | ||
| 089 | I8-97611 095-0 | PIPE; WATER,AIR CMPR,IN | 1 | 1104- | ALL | |||
| 047 | I0-28650 825-0 | BOLT; DUCT,TO OIL COOLER | 1 | 1104- | ALL | (B) M8X25 FLANGE | ||
| 179 | I8-98276 756-0 | GASKET; WATER DUCT | 1 | 1409- | ALL | ID=31.2 | ||
| 091 | I8-98251 345-0 | GASKET; WATER PIPE,AIR CMPR | 2 | 1401- | ALL | (A) ID=14.2 OD=19.2 | ||
| 129 | I0-28151 220-0 | BOLT; WATER PIPE TO BRKT | 1 | 1104- | ALL | (B) M12X20 FLANGE | ||
| 058 | I8-94392 924-0 | CLIP; RUBBER HOSE | 2 | 1104- | ALL | ID=16 | ||
| 046 | I8-94396 680-2 | GASKET; WATER DUCT,TO OIL COOLER | 1 | 1104- | ALL | ID=48.5 OD=53.3 | ||
| 127 | I1-09675 193-0 | BOLT; EYE | 2 | 1104- | ALL | (A) M14X27 EYE-BOLT | ||
| 033 | I0-28050 820-0 | BOLT; BRKT | 2 | 1104- | ALL | (B) M8X20 FLANGE | ||
| 129 | I0-28050 816-0 | BOLT; WATER PIPE TO BRKT | 5 | 1104- | ALL | (A) M8X16 FLANGE | ||
| 127 | I5-09675 028-2 | BOLT; EYE | 1 | 1104- | ALL | (C) M16X25 | ||
| 033 | I0-28050 816-0 | BOLT; BRKT | 2 | 1104- | ALL | (A) M8X16 FLANGE | ||
| 063 | I8-98074 253-0 | BRACKET; WATER PIPE | 1 | 1104-1410 | ALL | (A) |
