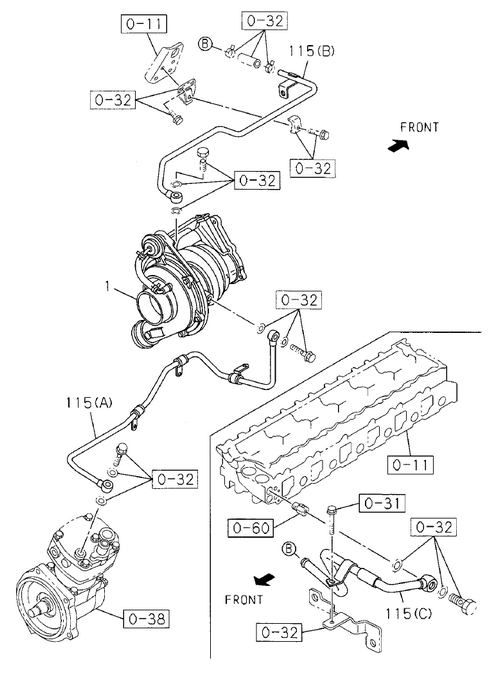

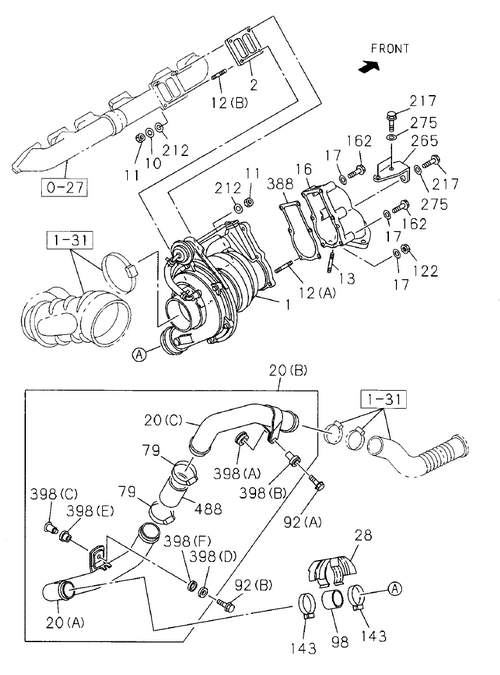

0-36 | TURBOCHARGER SYSTEM
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 398 | I8-94390 551-1 | MOUNTING | 1 | 1104- | ALL | (C) OD=28 | ||
| 122 | I1-09400 118-1 | NUT; ADAPTER | 1 | 1104- | ALL | M8 | ||
| 011 | I1-09420 005-0 | NUT; TURBOCHARGER | 4 | 1104- | ALL | M10 | ||
| 488 | I8-98245 240-1 | HOSE; RUBBER | 1 | 1104-1408 | ALL | ID=62 L=70 | ||
| 217 | I8-94394 324-0 | BOLT; BRKT | 3 | 1104- | ALL | M12X30 | ||
| 098 | I8-98245 240-1 | HOSE; RUBBER,TURBOCHARGER OUTLET | 1 | 1409- | ALL | ID=62 L=70 | ||
| 012 | I9-04130 825-0 | STUD; TURBOCHARGER | 1 | 1104- | ALL | (A) M8X25 | ||
| 012 | I9-04731 080-0 | STUD; TURBOCHARGER | 2 | 1104- | ALL | (B) M10X80 | ||
| 115 | I8-97618 808-0 | PIPE; WATER,TURBOCHARGER OUT | 1 | 1104- | ALL | (A) | ||
| 020 | I8-97606 675-1 | PIPE; INL,TURBOCHARGER OUT | 1 | 1104- | ALL | (B) | ||
| 212 | I1-09503 222-0 | WASHER; PL,TURBOCHARGER | 4 | 1104- | ALL | ID=10 | ||
| 162 | I5-09000 275-0 | BOLT; ADAPTER | 5 | 1104- | ALL | M8X57 | ||
| 020 | I8-97618 726-2 | PIPE; INL,TURBOCHARGER OUT | 1 | 1104-1408 | ALL | (A) | ||
| 079 | I1-09707 136-0 | CLIP; RUBBER HOSE | 2 | 1104- | ALL | ID=58-79 | ||
| 398 | I8-94160 177-0 | MOUNTING | 1 | 1104- | ALL | (F) ID=19 OD=26 | ||
| 398 | I8-94395 766-0 | MOUNTING | 1 | 1104- | ALL | (A) OD=32 | ||
| 028 | I8-94393 182-0 | PROTECTOR; HEAT,HOSE,AIR DUCT | 1 | 1104- | ALL | |||
| 002 | I8-94390 044-0 | GASKET; TURBOCHARGER TO EXH MANIF | 1 | 1104- | ALL | |||
| 388 | I8-94394 248-2 | GASKET; EXH PIPE | 1 | 1104- | ALL | |||
| 115 | I8-94395 454-4 | PIPE; WATER,TURBOCHARGER OUT | 1 | 1104- | ALL | (C) | ||
| 020 | I8-97618 734-0 | PIPE; INL,TURBOCHARGER OUT | 1 | 1104- | ALL | (C) | ||
| 098 | I8-98245 240-1 | HOSE; RUBBER,TURBOCHARGER OUTLET | 1 | 1104-1408 | ALL | ID=62 L=70 | ||
| 488 | I8-98245 240-1 | HOSE; RUBBER | 1 | 1409- | ALL | ID=62 L=70 | ||
| 013 | I8-94394 656-0 | STUD; EXH PIPE | 1 | 1104-1410 | ALL | M12X103 L=123 | ||
| 092 | I0-28650 840-0 | BOLT; INL PIPE | 1 | 1104- | ALL | (A) M8X40 FLANGE | ||
| 275 | I1-09503 224-0 | WASHER; PL | 3 | 1104- | ALL | ID=12.2 | ||
| 017 | I5-09500 012-0 | WASHER; PL,ADAPTER | 6 | 1104- | ALL | ID=8.4 T=1.4 | ||
| 143 | I8-94126 771-0 | CLIP; HOSE,TURBOCHARGER OUTLET | 2 | 1104- | ALL | ID=58-79 | ||
| 398 | I8-97105 689-A | MOUNTING | 1 | 1104- | ALL | (B) OD=23 | ||
| 020 | I8-98251 577-0 | PIPE; INL,TURBOCHARGER OUT | 1 | 1409- | ALL | (A) | ||
| 016 | I8-94395 767-0 | ADAPTER; EXH PIPE | 1 | 1104-1410 | ALL | |||
| 010 | I1-09556 015-0 | WASHER; LK,TURBOCHARGER | 2 | 1104- | ALL | T=2.2 | ||
| 092 | I0-28650 835-0 | BOLT; INL PIPE | 1 | 1104- | ALL | (B) M8X35 FLANGE | ||
| 398 | I8-94394 529-0 | MOUNTING | 1 | 1104- | ALL | (E) OD=26 | ||
| 001 | I8-98078 779-1 | TURBOCHARGER ASM | 1 | 1104- | ALL | |||
| 265 | I8-94395 764-2 | BRACKET; EXH PIPE | 1 | 1104-1410 | ALL | |||
| 115 | I8-94392 950-0 | PIPE; WATER,TURBOCHARGER OUT | 1 | 1104- | ALL | (B) | ||
| 398 | I8-94394 504-0 | MOUNTING | 1 | 1104- | ALL | (D) ID=13 OD=28 |
