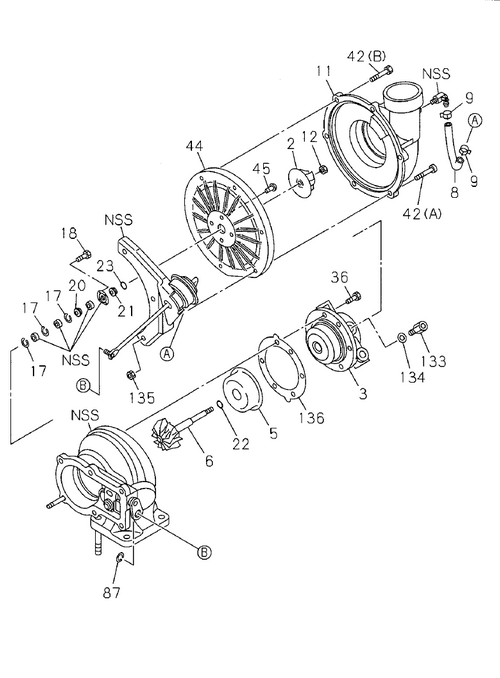

| 006 |
I1-14450 048-0 |
|
SHAFT; TURBINE,TURBOCHARGER |
1 |
1104- |
|
FVZ |
|
| 012 |
I1-09400 041-0 |
|
NUT; LK,TURBINE SHAFT TO IMPELLER,TC |
1 |
1104- |
|
FVZ |
|
| 036 |
I8-97600 259-0 |
|
BOLT; LK PLATE,TURBINE HSG,TURBOCHARGER |
6 |
1104- |
|
FVZ |
|
| 002 |
I8-97603 425-0 |
|
IMPELLER; TURBOCHARGER |
1 |
1104- |
|
FVZ |
|
| 008 |
I8-94387 909-0 |
|
HOSE; ACTUATOR TO BLOWER HSG,TC |
1 |
1104- |
|
FVZ |
|
| 022 |
I1-14453 086-0 |
|
RING; SEAL,TURBINE SIDE,TURBOCHARGER |
1 |
1104- |
|
FVZ |
|
| 018 |
I1-09100 033-0 |
|
SCREW; THRUST BRG,TURBOCHARGER |
3 |
1104- |
|
FVZ |
|
| 044 |
I1-14425 024-0 |
|
PLATE; SEAL,TURBOCHARGER |
1 |
1104- |
|
FVZ |
|
| 017 |
I1-14455 042-0 |
|
RING; JOURNAL BRG,TURBOCHARGER |
3 |
1104- |
|
FVZ |
|
| 042 |
I1-09100 030-0 |
|
BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER |
3 |
1104- |
|
FVZ |
(A) |
| 134 |
I1-09630 084-0 |
|
GASKET; ADAPTER |
1 |
1104- |
|
FVZ |
ID=12.2 OD=17.2 |
| 135 |
I1-09400 127-0 |
|
NUT; BLOWER HOUSING |
3 |
1104- |
|
FVZ |
|
| 042 |
I1-09100 031-0 |
|
BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER |
3 |
1104- |
|
FVZ |
(B) |
| 005 |
I1-14421 024-0 |
|
PROTECTOR; HEAT,TURBOCHARGER |
1 |
1104- |
|
FVZ |
|
| 003 |
I1-14411 054-0 |
|
HOUSING; BRG,TURBOCHARGER |
1 |
1104- |
|
FVZ |
|
| 045 |
I1-09100 032-0 |
|
SCREW; SEAL PLATE,TURBOCHARGER |
4 |
1104- |
|
FVZ |
|
| 087 |
I1-14469 037-0 |
|
RING; ACTUATOR,TURBOCHARGER |
1 |
1104- |
|
FVZ |
|

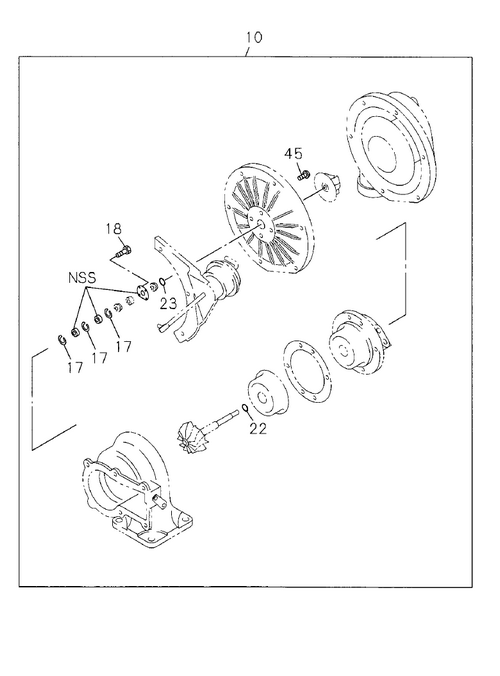

| 010 |
I1-14453 075-0 |
|
REPAIR KIT; TURBOCHARGER |
1 |
1104- |
|
FVZ |
|
| 020 |
I1-14453 084-0 |
|
BUSHING; THRUST,TURBOCHARGER |
1 |
1104- |
|
FVZ |
|
| 136 |
I8-97600 289-0 |
|
GASKET; TURBINE HSG,TURBOCHARGER |
1 |
1104- |
|
FVZ |
|
| 133 |
I1-14469 034-0 |
|
ADAPTER; OIL PIPE |
1 |
1104- |
|
FVZ |
|
| 011 |
I8-98154 221-0 |
|
HOUSING ASM; TURBOCHARGER |
1 |
1104- |
|
FVZ |
|
| 023 |
I1-14453 085-0 |
|
RING; SEAL,BLOWER SIDE,TURBOCHARGER |
1 |
1104- |
|
FVZ |
|
| 021 |
I1-14455 041-0 |
|
THROWER; OIL,TURBOCHARGER |
1 |
1104- |
|
FVZ |
|
| 009 |
I5-09707 057-0 |
|
CLIP; ACTUATOR HOSE,TURBOCHARGER |
2 |
1104- |
|
FVZ |
|
