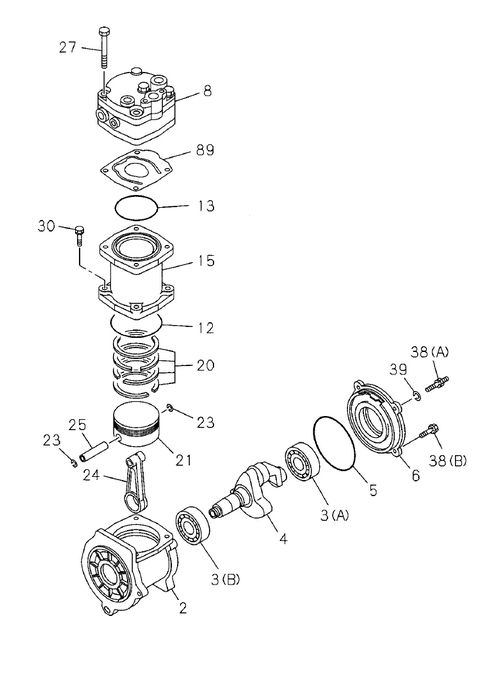

0-39 | AIR COMPRESSOR; BRAKE
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 002 | I1-19151 274-0 | CRANKCASE; AIR CMPR | 1 | 1104- | ALL | |||
| 021 | I1-19161 027-0 | PISTON; AIR CMPR | 1 | 1104- | ALL | |||
| 038 | I8-97617 895-0 | BOLT; COVER FIX | 2 | 1104- | ALL | (B) M8X20 | ||
| 030 | I8-98038 763-0 | BOLT; CYL TO CRANKCASE | 4 | 1104- | ALL | M10X25 | ||
| 025 | I9-19167 003-0 | PIN; PISTON,AIR CMPR | 1 | 1104- | ALL | |||
| 027 | I8-98167 018-0 | BOLT; HD | 4 | 1104- | ALL | M10X75 | ||
| 015 | I8-98038 668-0 | CYLINDER; AIR CMPR | 1 | 1104- | ALL | |||
| 039 | I8-97617 893-0 | WASHER; LK,COVER FIX | 2 | 1104- | ALL | |||
| 003 | I9-00090 152-0 | BEARING; AIR CMPR | 1 | 1104- | ALL | (B) | ||
| 024 | I1-19173 010-0 | ROD ASM; CONN,AIR CMPR | 1 | 1104- | ALL | |||
| 004 | I1-19171 096-0 | CRANKSHAFT; AIR CMPR | 1 | 1104- | ALL | |||
| 005 | I8-98192 460-0 | GASKET; AIR CMPR | 1 | 1108- | ALL | |||
| 012 | I8-98185 684-0 | GASKET; AIR CMPR | 1 | 1108- | ALL | |||
| 013 | I8-98048 640-0 | GASKET; AIR CMPR | 1 | 1108- | ALL | |||
| 023 | I1-19169 004-0 | RING; SNAP,PISTON,AIR CMPR | 2 | 1104- | ALL | |||
| 008 | I8-98167 014-0 | HEAD ASM; CYL,AIR CMPR | 1 | 1104- | ALL | |||
| 038 | I8-97617 894-0 | BOLT; COVER FIX | 2 | 1104- | ALL | (A) | ||
| 089 | I1-19119 045-0 | VALVE; SUCTION | 1 | 1104- | ALL | |||
| 003 | I9-00006 206-0 | BEARING; AIR CMPR | 1 | 1104- | ALL | (A) | ||
| 020 | I8-97522 052-0 | RING KIT; PISTON,AIR CMPR | 1 | 1104- | ALL | |||
| 006 | I1-19156 039-0 | COVER ASM; BRG,AIR CMPR | 1 | 1104- | ALL |
