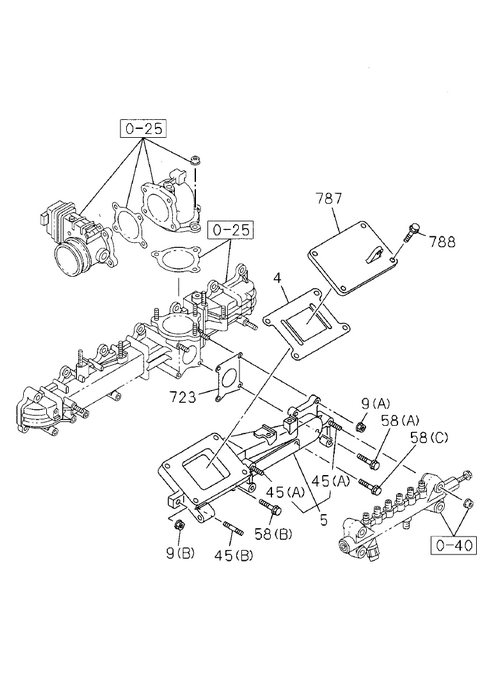

0-57 | EMISSION PIPING
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 058 | I0-28151 030-0 | BOLT; PIPE | 1 | 1104- | ALL | (B) M10X30 FLANGE | ||
| 005 | I8-98240 157-0 | ADAPTER ASM | 1 | 1306- | ALL | |||
| 045 | I0-44011 050-0 | STUD; ADAPTER,EGR | 2 | 1104- | ALL | (A) M10X50 L=65 | ||
| 723 | I8-97605 995-0 | GASKET; REED VLV | 1 | 1104- | ALL | ID=52 | ||
| 788 | I0-28751 025-0 | BOLT; COVER | 4 | 1402-1402 | ALL | M10X25 FLANGE | ||
| 058 | I8-98034 764-0 | BOLT; PIPE | 1 | 1104- | ALL | (A) M8X30 FLANGE | ||
| 787 | I8-98238 416-0 | COVER; DUCT,EGR VLV | 1 | 1402-1402 | ALL | |||
| 009 | I0-91180 108-0 | NUT; EGR ADAPTER | 2 | 1104- | ALL | (A) M8 FLANGE | ||
| 788 | I0-28051 035-0 | BOLT; COVER | 4 | 1104-1401 | ALL | M10X35 FLANGE | ||
| 045 | I0-44011 030-0 | STUD; ADAPTER,EGR | 1 | 1104- | ALL | (B) M10X30 L=45 | ||
| 009 | I0-91180 110-0 | NUT; EGR ADAPTER | 2 | 1104- | ALL | (B) M10 FLANGE | ||
| 058 | I0-28650 830-0 | BOLT; PIPE | 1 | 1104- | ALL | (C) M8X30 FLANGE | ||
| 004 | I8-97608 423-0 | GASKET; EGR VLV | 1 | 1104- | ALL | |||
| 787 | I8-98058 709-0 | COVER; DUCT,EGR VLV | 1 | 1104-1401 | ALL |
