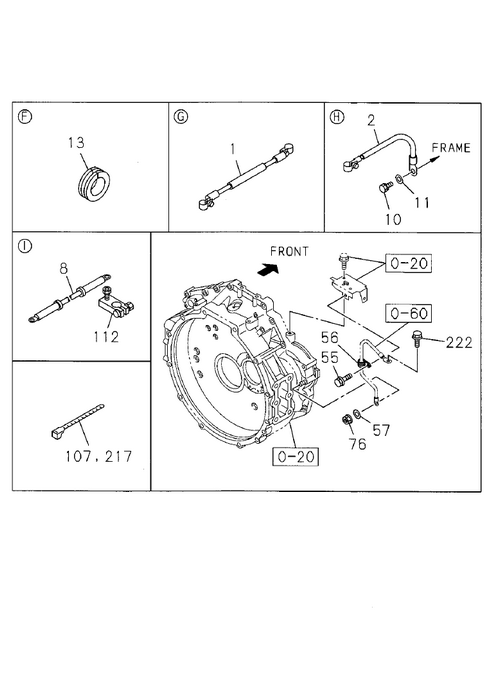

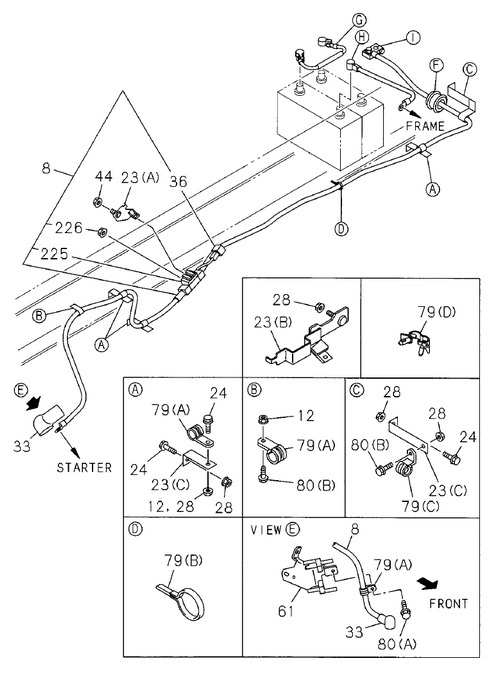

0-61 | BATTERY AND ENGINE ELECTRICAL PARTS
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 055 | I0-28050 816-0 | BOLT; CLIP,BATTERY CABLE | 1 | 1104- | ALL | M8X16 FLANGE | ||
| 061 | I8-98051 379-1 | BRACKET; BATTERY CABLE | 1 | 1104- | ALL | |||
| 023 | I1-82699 085-0 | BRACKET; CABLE CLIP TO FRAME | 1 | 1104- | ALL | (C) L=95 H=25 | ||
| 013 | I1-09332 112-0 | GROMMET; BATTERY CABLE | 1 | 1104- | ALL | ID=32 OD=40 T=23 | ||
| 002 | I8-98035 647-A | CABLE; BATTERY | 1 | 1104- | ALL | L=280 | ||
| 226 | I8-98297 112-0 | NUT; FUSIBLE LINK | 1 | 1503- | ALL | M6 FLANGE STAINLESS | ||
| 028 | I7-05110 010-A | NUT; BRKT TO FRAME | 1 | 1402- | FVZ | (B) M10 FLANGE ; MIXER | ||
| 044 | I7-05110 010-A | NUT; BRKT | 1 | 1104- | ALL | M10 FLANGE | ||
| 079 | I1-09700 485-0 | CLIP; BATTERY CABLE | 1 | 1104- | FVZ | (B) ID=20 L=70 | ||
| 008 | I8-98295 236-0 | CABLE; BATTERY,STARTER | 1 | 1402- | FVZ | MIXER | ||
| 033 | I1-82699 431-0 | CAP; INSULATOR | 1 | 1104- | ALL | |||
| 008 | I8-98295 237-0 | CABLE; BATTERY,STARTER | 1 | 1404- | GVZ | |||
| 225 | I8-98029 689-0 | BLOCK; TERMINAL | 1 | 1104- | ALL | |||
| 054 | I1-09707 176-1 | CLIP; BAND,BATTERY CABLE | 1 | 1404-1502 | GVZ | L=175 | ||
| 222 | I8-94279 219-0 | BOLT; EARTH CABLE | 1 | 1104- | ALL | M10X25 W/LK&PL WASHER | ||
| 226 | I8-94424 179-0 | NUT; FUSIBLE LINK | 1 | 1104-1502 | ALL | M6 W/LK WASHER | ||
| 024 | I0-28650 830-0 | BOLT; BRKT TO FRAME | 3 | 1104- | ALL | M8X30 FLANGE | ||
| 080 | I0-28650 825-0 | BOLT; BATTERY CABLE CLIP | 3 | 1104- | ALL | (A) M8X25 FLANGE | ||
| 057 | I0-91610 610-0 | WASHER; PL,BATTERY CABLE | 1 | 1104- | ALL | ID=10.5 OD=22 T=1.6 | ||
| 079 | I1-09701 216-0 | CLIP; BATTERY CABLE | 1 | 1104- | ALL | (E) ID=16 L=28 | ||
| 036 | I8-97615 498-1 | FUSIBLE LINK; BATTERY | 1 | 1104- | ALL | |||
| 011 | I1-09503 265-0 | WASHER; BATTERY CABLE EARTH | 1 | 1104- | ALL | ID=10.5 OD=22 T=2.0 | ||
| 217 | I5-09707 030-1 | CLIP; BAND,CABLE | 1 | 1104- | FVZ | L=250 | ||
| 028 | I0-91180 108-0 | NUT; BRKT TO FRAME | 5 | 1104-1105 | ALL | (A) M8 FLANGE | ||
| 079 | I1-09700 109-1 | CLIP; BATTERY CABLE | 1 | 1104- | ALL | (C) ID=19 L=24 H=21 | ||
| 079 | I8-98019 191-0 | CLIP; BATTERY CABLE | 2 | 1104- | ALL | (A) ID=21 L=24 | ||
| 076 | I7-05110 010-A | NUT; BATTERY CABLE | 1 | 1104- | ALL | M10 FLANGE | ||
| 023 | I1-53441 518-0 | BRACKET; CABLE CLIP TO FRAME | 1 | 1104- | ALL | (D) L=145 H=40 | ||
| 023 | I8-98044 882-0 | BRACKET; CABLE CLIP TO FRAME | 1 | 1104- | ALL | (A) | ||
| 001 | I8-98025 412-A | CABLE; BATTERY | 1 | 1104- | ALL | L=280 | ||
| 023 | I8-98085 160-4 | BRACKET; CABLE CLIP TO FRAME | 1 | 1104-1105 | ALL | (B) | ||
| 023 | I1-82699 085-0 | BRACKET; CABLE CLIP TO FRAME | 1 | 1104- | ALL | (E) L=95 H=25 | ||
| 080 | I0-28050 816-0 | BOLT; BATTERY CABLE CLIP | 1 | 1104- | ALL | (B) M8X16 FLANGE | ||
| 056 | I1-09701 216-0 | CLIP; BATTERY CABLE | 1 | 1104- | ALL | ID=16 L=28 | ||
| 079 | I1-09709 293-0 | CLIP; BATTERY CABLE | 3 | 1104- | FVZ | (D) ID=13-18 L=26 | ||
| 010 | I8-94279 219-0 | BOLT; BATTERY CABLE CLIP | 1 | 1104- | ALL | M10X25 W/LK&PL WASHER | ||
| 107 | I5-09707 031-1 | CLIP; BAND | 1 | 1104- | ALL | L=140 | ||
| 023 | I8-98091 358-0 | BRACKET; CABLE CLIP TO FRAME | 1 | 1402- | FVZ | (F) MIXER | ||
| 008 | I8-98182 518-A | CABLE; BATTERY,STARTER | 1 | 1104- | FVZ | EXC. MIXER | ||
| 023 | I1-47475 304-0 | BRACKET; CABLE CLIP TO FRAME | 1 | 1104- | ALL | (C) L=55 H=25 | ||
| 012 | I0-91180 108-0 | NUT; BATTERY CABLE CLIP | 3 | 1104- | ALL | M8 FLANGE | ||
| 112 | I8-97365 771-0 | TERMINAL; BATTERY | 1 | 1104-1408 | ALL |
