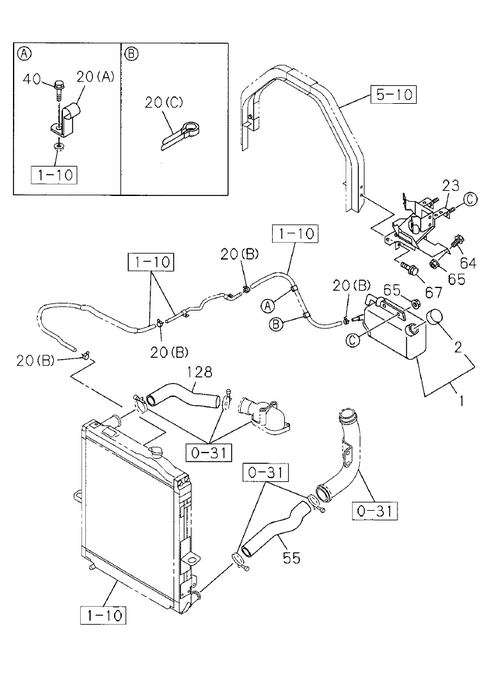

1-11 | RADIATOR HOSE AND SUB TANK
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 001 | I8-98171 757-0 | TANK; SURGE,RAD | 1 | 1104- | ALL | |||
| 020 | I9-09917 430-0 | CLIP; HOSE,RAD | 1 | 1104- | ALL | (C) ID=20 L=50 | ||
| 002 | I8-98178 074-0 | CAP; SURGE TANK | 1 | 1104- | ALL | |||
| 128 | I8-98010 578-1 | HOSE; WATER,RAD INL | 1 | 1104- | ALL | |||
| 023 | I8-98049 965-4 | BRACKET; RESERVE TANK | 1 | 1104- | ALL | |||
| 064 | I1-09030 093-0 | BOLT; BRKT,SUB TANK | 1 | 1104- | ALL | M8X25 W/LK&PL WASHER | ||
| 128 | I6-98010 578-0 | HOSE; WATER,RAD INL | 1 | 1104- | ALL | (IADG) | ||
| 040 | I0-28650 820-0 | BOLT; CLIP | 1 | 1104- | ALL | M8X20 FLANGE | ||
| 055 | I6-98079 430-0 | HOSE; WATER,RAD OUTLET | 1 | 1104- | ALL | (IADG) | ||
| 067 | I0-28650 820-0 | BOLT; BRKT | 3 | 1104- | ALL | M8X20 FLANGE | ||
| 065 | I0-91180 108-0 | NUT; BRKT,SUB TANK | 3 | 1104- | ALL | M8 FLANGE | ||
| 020 | I8-97375 638-0 | CLIP; HOSE,RAD | 4 | 1104- | ALL | (B) ID=11.5 | ||
| 055 | I8-98079 430-1 | HOSE; WATER,RAD OUTLET | 1 | 1104- | ALL | |||
| 020 | I1-09700 620-0 | CLIP; HOSE,RAD | 1 | 1104- | ALL | (A) ID=13 H=40 L=25 |
