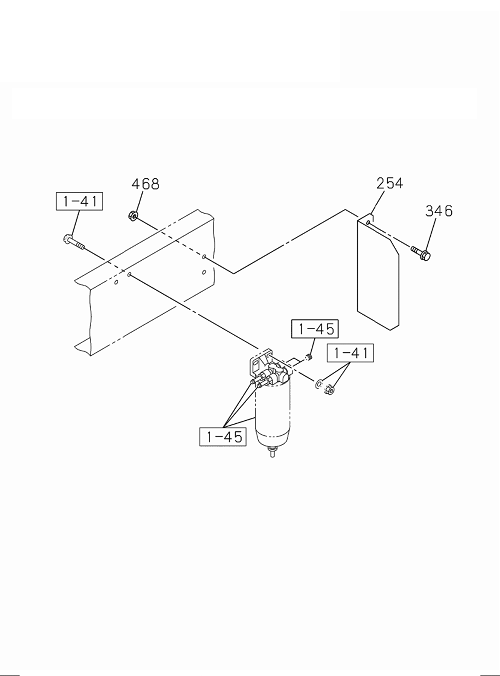

| 346 |
I0-28651 035-0 |
|
BOLT; GUARD |
2 |
1312- |
|
FVZ |
M10X35 FLANGE ; DUMP |
| 045 |
I0-28651 240-0 |
|
BOLT; BRKT,FUEL TANK |
8 |
1201- |
|
ALL |
(C) M12X40 FLANGE |
| 011 |
I8-94152 613-A |
|
PLUG; DRAIN,FUEL TANK |
2 |
1104-1112 |
|
FVZ |
(A) M14X14 |
| 011 |
I0-92002 418-0 |
|
PLUG; DRAIN,FUEL TANK |
1 |
1201-1504 |
|
ALL |
(C) M18X12 |
| 468 |
I7-05110 010-A |
|
NUT |
2 |
1312- |
|
FVZ |
M10 FLANGE ; DUMP |
| 011 |
I8-98068 006-0 |
|
PLUG; DRAIN,FUEL TANK |
1 |
1505- |
|
ALL |
(C) M18X11 |
| 040 |
I8-98042 715-1 |
|
BELT; SUPPORT,FUEL TANK |
2 |
1201- |
|
ALL |
(B) L=880 |
| 640 |
I8-98092 398-0 |
|
VENTILATOR; HOSE,BREATHER |
1 |
1201- |
|
ALL |
|
| 158 |
I8-98067 039-0 |
|
VALVE; ROLL OVER & FLOAT |
2 |
1201- |
|
ALL |
|
| 369 |
I8-98067 080-0 |
|
JOINT; HOSE |
1 |
1201- |
|
ALL |
|
| 040 |
I1-22550 204-2 |
|
BELT; SUPPORT,FUEL TANK |
2 |
1104-1112 |
|
FVZ |
(A) L=1030 |
| 656 |
I8-98304 416-0 |
|
CLAMP; FUEL TANK |
6 |
1505- |
|
ALL |
|
| 022 |
I8-98296 671-0 |
|
UNIT; FUEL TANK |
1 |
1506- |
|
FVZ |
(A) |
| 237 |
I1-22553 010-0 |
|
GASKET; BRKT TO FUEL TANK |
2 |
1104-1112 |
|
FVZ |
L=580 |
| 042 |
I0-91110 510-0 |
|
NUT; SUPPORT BELT |
4 |
1104-1112 |
|
FVZ |
(A) M10 |
| 019 |
I5-83148 001-0 |
|
GASKET; FUEL TANK UNIT |
1 |
1104- |
|
ALL |
ID=42 OD=71 |
| 022 |
I8-98099 320-0 |
|
UNIT; FUEL TANK |
1 |
1201- |
|
ALL |
(B) |
| 043 |
I8-98182 493-0 |
|
BRACKET; FUEL TANK |
1 |
1104-1112 |
|
FVZ |
(B) REAR |
| 001 |

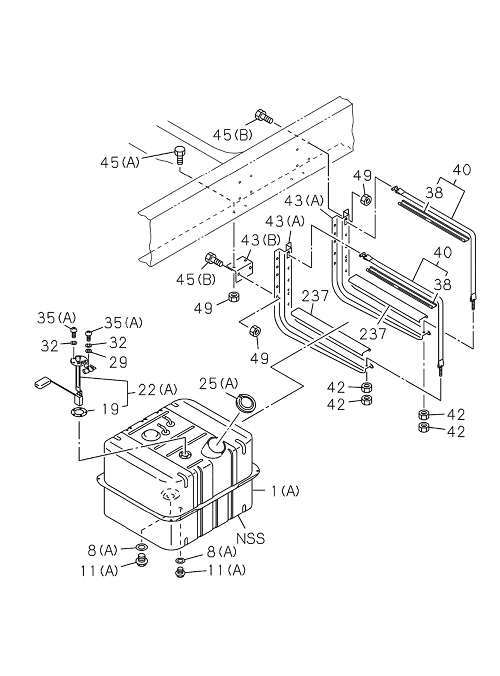

I8-98299 286-0 |
|
TANK; FUEL |
1 |
1506- |
|
FVZ |
(A) 720X610X496 200L |
| 001 |

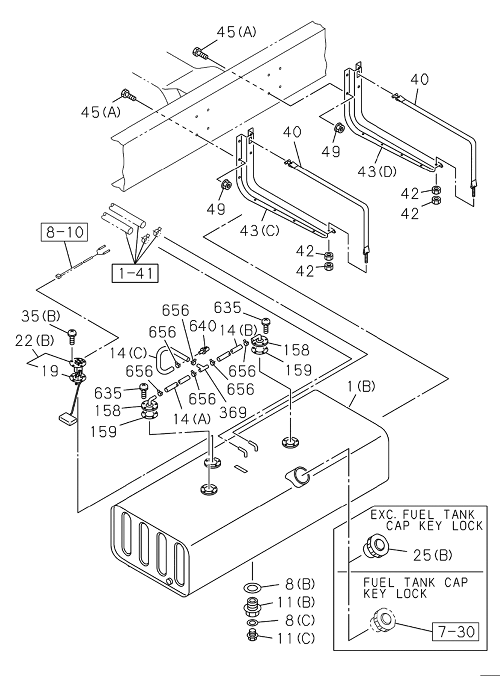

I7-56200 311-B |
|
TANK; FUEL |
1 |
1201- |
|
ALL |
(B) 1345X532X322 200L |
| 008 |
I9-09571 418-0 |
|
GASKET; DRAIN PLUG,FUEL TANK |
1 |
1201- |
|
ALL |
(C) ID=18.2 OD=26.0 |
| 035 |
I0-34218 510-0 |
|
SCREW; FUEL TANK UNIT |
5 |
1104-1112 |
|
FVZ |
(A) M5X10 |
| 045 |
I0-28651 235-0 |
|
BOLT; BRKT,FUEL TANK |
12 |
1104-1112 |
|
FVZ |
(B) M12X35 FLANGE |
| 008 |
I9-09572 014-0 |
|
GASKET; DRAIN PLUG,FUEL TANK |
2 |
1104-1112 |
|
FVZ |
(A) ID=14.2 OD=23.0 |
| 035 |
I0-36220 512-0 |
|
SCREW; FUEL TANK UNIT |
5 |
1201- |
|
ALL |
(B) M5X12 W/LK WASHER |
| 008 |
I8-98067 041-0 |
|
GASKET; DRAIN PLUG,FUEL TANK |
1 |
1201- |
|
ALL |
(B) ID=30 |
| 014 |
I0-01256 300-0 |
|
HOSE; BREATHER,OUTLET |
1 |
1201-1504 |
|
ALL |
L=90 |
| 001 |
I8-98299 286-0 |
|
TANK; FUEL |
1 |
1104-1112 |
|
FVZ |
|
| 025 |
I1-22440 046-1 |
|
CAP; FILLER,FUEL TANK |
1 |
1104-1112 |
|
FVZ |
|
| 032 |
I0-91510 505-0 |
|
WASHER; LK,FUEL TANK UNIT |
5 |
1104-1112 |
|
FVZ |
ID=5.1 |
| 045 |
I0-28051 250-0 |
|
BOLT; BRKT,FUEL TANK |
4 |
1104-1112 |
|
FVZ |
(A) M12X50 FLANGE |
| 159 |
I1-83149 003-0 |
|
SEAL; ROLL OVER & FLOAT VALVE |
2 |
1201- |
|
ALL |
ID=45 OD=67 |
| 042 |
I0-91110 512-0 |
|
NUT; SUPPORT BELT |
4 |
1201- |
|
ALL |
(B) M12 |
| 011 |
I8-98067 038-0 |
|
PLUG; DRAIN,FUEL TANK |
1 |
1201- |
|
ALL |
(B) M30 |
| 043 |
I8-98122 883-0 |
|
BRACKET; FUEL TANK |
1 |
1201- |
|
ALL |
(D) |
| 043 |
I8-98088 123-0 |
|
BRACKET; FUEL TANK |
1 |
1201- |
|
ALL |
(C) |
| 043 |
I8-98185 667-0 |
|
BRACKET; FUEL TANK |
2 |
1203- |
|
FVZ |
(A) |
| 029 |
I0-91610 505-0 |
|
WASHER; PL,FUEL TANK UNIT |
1 |
1104-1112 |
|
FVZ |
ID=5.3 |
| 038 |
I1-22553 025-1 |
|
INSULATION; SUPPORT BELT |
2 |
1104-1112 |
|
FVZ |
L=650 |
| 049 |
I0-91180 212-0 |
|
NUT; BRKT |
8 |
1201- |
|
ALL |
M12 FLANGE |
| 043 |
I8-98182 492-0 |
|
BRACKET; FUEL TANK |
1 |
1104-1112 |
|
FVZ |
(B) FRONT |
| 635 |
I0-36220 512-0 |
|
SCREW; ROLL OVER & FLOAT VALVE |
10 |
1201- |
|
ALL |
M5X12 W/LK WASHER |
| 254 |
I8-98233 611-0 |
|
GUARD |
1 |
1312- |
|
FVZ |
DUMP |
