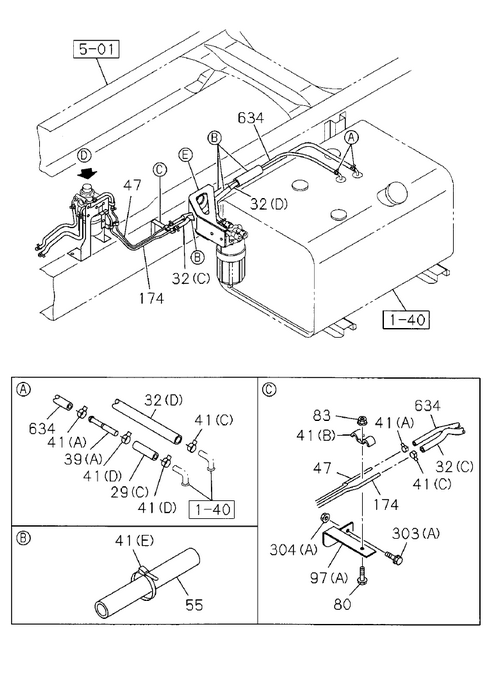

1-41 | FUEL PIPING; CHASSIS
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 032 | I7-00110 105-A | PIPE; DELIVERY FUEL TANK | 1 | 1104- | ALL | (D) | ||
| 039 | I1-09660 548-0 | PIPE; FUEL | 1 | 1404-1703 | GVZ | (C) NPTF3/8 & RC3/8 | ||
| 083 | I0-91180 108-0 | NUT; CLIP,FUEL TANK | 5 | 1104- | ALL | M8 | ||
| 029 | I0-01259 300-0 | HOSE; FUEL | 1 | 1104- | ALL | (C) L=60 | ||
| 304 | I7-05110 010-A | NUT; BRKT | 2 | 1104- | ALL | (B) M10 FLANGE | ||
| 097 | I8-98126 612-0 | BRACKET; CLIP | 1 | 1104- | FVZ | (A) B10 DIESEL - EXC. MIXER | ||
| 032 | I0-01260 300-0 | PIPE; DELIVERY FUEL TANK | 1 | 1104- | ALL | (B) L=110 SERVICED BY L=3000 | ||
| 067 | I8-98286 080-A | HOSE; FUEL,DELIVERY | 1 | 1704- | FVZ | (C) L=1890 ; B10 DIESEL - EXC. MIXER | ||
| 029 | I8-98078 197-A | HOSE; FUEL | 1 | 1104- | ALL | (B) ID=7.5 OD=13.5 | ||
| 039 | I1-09650 447-0 | PIPE; FUEL | 1 | 1404-1703 | GVZ | (D) M16 & NPTF3/8 ELBOW | ||
| 039 | I1-09650 233-1 | PIPE; FUEL | 1 | 1404-1703 | GVZ | (B) M16 & PT3/8 STRAIGHT | ||
| 032 | I0-01558 300-0 | PIPE; DELIVERY FUEL TANK | 1 | 1104- | ALL | (A) L=210 SERVICED BY L=3000 | ||
| 047 | I8-98117 709-A | PIPE; FUEL,RETURN | 1 | 1104- | FVZ | L=539 ; EXC. B10 DIESEL | ||
| 041 | I1-09701 317-0 | CLIP; FUEL PIPE,FUEL TANK | 2 | 1704- | ALL | (F) ID=15 & 19 H=33 L=25 ; B10 DIESEL - EXC. MIXER | ||
| 055 | I1-09360 677-1 | COVER; PIPE,FUEL TANK | 4 | 1104- | ALL | L=150 | ||
| 228 | I0-28051 060-0 | BOLT; BRKT,SEDIMENTER | 2 | 1312- | FVZ | (B) M10X60 FLANGE ; DUMP ; LWB | ||
| 067 | I0-01558 300-0 | HOSE; FUEL,DELIVERY | 1 | 1104- | ALL | (B) L=210 | ||
| 041 | I8-98008 098-0 | CLIP; FUEL PIPE,FUEL TANK | 4 | 1201- | ALL | (D) ID=16 ; B10 DIESEL | ||
| 303 | I0-28651 035-0 | BOLT; BRKT | 2 | 1104- | GVZ | M10X35 FLANGE | ||
| 067 | I0-01260 300-0 | HOSE; FUEL,DELIVERY | 1 | 1104- | ALL | (A) L=110 | ||
| 067 | I8-98250 603-0 | HOSE; FUEL,DELIVERY | 1 | 1402-1703 | FVZ | (C) L=1000 ; B10. DIESEL - MIXER | ||

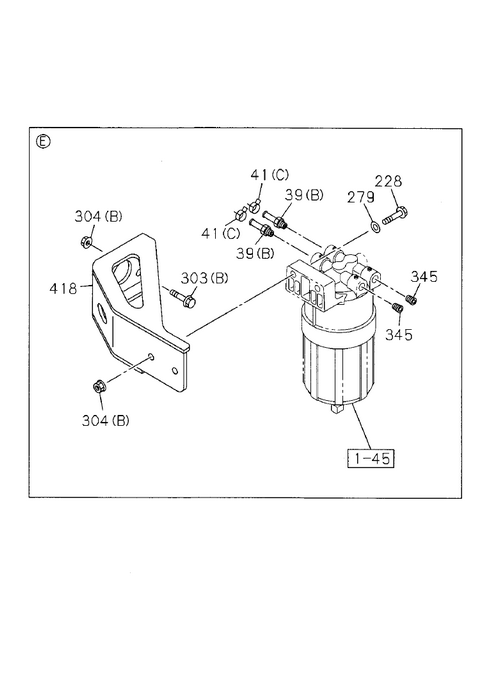

| 418 | I8-98136 381-0 | BRACKET; PRE FUEL FILTER | 1 | 1404-1407 | GVZ | |||
| 418 | I8-98128 254-A | BRACKET; PRE FUEL FILTER | 1 | 1104- | FVZ | MIXER ; EXC. B10 DIESEL | ||
| 228 | I0-28051 050-0 | BOLT; BRKT,SEDIMENTER | 2 | 1104- | ALL | (D) M10X50 FLANGE | ||
| 228 | I0-28650 820-0 | BOLT; BRKT,SEDIMENTER | 2 | 1104- | ALL | (C) M8X20 FLANGE | ||
| 029 | I8-98156 579-A | HOSE; FUEL | 1 | 1104- | ALL | (A) ID=9.3 OD=17 ; B10 DIESEL | ||
| 080 | I0-28650 820-0 | BOLT; CLIP,FUEL TANK | 3 | 1104- | ALL | (A) M8X20 FLANGE | ||
| 634 | I0-01558 300-0 | HOSE; RUBBER RETURN | 1 | 1404-1703 | ALL | L=1100 ; B10 DIESEL | ||
| 047 | I8-98248 097-0 | PIPE; FUEL,RETURN | 1 | 1404-1703 | GVZ | L=987 ; B10 DIESEL | ||

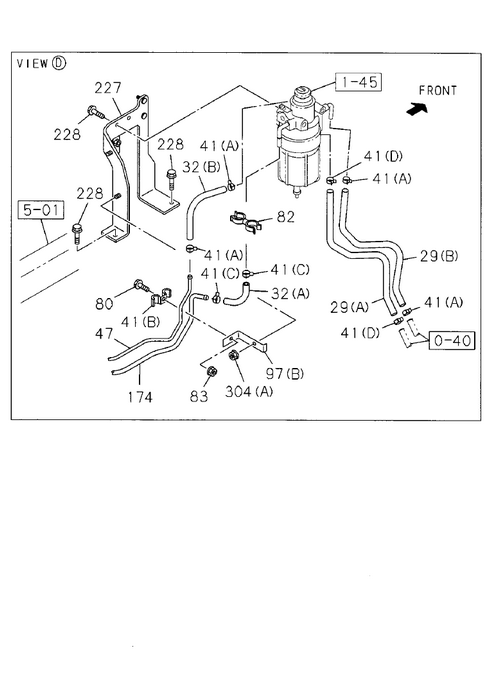

| 227 | I8-98044 366-3 | BRACKET; FUEL SEDIMENTER | 1 | 1104- | ALL | |||
| 304 | I0-91180 108-0 | NUT; BRKT | 1 | 1104- | ALL | (A) M8 FLANGE | ||
| 174 | I8-98248 098-A | PIPE; FUEL,FEED,FRT | 1 | 1404-1703 | GVZ | L=489 | ||
| 279 | I0-91614 710-0 | WASHER | 2 | 1104- | ALL | ID=10.5 OD=26 | ||
| 634 | I8-98250 604-0 | HOSE; RUBBER RETURN | 1 | 1402-1703 | ALL | L=1080 ; EXC. B10 DIESEL - MIXER | ||
| 039 | I8-98122 953-A | PIPE; FUEL | 2 | 1104- | ALL | (A) NPTF3/8-18 OD=10 | ||
| 067 | I8-98157 878-A | HOSE; FUEL,DELIVERY | 1 | 1104- | FVZ | (D) L=300 ; B10 DIESEL - MIXER | ||
| 041 | I1-09700 688-0 | CLIP; FUEL PIPE,FUEL TANK | 2 | 1104- | ALL | (B) ID=11 & 9 L=17.5 & 17.5 | ||
| 097 | I8-98053 654-0 | BRACKET; CLIP | 1 | 1104- | ALL | (B) | ||
| 174 | I8-98117 708-A | PIPE; FUEL,FEED,FRT | 1 | 1104- | FVZ | L=548 ; EXC. MIXER | ||
| 041 | I5-09707 030-1 | CLIP; FUEL PIPE,FUEL TANK | 3 | 1104- | ALL | (E) L=250 | ||
| 041 | I1-09701 018-0 | CLIP; FUEL PIPE,FUEL TANK | 1 | 1704- | ALL | (F) ID=24X2 H=35.5 L=49 ; B10 DIESEL - EXC. MIXER | ||
| 067 | I8-98346 186-A | HOSE; FUEL,DELIVERY | 1 | 1704- | FVZ | (C) L=940 ; B10 DIESEL - EXC. MIXER | ||
| 345 | I8-97329 623-0 | PLUG | 2 | 1104- | ALL | NPTF3/8-18 | ||
| 041 | I8-98150 357-0 | CLIP; FUEL PIPE,FUEL TANK | 6 | 1104- | ALL | (A) ID=13 | ||
| 032 | I8-98157 878-A | PIPE; DELIVERY FUEL TANK | 1 | 1104- | ALL | (C) L=300 | ||
| 097 | I8-97639 488-0 | BRACKET; CLIP | 1 | 1704- | FVZ | (A) B10 DIESEL - MIXER | ||
| 634 | I7-00108 114-A | HOSE; RUBBER RETURN | 1 | 1104- | FVZ | |||
| 174 | I8-98248 096-A | PIPE; FUEL,FEED,FRT | 1 | 1404-1703 | GVZ | L=1089 | ||
| 082 | I8-94169 028-0 | CLIP; FUEL HOSE | 1 | 1104- | ALL | ID=13 & 16.5 | ||
| 303 | I0-28650 835-0 | BOLT; BRKT | 2 | 1104- | FVZ | M8X35 FLANGE | ||
| 080 | I0-28650 830-0 | BOLT; CLIP,FUEL TANK | 1 | 1402- | FVZ | (B) M8X30 ; MIXER | ||
| 228 | I0-28050 825-0 | BOLT; BRKT,SEDIMENTER | 2 | 1104- | ALL | (A) M8X25 FLANGE | ||
| 041 | I1-09704 102-0 | CLIP; FUEL PIPE,FUEL TANK | 6 | 1104- | ALL | (C) ID=14 ; EXC. B10 DIESEL | ||
| 067 | I0-01260 300-0 | HOSE; FUEL,DELIVERY | 1 | 1104- | FVZ | (C) L=960 | ||
| 634 | I8-98211 102-0 | HOSE; RUBBER RETURN | 1 | 1201- | FVZ | |||
| 041 | I1-09701 101-0 | CLIP; FUEL PIPE,FUEL TANK | 1 | 1402-1703 | FVZ | (F) ID=14X2 H=25 L=30 ; EXC. B10 DIESEL - MIXER |
