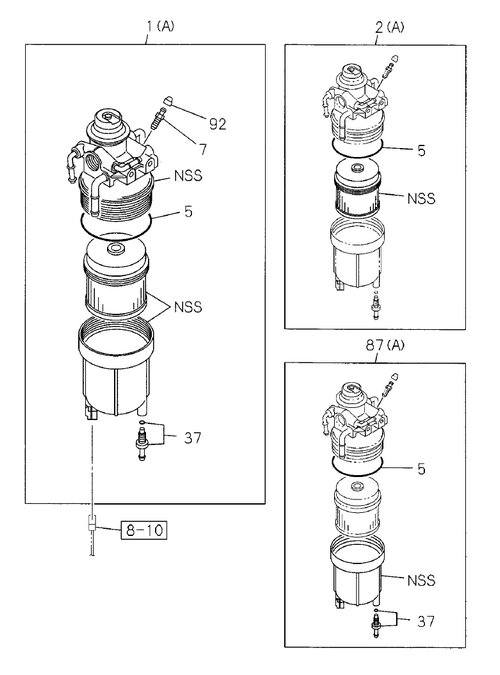

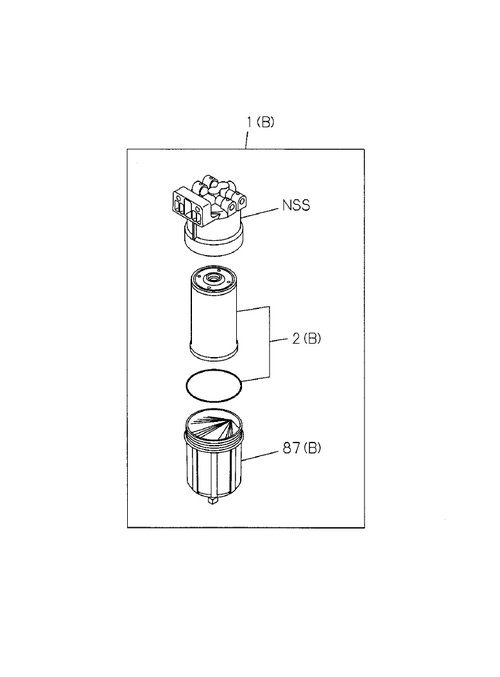

1-45 | WATER SEDIMENTER; FUEL
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 037 | I8-98037 095-0 | PLUG; SENSOR | 1 | 1104- | ALL | |||
| 002 | I8-98092 481-1 | ELEMENT; FUEL FILTER | 1 | 1104- | ALL | (B) | ||
| 002 | I8-98162 897-A | ELEMENT; FUEL FILTER | 1 | 1112- | ALL | (A) | ||
| 001 | I8-97542 536-0 | SEDIMENTER; FUEL | 1 | 1104- | ALL | (A) | ||
| 007 | I8-98034 312-0 | PLUG; DRAIN,SEDIMENTER | 1 | 1104- | ALL | M8X10 | ||
| 005 | I8-98203 600-0 | GASKET; UPR COVER,SEDIMENTER | 1 | 1112- | ALL | |||
| 001 | I8-98086 193-1 | SEDIMENTER; FUEL | 1 | 1104- | ALL | (B) | ||
| 092 | I8-98034 314-0 | CAP; DRAIN | 1 | 1104- | ALL | |||
| 087 | I8-98092 482-1 | CASE ASM; SEDIMENTER | 1 | 1104- | ALL | (B) | ||
| 002 | I8-98092 481-A | ELEMENT; FUEL FILTER | 1 | 1104- | ALL | (IADG) (B) | ||
| 087 | I8-98039 987-1 | CASE ASM; SEDIMENTER | 1 | 1104- | ALL | (A) |
