2-20 | MANUAL TRANSMISSION ASM AND CASE
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 037 | I1-09625 002-0 | SEAL; DUST,CLU HSG | 2 | 1104-1309 | ALL | |||
| 264 | IE-81089 000-0 | BOLT; OIL PUMP | 8 | 1310- | GVZ | |||
| 435 | I1-33111 372-0 | CASE; TRANS | 1 | 1104- | FVZ | (B) | ||
| 245 | I1-33119 517-0 | PIPE; OIL | 1 | 1104-1607 | FVZ | |||
| 446 | IE-88763 520-0 | PLUG; CASE,TRANS | 1 | 1310- | GVZ | |||
| 329 | I1-34150 123-0 | PUMP ASM; OIL | 1 | 1104- | FVZ | |||
| 651 | I1-82698 630-0 | BRACKET; T/M HARNESS | 1 | 1312- | GVZ | (A) | ||
| 113 | I8-98361 933-0 | GASKET; FRT COVER TO TRANS CASE | 1 | 1104- | FVZ | |||
| 086 | I1-33119 594-0 | BOLT; RR COVER | 4 | 1104- | FVZ | (B) M12X25 ; EXC. PTO TRANS | ||
| 271 | I0-91180 108-0 | NUT; CLIP | 1 | 1104- | FVZ | M8 FLANGE | ||
| 090 | I1-33159 046-0 | SEAL; OIL,RR COVER | 1 | 1310- | GVZ | |||
| 309 | I1-33119 596-0 | EYE; LIFTING | 1 | 1310- | GVZ | (A) | ||
| 006 | I1-33119 571-0 | NUT; CASE,TRANS | 15 | 1310- | GVZ | |||
| 321 | I1-33119 520-0 | PLATE; NAME | 1 | 1104- | FVZ | (B) | ||
| 315 | I1-33119 595-0 | BOLT; CASE | 1 | 1310- | GVZ | M10X58 FLANGE | ||
| 236 | I1-33119 550-0 | BOLT; VALVE BRKT | 1 | 1310- | GVZ | (B) | ||
| 086 | I1-33119 616-0 | BOLT; RR COVER | 12 | 1104- | FVZ | (A) M10X70 | ||
| 165 | IE-88815 380-0 | ADAPTER; STRAIGHT | 2 | 1310- | GVZ | |||
| 082 | I1-34539 113-0 | PLUG; SCREW,CASE | 2 | 1104- | FVZ | (C) | ||
| 434 | I1-31110 188-2 | HOUSING; CLU | 1 | 1310- | GVZ | |||
| 033 | IE-88707 600-0 | SEAL; OIL,FRT COVER,T/M | 1 | 1310- | GVZ | |||
| 700 | IE-88763 530-0 | STRAINER ASM | 1 | 1310- | GVZ | |||
| 086 | I1-33119 611-0 | BOLT; RR COVER | 4 | 1310- | GVZ | (B) | ||
| 399 | I8-98205 634-0 | BRACKET; CLIP | 1 | 1404- | GVZ | (C) | ||
| 314 | I8-98361 933-0 | GASKET; CASE | 1 | 1104- | FVZ | (A) | ||
| 315 | I1-33119 616-0 | BOLT; CASE | 17 | 1104- | FVZ | M10X70 | ||
| 086 | I1-33119 614-0 | BOLT; RR COVER | 1 | 1310- | GVZ | (D) | ||
| 186 | I1-33119 286-0 | RING; SEAL | 2 | 1104- | FVZ | (B) | ||
| 419 | I1-33119 615-0 | PLUG; RR COVER | 1 | 1310- | GVZ | |||
| 431 | IE-88815 450-0 | TUBE; NYLON | 2 | 1310- | GVZ | |||
| 045 | IE-88805 190-0 | GASKET; FILLER PLUG | 1 | 1310- | GVZ | |||
| 123 | IE-88705 430-0 | DOWEL; TRANS CASE | 2 | 1310- | GVZ | |||
| 307 | IE-88713 770-0 | BUSHING; SHIFT FORK SHAFT | 1 | 1310- | GVZ | (A) | ||
| 024 | I8-98284 107-0 | COVER; CHECK HOLE,DUST | 1 | 1411- | GVZ | |||
| 082 | I1-33119 620-0 | PLUG; SCREW,CASE | 2 | 1104- | FVZ | (B) | ||
| 417 | IE-88749 410-0 | PLUG; OIL FILLER,TRANS | 1 | 1310- | GVZ | |||
| 027 | I0-28050 816-0 | BOLT; COVER TO CLU HSG | 2 | 1310- | GVZ | M8X16 FLANGE | ||
| 123 | I1-33119 292-0 | DOWEL; TRANS CASE | 4 | 1104- | FVZ | |||
| 421 | I1-33131 275-0 | COVER; RR,TRANS | 1 | 1306- | FVZ | |||
| 167 | I1-33119 599-0 | BRACKET; CLIP,AIR TUBE | 1 | 1310- | GVZ | |||

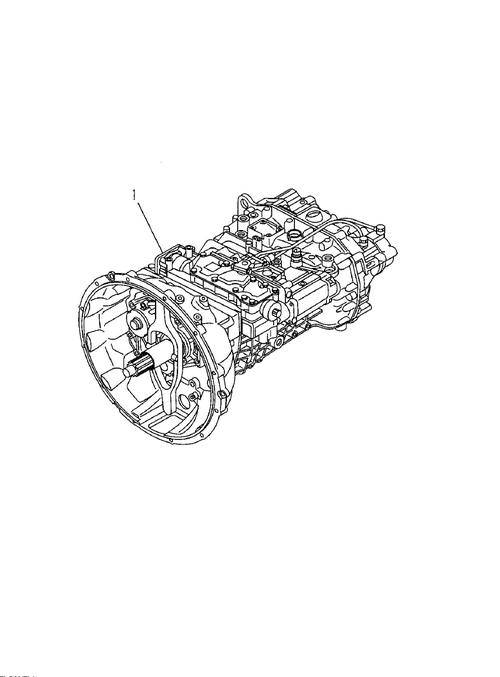

| 001 | I8-98183 351-1 | TRANSMISSION ASM; MANUAL | 1 | 1312-1709 | FVZ | |||
| 086 | I8-98367 929-0 | BOLT; RR COVER | 2 | 1608- | FVZ | (F) M10X85 | ||
| 332 | I1-33119 437-0 | FILTER; OIL | 1 | 1104- | FVZ | |||
| 307 | IE-88824 150-0 | BUSHING; SHIFT FORK SHAFT | 2 | 1310- | GVZ | (B) | ||
| 429 | IE-88705 420-0 | PIN; STRAIGHT | 2 | 1310- | GVZ | (A) | ||
| 353 | I1-09707 183-0 | CLIP; NYLON TUBE | 3 | 1104- | FVZ | EXC. PTO CONTROL<SV6> (A) L=350 | ||
| 353 | I1-09700 606-0 | CLIP; NYLON TUBE | 1 | 1104- | FVZ | (B) ID=15 H=24 L=20 | ||
| 618 | I8-97655 659-0 | GASKET | 1 | 1312- | GVZ | |||
| 086 | IE-81080 000-0 | BOLT; RR COVER | 16 | 1310- | GVZ | (A) M10X58 | ||
| 303 | I1-87411 007-0 | TUBE; NYLON | 1 | 1402- | FVZ | OD=8 ; MIXER | ||
| 353 | I5-09707 031-1 | CLIP; NYLON TUBE | 1 | 1310- | GVZ | (B) L=140 | ||
| 180 | I1-33119 598-0 | CONNECTOR; NYLON TUBE | 1 | 1310- | GVZ | (B) | ||
| 315 | IE-81079 000-0 | BOLT; CASE | 4 | 1310- | GVZ | M10X40 | ||
| 651 | I8-98098 890-0 | BRACKET; T/M HARNESS | 1 | 1312- | GVZ | (B) | ||
| 028 | I1-33121 166-0 | COVER; FRT,TRANS CASE | 1 | 1104- | FVZ | |||
| 024 | I1-31131 041-0 | COVER; CHECK HOLE,DUST | 1 | 1310-1410 | GVZ | |||
| 062 | I1-33132 076-0 | GASKET; RR COVER | 1 | 1104- | FVZ | (B) | ||
| 314 | I1-33379 021-0 | GASKET; CASE | 1 | 1104- | FVZ | (B) | ||
| 036 | I1-09811 396-0 | BEARING; NEEDLE,CLU HSG | 4 | 1104- | FVZ | |||
| 561 | I1-31119 047-0 | PLUG | 1 | 1104-1305 | FVZ | (D) | ||
| 319 | IE-81240 000-0 | BOLT; COVER | 4 | 1310- | GVZ | |||
| 421 | I1-33159 048-0 | COVER; RR,TRANS | 1 | 1310- | GVZ | (B) | ||
| 421 | I1-33131 271-0 | COVER; RR,TRANS | 1 | 1310- | GVZ | (A) | ||
| 002 | I1-31111 183-0 | HOUSING; CLU | 1 | 1104- | FVZ | |||
| 029 | I1-33549 581-0 | BOLT; FRT COVER | 6 | 1104- | FVZ | M8X30 | ||
| 412 | I1-31119 026-0 | CAP; CLU HSG | 1 | 1104- | FVZ | |||
| 439 | I0-28650 820-0 | BOLT; BRKT | 2 | 1310- | GVZ | M8X20 FLANGE | ||
| 327 | I1-33131 273-0 | COVER; RR,COUNTER | 1 | 1104- | FVZ | EXC. PTO TRANS | ||
| 406 | I0-91180 108-0 | NUT; BRKT | 1 | 1104- | ALL | M8 FLANGE | ||
| 427 | I8-98241 467-0 | GASKET; RR COVER | 1 | 1306- | FVZ | (B) | ||
| 072 | I1-33119 592-0 | BOLT; SIDE COVER | 6 | 1104- | FVZ | M10X22 | ||
| 415 | I1-33131 274-0 | COVER; BRG | 1 | 1104-1607 | FVZ | |||
| 477 | I1-33549 581-0 | BOLT; OIL PUMP | 8 | 1104- | FVZ | M8X30 | ||
| 071 | I1-33141 073-0 | COVER; SIDE,TRANS CASE | 2 | 1310- | GVZ | |||
| 073 | I1-33119 237-0 | GASKET; SIDE COVER TO TRANS CASE | 1 | 1104- | FVZ | |||
| 478 | I1-33549 583-0 | WASHER; LK,OIL PUMP | 8 | 1306- | FVZ | |||
| 086 | I1-33119 613-0 | BOLT; RR COVER | 2 | 1310- | GVZ | (C) | ||
| 082 | I1-33119 619-0 | PLUG; SCREW,CASE | 2 | 1104- | FVZ | (A) | ||
| 199 | I1-33119 600-0 | CLIP; NYLON TUBE | 1 | 1310- | GVZ | (B) | ||
| 697 | I1-33119 547-0 | VALVE; AIR | 1 | 1310- | GVZ | |||
| 199 | IE-88764 070-0 | CLIP; NYLON TUBE | 1 | 1310- | GVZ | (A) | ||
| 468 | I8-98361 933-0 | GASKET; OIL PUMP | 1 | 1104- | FVZ | |||
| 309 | I1-33119 604-0 | EYE; LIFTING | 1 | 1310- | GVZ | (B) | ||
| 343 | I8-94399 669-1 | BOLT; CLU HSG TO PLATE | 1 | 1104- | FVZ | M10X75 FLANGE | ||
| 315 | IE-81080 000-0 | BOLT; CASE | 13 | 1310- | GVZ | M10X58 | ||
| 303 | I1-87411 001-0 | TUBE; NYLON | 1 | 1310- | GVZ | OD=6 | ||
| 024 | I1-31119 059-0 | COVER; CHECK HOLE,DUST | 1 | 1104- | FVZ | |||
| 316 | IE-14373 000-0 | MAGNET; TRANS CASE | 1 | 1310- | GVZ | |||
| 413 | I1-31119 014-0 | BALL; CLU HSG | 4 | 1104- | FVZ | |||
| 029 | IE-81089 000-0 | BOLT; FRT COVER | 5 | 1310- | GVZ | |||
| 329 | I1-34150 125-0 | PUMP ASM; OIL | 1 | 1310- | GVZ | |||
| 071 | I1-33119 622-0 | COVER; SIDE,TRANS CASE | 1 | 1104- | FVZ | |||
| 463 | I1-33129 018-0 | COVER; DUST,FRT COVER | 1 | 1104- | FVZ | |||
| 025 | I8-98231 755-0 | GASKET; COVER | 1 | 1104-1607 | FVZ | |||
| 245 | I8-98351 381-0 | PIPE; OIL | 1 | 1608- | FVZ | |||
| 419 | I1-33549 594-0 | PLUG; RR COVER | 1 | 1104- | FVZ | |||
| 511 | I1-87411 019-0 | TUBE; CORRUGATE | 1 | 1104- | FVZ | ID=10 ; EXC. MIXER | ||
| 072 | IE-81088 000-0 | BOLT; SIDE COVER | 14 | 1310- | GVZ | |||
| 151 | I8-97481 420-0 | ADAPTER; AIR BREATHER | 1 | 1710- | FVZ | |||
| 439 | I0-28650 830-0 | BOLT; BRKT | 1 | 1104-1309 | ALL | M8X30 FLANGE | ||
| 435 | I1-33111 380-0 | CASE; TRANS | 1 | 1306- | FVZ | (A) | ||
| 435 | I1-33111 363-0 | CASE; TRANS | 1 | 1310- | GVZ | (B) | ||
| 001 | I8-98381 876-0 | TRANSMISSION ASM; MANUAL | 1 | 1710- | FVZ | |||
| 180 | I1-33119 597-0 | CONNECTOR; NYLON TUBE | 1 | 1310- | GVZ | (A) | ||
| 437 | I1-36122 006-0 | BREATHER; TRANS | 1 | 1306- | FVZ | |||
| 427 | I1-33132 054-0 | GASKET; RR COVER | 1 | 1104- | FVZ | (A) EXC. PTO TRANS | ||
| 186 | I1-33119 249-0 | RING; SEAL | 2 | 1104- | FVZ | (A) | ||
| 399 | I8-98182 470-0 | BRACKET; CLIP | 1 | 1310- | GVZ | (B) | ||
| 399 | I1-47476 630-0 | BRACKET; CLIP | 1 | 1402- | FVZ | L=90 B=25 ; MIXER | ||
| 236 | I1-33119 549-0 | BOLT; VALVE BRKT | 2 | 1310- | GVZ | (A) | ||
| 415 | I8-98367 928-0 | COVER; BRG | 1 | 1608- | FVZ | |||
| 062 | I1-33132 087-0 | GASKET; RR COVER | 1 | 1104- | FVZ | (A) | ||
| 457 | IE-88702 780-0 | CUP; SEALING,CASE | 1 | 1310- | GVZ | |||
| 429 | IE-88705 430-0 | PIN; STRAIGHT | 2 | 1310- | GVZ | (B) | ||
| 323 | I1-33119 571-0 | NUT; RR COVER | 17 | 1310- | GVZ | |||
| 399 | I8-98085 674-0 | BRACKET; CLIP | 1 | 1310- | GVZ | (A) | ||
| 353 | I0-95235 035-0 | CLIP; NYLON TUBE | 3 | 1310- | GVZ | (A) ID=11 L=20 | ||
| 478 | I1-33119 568-0 | WASHER; LK,OIL PUMP | 8 | 1310-1310 | GVZ | |||
| 561 | I1-31119 044-0 | PLUG | 2 | 1104-1305 | FVZ | (A) | ||
| 001 | I8-98257 471-0 | TRANSMISSION ASM; MANUAL | 1 | 1310- | GVZ | |||
| 314 | IE-88814 750-0 | GASKET; CASE | 1 | 1310- | GVZ | |||
| 267 | IE-11245 000-0 | WASHER; PL | 1 | 1310-1310 | GVZ | |||
| 561 | I1-31119 046-0 | PLUG | 2 | 1104-1305 | FVZ | (C) | ||
| 265 | I0-28650 820-0 | BOLT; CLIP | 1 | 1104- | ALL | M8X20 FLANGE | ||
| 263 | IE-88804 690-0 | GASKET; STRAINER | 1 | 1310- | GVZ | |||
| 561 | I1-31119 045-0 | PLUG | 3 | 1104-1305 | FVZ | (B) | ||
| 028 | IE-88776 220-0 | COVER; FRT,TRANS CASE | 1 | 1310- | GVZ | |||
| 186 | I1-33119 435-0 | RING; SEAL | 2 | 1104- | FVZ | (C) | ||
| 262 | IE-88763 510-0 | STRAINER; OIL PUMP | 1 | 1310- | GVZ | |||
| 033 | I8-97552 229-0 | SEAL; OIL,FRT COVER,T/M | 1 | 1104- | FVZ | |||
| 303 | I1-87411 006-0 | TUBE; NYLON | 1 | 1104- | FVZ | OD=8 | ||
| 186 | I8-97481 421-0 | RING; SEAL | 1 | 1710- | FVZ | (D) | ||
| 086 | I1-33139 235-0 | BOLT; RR COVER | 5 | 1104- | FVZ | (D) M10X110 | ||
| 321 | I1-33119 519-0 | PLATE; NAME | 1 | 1104- | FVZ | (A) | ||
| 036 | I1-09811 002-1 | BEARING; NEEDLE,CLU HSG | 2 | 1310- | GVZ | NTN | ||
| 086 | I1-33139 061-0 | BOLT; RR COVER | 8 | 1104-1607 | FVZ | (F) M10X65 | ||
| 086 | I1-33139 236-0 | BOLT; RR COVER | 1 | 1104- | FVZ | (E) M10X50 | ||
| 435 | I1-33111 343-0 | CASE; TRANS | 1 | 1310- | GVZ | (A) | ||
| 696 | I1-83227 018-0 | SENSOR; PULSE | 1 | 1104- | FVZ | |||
| 330 | I1-33129 005-0 | RING; RET | 1 | 1104- | FVZ | |||
| 027 | I1-31119 058-0 | BOLT; COVER TO CLU HSG | 4 | 1104- | FVZ | |||
| 086 | I1-33139 239-0 | BOLT; RR COVER | 5 | 1104- | FVZ | (C) M12X75 | ||
| 399 | I1-47475 530-0 | BRACKET; CLIP | 1 | 1104- | FVZ | L=90 B=25 | ||
| 430 | I1-33119 156-0 | PLUG; OIL DRAIN | 1 | 1104- | FVZ | |||
| 087 | I1-33119 610-0 | WASHER; LK,RR COVER | 4 | 1310- | GVZ | |||
| 322 | I1-33119 556-0 | RIVET; NAME PLATE | 4 | 1104- | FVZ | |||
| 050 | I1-33119 293-0 | GASKET; DRAIN PLUG | 1 | 1104- | FVZ |
