| 070 |
I1-33251 434-0 |
|
GEAR; 1ST,MAINSHAFT |
1 |
1104- |
|
FVZ |
|
| 337 |
I1-33239 176-0 |
|
WASHER; PLANETARY GEAR,INNER |
12 |
1104- |
|
FVZ |
|
| 308 |
IE-88706 990-0 |
|
BOLT; MAINSHAFT |
1 |
1310- |
|
GVZ |
|

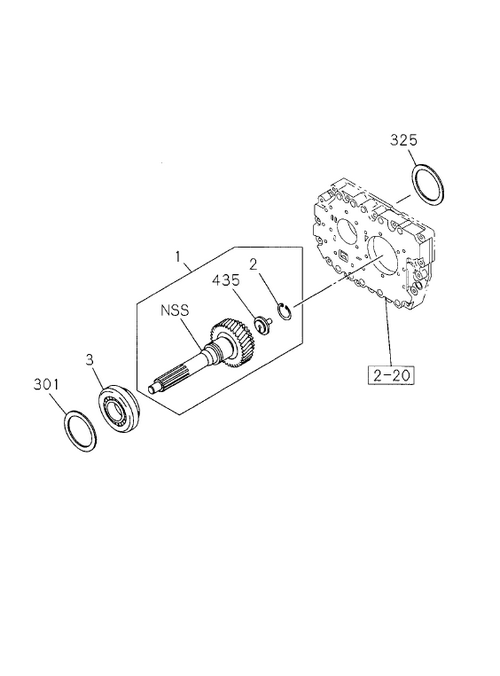

| 301 |
I1-33139 225-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=2.20 |
| 156 |
I1-37249 196-0 |
|
RING; SNAP,OUTPUT SHAFT BRG |
1 |
1310- |
|
GVZ |
T=3.89 |
| 109 |
I1-33312 020-0 |
|
BEARING; COUNTER SHAFT,RR |
1 |
1306- |
|
FVZ |
|
| 148 |
IE-88776 970-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
1310- |
|
GVZ |
T=3.35 |
| 252 |
IE-88758 790-0 |
|
SPACER |
1 |
1310- |
|
GVZ |
(A) |
| 084 |
I1-33312 016-0 |
|
BEARING; COUNTER SHAFT,FRT |
1 |
1104- |
|
FVZ |
|
| 452 |
I1-33139 217-0 |
|
DISC; COUNTING |
1 |
1104- |
|
FVZ |
|
| 148 |
IE-88776 930-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
1310- |
|
GVZ |
T=3.15 |
| 340 |
IE-88726 800-0 |
|
GEAR; RING |
1 |
1310- |
|
GVZ |
|
| 018 |
I8-98351 453-0 |
|
RING; SNAP,CLU HUB |
1 |
1608- |
|
FVZ |
H=4.0 |
| 427 |
I1-33332 132-0 |
|
GEAR; 2ND & 3RD,COUNTER |
1 |
1306- |
|
FVZ |
|
| 442 |
IE-88752 960-0 |
|
RING; SNAP,CARRIER |
1 |
1310- |
|
GVZ |
(B) |
| 148 |
IE-88776 980-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
1310- |
|
GVZ |
T=3.40 |
| 126 |
I1-33259 054-0 |
|
RING; SNAP,CLU HUB |
1 |
1104- |
|
FVZ |
(A) T=2.4 |
| 093 |
IE-88703 700-0 |
|
RING; SNAP,COUNTER FRT BRG |
2 |
1310- |
|
GVZ |
T=2.12 |
| 042 |
IE-88805 220-0 |
|
SLEEVE |
1 |
1310- |
|
GVZ |
|
| 306 |
I1-33319 068-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104- |
|
FVZ |
(A) T=2.85 |
| 018 |
I8-98351 449-0 |
|
RING; SNAP,CLU HUB |
1 |
1608- |
|
FVZ |
H=3.6 |
| 301 |
I1-33139 223-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=2.30 |
| 036 |
IE-88769 490-0 |
|
GEAR; 3RD,MAINSHAFT |
1 |
1310- |
|
GVZ |
|
| 109 |
IE-88808 200-0 |
|
BEARING; COUNTER SHAFT,RR |
1 |
1310- |
|
GVZ |
|
| 328 |
I1-33339 094-0 |
|
BEARING; CARRIER |
1 |
1104-1607 |
|
FVZ |
|
| 306 |
I1-33319 063-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104-1305 |
|
FVZ |
(A) T=3.10 |
| 400 |
IE-88727 210-0 |
|
BEARING; OUTPUT SHAFT RR |
1 |
1310- |
|
GVZ |
|
| 018 |
I8-98351 452-0 |
|
RING; SNAP,CLU HUB |
1 |
1608- |
|
FVZ |
H=3.9 |
| 093 |
I1-33319 251-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
1104- |
|
FVZ |
T=2.0 |
| 325 |
I8-98080 571-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1104- |
|
FVZ |
T=1.50 |
| 306 |
I1-33319 081-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104-1305 |
|
FVZ |
(A) T=2.20 |
| 408 |
IE-88704 440-0 |
|
SPRING |
18 |
1310- |
|
GVZ |
|
| 104 |
I1-33338 406-0 |
|
GEAR; 4TH,COUNTER |
1 |
1104- |
|
FVZ |
|
| 306 |
I1-43319 101-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104- |
|
FVZ |
(B) T=2.4 |
| 325 |
I1-33389 081-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1104- |
|
FVZ |
T=2.05 |
| 325 |
I1-33389 048-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1104- |
|
FVZ |
T=1.55 |
| 335 |
I1-33339 079-0 |
|
RING; SNAP,BEARING |
1 |
1104-1607 |
|
FVZ |
(A) T=2.10 |
| 017 |
I1-33269 111-0 |
|
RING; SNAP,4TH GEAR |
1 |
1310- |
|
GVZ |
T=2.15 |
| 301 |
I1-33139 226-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=2.15 |
| 156 |
I1-37249 193-0 |
|
RING; SNAP,OUTPUT SHAFT BRG |
1 |
1310- |
|
GVZ |
T=3.70 |
| 306 |
I1-33319 082-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104-1305 |
|
FVZ |
(A) T=2.15 |
| 129 |
I1-33369 026-0 |
|
BEARING; NEEDLE,IDLER |
2 |
1104- |
|
FVZ |
|
| 328 |
IE-88708 440-0 |
|
BEARING; CARRIER |
1 |
1310- |
|
GVZ |
|

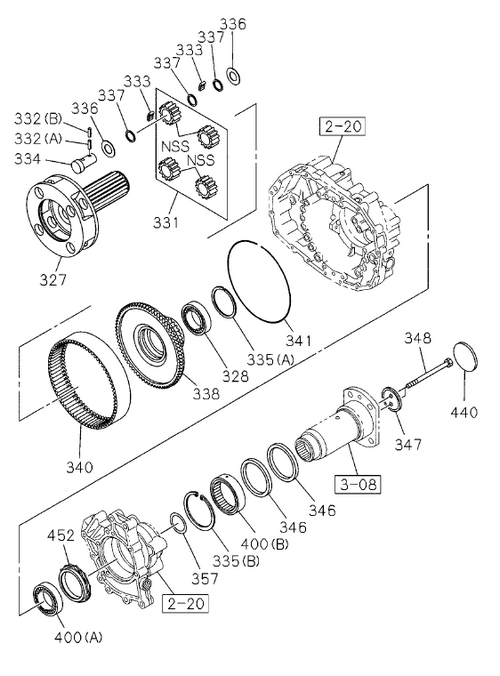

| 327 |
I1-33231 338-0 |
|
CARRIER; PLANETARY GEAR |
1 |
1104- |
|
FVZ |
|
| 306 |
I1-33319 061-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104-1305 |
|
FVZ |
(A) T=3.20 |
| 016 |
I8-98351 382-0 |
|
BEARING; PILOT,MAINSHAFT |
1 |
1608- |
|
FVZ |
|
| 441 |
I1-33239 251-0 |
|
SCREW; STOPPER,PIN |
5 |
1310- |
|
GVZ |
|
| 442 |
IE-88739 930-0 |
|
RING; SNAP,CARRIER |
1 |
1310- |
|
GVZ |
(A) |
| 156 |
I1-37249 197-0 |
|
RING; SNAP,OUTPUT SHAFT BRG |
1 |
1310- |
|
GVZ |
T=3.95 |
| 306 |
I1-33319 067-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104- |
|
FVZ |
(A) T=2.90 |
| 333 |
IE-88752 350-0 |
|
ROLLER; PLANETARY GEAR |
5 |
1310- |
|
GVZ |
|
| 306 |
I1-33319 066-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104- |
|
FVZ |
(A) T=2.95 |
| 135 |
IE-88804 890-0 |
|
GEAR; REV IDLER |
1 |
1310- |
|
GVZ |
|
| 042 |
I1-33262 195-0 |
|
SLEEVE |
1 |
1104- |
|
FVZ |
|
| 306 |
I1-33319 065-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104-1305 |
|
FVZ |
(A) T=3.00 |
| 050 |
I1-33259 137-0 |
|
GEAR; 2ND,MAINSHAFT |
1 |
1310- |
|
GVZ |
|
| 301 |
I1-33139 229-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=2.00 |
| 306 |
I1-43319 105-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104- |
|
FVZ |
(B) T=2.2 |
| 325 |
I1-33389 074-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1104- |
|
FVZ |
T=1.90 |
| 059 |
IE-88764 780-0 |
|
GEAR; REV MAINSHAFT |
1 |
1310- |
|
GVZ |
|
| 444 |
IE-88704 150-0 |
|
CLUTCH; DOG,REV GEAR |
1 |
1310- |
|
GVZ |
|
| 003 |
IE-88725 930-0 |
|
BEARING; TOP GEAR SHAFT |
1 |
1310- |
|
GVZ |
|
| 335 |
I1-33339 075-0 |
|
RING; SNAP,BEARING |
1 |
1104-1607 |
|
FVZ |
(A) T=2.50 |
| 306 |
I1-33319 062-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104-1305 |
|
FVZ |
(A) T=3.15 |
| 437 |
IE-88756 460-0 |
|
PLATE; LOCK |
1 |
1310- |
|
GVZ |
|
| 315 |
I1-33265 644-0 |
|
CLUTCH; DOG,2ND GEAR |
2 |
1310- |
|
GVZ |
|
| 306 |
I1-33319 064-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104-1305 |
|
FVZ |
(A) T=3.05 |
| 009 |
I1-33265 631-0 |
|
CLUTCH; DOG,TOP GEAR |
1 |
1104- |
|
FVZ |
|
| 126 |
IE-88703 440-0 |
|
RING; SNAP,CLU HUB |
1 |
1310- |
|
GVZ |
(B) |
| 093 |
I1-33319 256-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
1104-1607 |
|
FVZ |
T=2.1 |

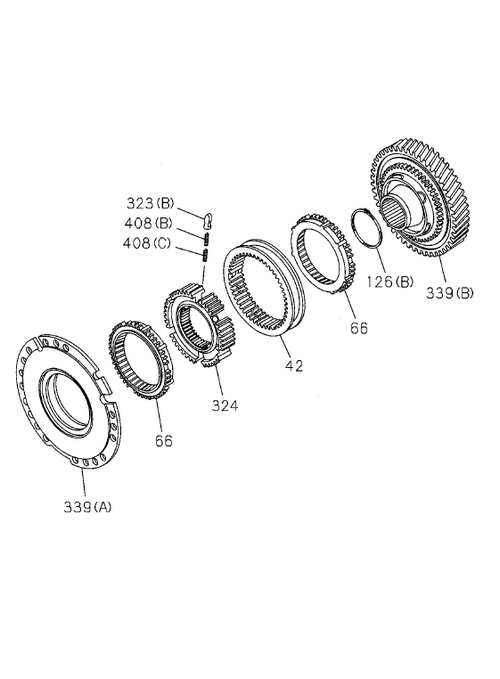

| 339 |
I8-97496 720-0 |
|
CLUTCH; PLANETARY GEAR |
1 |
1104- |
|
FVZ |
(B) |
| 338 |
I1-33331 275-0 |
|
CARRIER; RING GEAR |
1 |
1104-1607 |
|
FVZ |
|
| 084 |
IE-88808 200-0 |
|
BEARING; COUNTER SHAFT,FRT |
1 |
1310- |
|
GVZ |
|
| 325 |
I1-33389 087-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1104- |
|
FVZ |
T=2.35 |
| 044 |
I1-33261 303-0 |
|
HUB; CLU,2ND & 3RD,MAIN |
1 |
1104- |
|
FVZ |
|
| 003 |
I1-33219 340-0 |
|
BEARING; TOP GEAR SHAFT |
1 |
1306- |
|
FVZ |
|
| 306 |
I1-43319 103-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104- |
|
FVZ |
(B) T=2.0 |
| 041 |
I1-33265 643-0 |
|
RING; BLOCK,2ND & 3RD |
2 |
1310- |
|
GVZ |
|
| 340 |
I1-33339 099-0 |
|
GEAR; RING |
1 |
1104- |
|
FVZ |
|

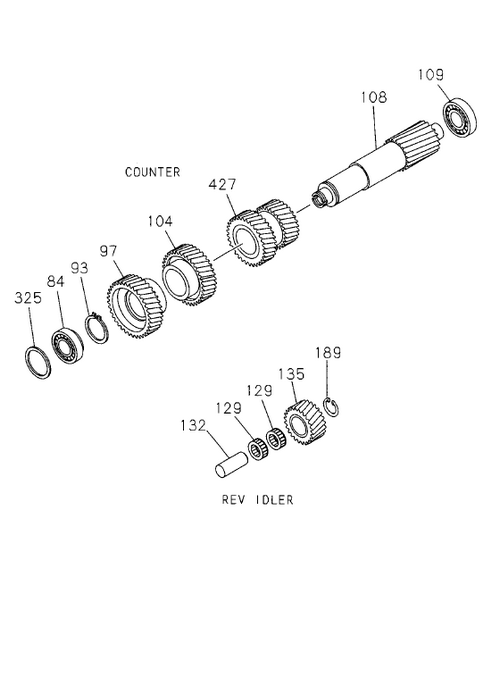

| 108 |
I1-33311 347-0 |
|
SHAFT; COUNTER |
1 |
1104- |
|
FVZ |
|
| 335 |
I1-33339 080-0 |
|
RING; SNAP,BEARING |
1 |
1104-1607 |
|
FVZ |
(A) T=2.00 |
| 097 |
I1-33338 407-0 |
|
GEAR; 5TH,COUNTER |
1 |
1104- |
|
FVZ |
|
| 325 |
I1-33389 077-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1104- |
|
FVZ |
T=1.65 |
| 334 |
I1-33239 359-0 |
|
SHAFT; PLANETARY GEAR |
4 |
1104- |
|
FVZ |
|
| 080 |
I1-33371 068-0 |
|
GEAR; SPD DRIVE |
1 |
1310- |
|
GVZ |
|

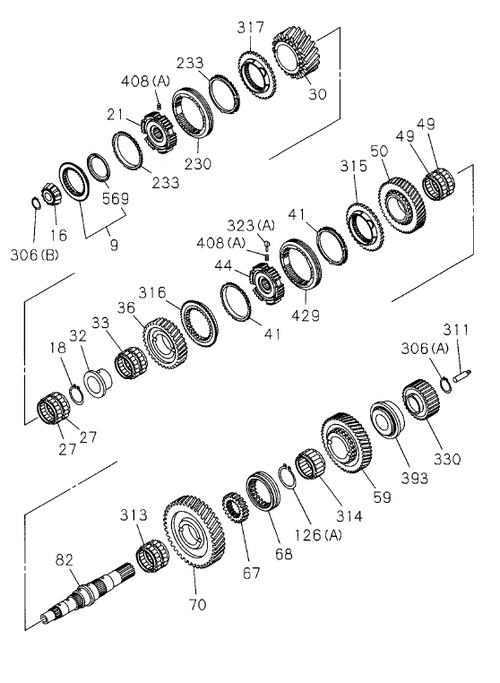

| 082 |
8-98345 336-0 |
|
SHAFT; MAIN,TRANS |
1 |
1608- |
|
FVZ |
|
| 311 |
I1-33239 349-0 |
|
PIPE; MAINSHAFT |
1 |
1104- |
|
FVZ |
|
| 301 |
I1-33139 039-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=1.80 |
| 126 |
I1-33269 049-0 |
|
RING; SNAP,CLU HUB |
1 |
1104-1607 |
|
FVZ |
(B) T=3.8 |
| 325 |
IE-88893 000-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1310- |
|
GVZ |
T=0.254 |
| 082 |
I1-33231 337-0 |
|
SHAFT; MAIN,TRANS |
1 |
1104-1607 |
|
FVZ |
|
| 429 |
I1-33262 244-0 |
|
SLEEVE; 2ND & 3RD |
1 |
1104- |
|
FVZ |
|
| 306 |
I1-43319 102-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104- |
|
FVZ |
(B) T=2.3 |
| 306 |
I1-33319 073-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104- |
|
FVZ |
(A) T=2.60 |
| 324 |
I1-33261 230-0 |
|
HUB; CLU |
1 |
1104- |
|
FVZ |
|
| 325 |
I1-33389 075-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1104- |
|
FVZ |
T=1.80 |
| 408 |
I1-33269 039-0 |
|
SPRING |
9 |
1104- |
|
FVZ |
(C) |
| 049 |
I1-33259 058-0 |
|
BEARING; NEEDLE,2ND GEAR |
2 |
1104- |
|
FVZ |
|
| 325 |
I1-33389 078-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1104- |
|
FVZ |
T=1.75 |
| 402 |
I1-33159 051-0 |
|
SHIM |
1 |
1310- |
|
GVZ |
(B) T=0.10" |
| 346 |
I1-33339 051-0 |
|
GASKET; FLANGE |
2 |
1104- |
|
FVZ |
|
| 078 |
I1-33239 373-0 |
|
COLLAR; DIST,MAINSHAFT BRG |
1 |
1310- |
|
GVZ |
|
| 093 |
I1-33319 264-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
1306-1607 |
|
FVZ |
T=2.6 |
| 108 |
IE-88807 460-0 |
|
SHAFT; COUNTER |
1 |
1310- |
|
GVZ |
|
| 338 |
I8-98354 025-0 |
|
CARRIER; RING GEAR |
1 |
1608- |
|
FVZ |
|
| 335 |
I1-33339 050-0 |
|
RING; SNAP,BEARING |
1 |
1104- |
|
FVZ |
(B) |
| 393 |
I1-33259 104-0 |
|
BEARING; MAINSHAFT END |
1 |
1104- |
|
FVZ |
|
| 135 |
I1-33361 096-0 |
|
GEAR; REV IDLER |
1 |
1104- |
|
FVZ |
|
| 301 |
I1-33139 050-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1306- |
|
FVZ |
T=1.10 |
| 023 |
IE-88703 520-0 |
|
PLUNGER; DETENT,SYN |
18 |
1310- |
|
GVZ |
|
| 306 |
I1-33319 079-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104-1305 |
|
FVZ |
(A) T=2.30 |
| 301 |
I1-33139 047-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1306- |
|
FVZ |
T=1.20 |
| 330 |
I1-33259 134-0 |
|
GEAR; SUN |
1 |
1104- |
|
FVZ |
|
| 569 |
I1-33269 097-0 |
|
DAM; OIL |
1 |
1104- |
|
FVZ |
|
| 335 |
I1-33339 077-0 |
|
RING; SNAP,BEARING |
1 |
1104-1607 |
|
FVZ |
(A) T=2.30 |
| 129 |
IE-88724 780-0 |
|
BEARING; NEEDLE,IDLER |
2 |
1310- |
|
GVZ |
|
| 325 |
I1-33389 086-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1104- |
|
FVZ |
T=2.40 |
| 314 |
IE-88701 780-0 |
|
BEARING; NEEDLE,REV GEAR |
1 |
1310- |
|
GVZ |
|
| 313 |
IE-88701 770-0 |
|
BEARING; NEEDLE,LOW GEAR |
1 |
1310- |
|
GVZ |
|
| 017 |
IE-88705 340-0 |
|
RING; SNAP,4TH GEAR |
1 |
1310- |
|
GVZ |
T=2.10 |
| 325 |
I1-33389 082-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1104- |
|
FVZ |
T=2.10 |
| 301 |
I1-33139 230-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=1.95 |
| 093 |
I1-33319 252-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
1104-1607 |
|
FVZ |
T=2.5 |
| 002 |
I1-33219 159-0 |
|
RING; SNAP, TOP GEAR SHAFT |
1 |
1104-1305 |
|
FVZ |
|
| 317 |
I1-33265 644-0 |
|
CLUTCH; DOG,4TH GEAR |
2 |
1310- |
|
GVZ |
|
| 325 |
I1-33389 047-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1104-1607 |
|
FVZ |
T=1.60 |
| 332 |
I1-33239 178-0 |
|
PIN; LOCK,SHAFT |
4 |
1104- |
|
FVZ |
(A) |
| 408 |
I1-33269 038-0 |
|
SPRING |
9 |
1104- |
|
FVZ |
(B) |
| 325 |
I1-33389 073-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1104- |
|
FVZ |
T=2.00 |
| 030 |
I1-33252 485-0 |
|
GEAR; 4TH,MAINSHAFT |
1 |
1310- |
|
GVZ |
|
| 126 |
I1-33269 047-0 |
|
RING; SNAP,CLU HUB |
1 |
1104-1607 |
|
FVZ |
(B) T=4.0 |
| 334 |
I1-33239 374-0 |
|
SHAFT; PLANETARY GEAR |
5 |
1310- |
|
GVZ |
|
| 066 |
I1-33339 069-0 |
|
RING; BLOCK,SYN |
2 |
1104- |
|
FVZ |
|
| 070 |
I1-33251 376-0 |
|
GEAR; 1ST,MAINSHAFT |
1 |
1310- |
|
GVZ |
|
| 033 |
IE-88701 770-0 |
|
BEARING; NEEDLE,3RD GEAR |
1 |
1310- |
|
GVZ |
|
| 018 |
I8-98351 450-0 |
|
RING; SNAP,CLU HUB |
1 |
1608- |
|
FVZ |
H=3.7 |
| 126 |
I1-33259 052-0 |
|
RING; SNAP,CLU HUB |
1 |
1104- |
|
FVZ |
(A) T=2.6 |
| 325 |
I1-33389 084-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1104- |
|
FVZ |
T=2.20 |
| 018 |
I1-33259 064-0 |
|
RING; SNAP,CLU HUB |
1 |
1104-1607 |
|
FVZ |
T=1.9 |
| 393 |
IE-88771 640-0 |
|
BEARING; MAINSHAFT END |
1 |
1310- |
|
GVZ |
|
| 159 |
I1-33159 054-0 |
|
SPACER; SPD DRIVE GEAR |
1 |
1310- |
|
GVZ |
|
| 027 |
IE-88752 760-0 |
|
BEARING; 4TH GEAR |
1 |
1310- |
|
GVZ |
|
| 148 |
IE-88776 920-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
1310- |
|
GVZ |
T=3.10 |
| 294 |
I1-33231 345-0 |
|
SHAFT; OUTPUT |
1 |
1310- |
|
GVZ |
|
| 339 |
IE-88773 220-0 |
|
CLUTCH; PLANETARY GEAR |
1 |
1310- |
|
GVZ |
(A) |
| 032 |
IE-88828 680-0 |
|
COLLAR; 3RD GEAR |
1 |
1310- |
|
GVZ |
|
| 126 |
IE-88703 410-0 |
|
RING; SNAP,CLU HUB |
2 |
1310- |
|
GVZ |
|
| 309 |
IE-88805 940-0 |
|
PLATE; MAINSHAFT |
1 |
1310- |
|
GVZ |
|
| 032 |
I8-98326 045-0 |
|
COLLAR; 3RD GEAR |
1 |
1306-1607 |
|
FVZ |
|
| 301 |
I1-33139 227-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=2.10 |
| 041 |
I1-33265 498-0 |
|
RING; BLOCK,2ND & 3RD |
2 |
1104- |
|
FVZ |
|
| 067 |
I1-33259 135-0 |
|
HUB; CLU,1ST TO REV |
1 |
1104- |
|
FVZ |
|
| 325 |
I1-33389 088-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1104- |
|
FVZ |
T=2.30 |
| 021 |
IE-88755 540-0 |
|
HUB; CLU,4TH & 5TH |
1 |
1310- |
|
GVZ |
|
| 328 |
I8-98344 071-0 |
|
BEARING; CARRIER |
1 |
1608- |
|
FVZ |
|
| 093 |
IE-88715 400-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
1310- |
|
GVZ |
T=1.77 |
| 417 |
IE-88708 080-0 |
|
SPACER; OUTPUT SHAFT |
1 |
1310- |
|
GVZ |
|
| 306 |
I1-33319 080-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104-1305 |
|
FVZ |
(A) T=2.25 |
| 317 |
I1-33265 630-0 |
|
CLUTCH; DOG,4TH GEAR |
1 |
1104- |
|
FVZ |
|
| 288 |
IE-88725 880-0 |
|
SPACER; BRG,MAINSHAFT |
1 |
1310- |
|
GVZ |
(B) |
| 230 |
IE-88804 600-0 |
|
SLEEVE; 4TH TO 5TH |
1 |
1310- |
|
GVZ |
|
| 301 |
I1-33139 201-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=1.45 |
| 093 |
I1-33319 254-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
1104-1607 |
|
FVZ |
T=2.3 |
| 126 |
I1-33259 051-0 |
|
RING; SNAP,CLU HUB |
1 |
1104- |
|
FVZ |
(A) T=2.7 |
| 075 |
IE-88703 050-0 |
|
BEARING; MAINSHAFT |
1 |
1310- |
|
GVZ |
|
| 126 |
IE-88703 420-0 |
|
RING; SNAP,CLU HUB |
1 |
1310- |
|
GVZ |
(C) |
| 341 |
I1-33339 096-0 |
|
WIRE; LOCK,CARRIER |
1 |
1104- |
|
FVZ |
|
| 068 |
I1-33259 049-0 |
|
SLEEVE; 1ST TO REV |
1 |
1104- |
|
FVZ |
|
| 324 |
IE-88758 810-0 |
|
HUB; CLU |
1 |
1310- |
|
GVZ |
|
| 126 |
IE-88739 940-0 |
|
RING; SNAP,CLU HUB |
1 |
1310- |
|
GVZ |
(D) |
| 093 |
IE-88715 390-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
1310- |
|
GVZ |
T=1.82 |
| 156 |
I1-37249 194-0 |
|
RING; SNAP,OUTPUT SHAFT BRG |
1 |
1310- |
|
GVZ |
T=3.77 |
| 030 |
I8-98367 502-0 |
|
GEAR; 4TH,MAINSHAFT |
1 |
1608- |
|
FVZ |
|
| 301 |
I1-33139 224-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=2.25 |
| 132 |
IE-88832 460-0 |
|
SHAFT; REV |
1 |
1310- |
|
GVZ |
|
| 066 |
I1-33265 557-0 |
|
RING; BLOCK,SYN |
2 |
1310- |
|
GVZ |
|
| 306 |
I1-33319 076-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104- |
|
FVZ |
(A) T=2.45 |
| 148 |
IE-88777 000-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
1310- |
|
GVZ |
T=3.50 |
| 348 |
I1-09009 168-0 |
|
BOLT; SHAFT |
2 |
1104- |
|
FVZ |
|
| 443 |
IE-88703 550-0 |
|
ROLLER; SYNCHRONIZER |
9 |
1310- |
|
GVZ |
(B) |
| 416 |
I1-37249 168-0 |
|
BUSHING; OUTPUT SHAFT |
1 |
1310- |
|
GVZ |
|
| 301 |
I1-33139 232-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=1.85 |
| 301 |
I1-33139 041-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=1.70 |
| 325 |
I1-33389 076-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1104- |
|
FVZ |
T=1.70 |
| 301 |
I1-33139 205-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1306- |
|
FVZ |
T=1.25 |
| 301 |
I1-33139 206-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=1.35 |
| 325 |
IE-88894 000-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1310- |
|
GVZ |
T=0.510 |
| 059 |
I1-33257 101-0 |
|
GEAR; REV MAINSHAFT |
1 |
1104- |
|
FVZ |
|
| 067 |
IE-88756 040-0 |
|
HUB; CLU,1ST TO REV |
1 |
1310- |
|
GVZ |
|
| 093 |
IE-88703 720-0 |
|
RING; SNAP,COUNTER FRT BRG |
2 |
1310- |
|
GVZ |
T=2.02 |
| 331 |
I1-33239 375-0 |
|
GEAR SET; PLANETARY |
5 |
1310- |
|
GVZ |
|
| 325 |
I1-33389 083-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1104- |
|
FVZ |
T=2.15 |
| 342 |
I1-37243 325-0 |
|
FLANGE; OUTPUT |
1 |
1310- |
|
GVZ |
|
| 339 |
I1-33265 649-0 |
|
CLUTCH; PLANETARY GEAR |
1 |
1306- |
|
FVZ |
(A) |
| 132 |
I1-33351 024-0 |
|
SHAFT; REV |
1 |
1104- |
|
FVZ |
|
| 260 |
I1-33119 612-0 |
|
NUT; MAINSHAFT END |
1 |
1310- |
|
GVZ |
|
| 288 |
IE-88725 890-0 |
|
SPACER; BRG,MAINSHAFT |
1 |
1310- |
|
GVZ |
(A) |
| 017 |
I1-33269 101-0 |
|
RING; SNAP,4TH GEAR |
1 |
1310- |
|
GVZ |
T=2.05 |
| 306 |
I1-33319 074-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104- |
|
FVZ |
(A) T=2.55 |
| 357 |
I1-33139 218-0 |
|
RING |
1 |
1104- |
|
FVZ |
|
| 233 |
I1-33265 643-0 |
|
RING; BLOCK 4TH TO 5TH |
2 |
1310- |
|
GVZ |
|
| 306 |
I1-43319 021-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104- |
|
FVZ |
(B) T=2.5 |
| 347 |
I1-09509 060-0 |
|
WASHER; FLANGE |
1 |
1104- |
|
FVZ |
|
| 332 |
I1-33239 179-0 |
|
PIN; LOCK,SHAFT |
4 |
1104- |
|
FVZ |
(B) |
| 126 |
I1-33259 050-0 |
|
RING; SNAP,CLU HUB |
1 |
1104- |
|
FVZ |
(A) T=2.8 |
| 126 |
IE-88703 800-0 |
|
RING; SNAP,CLU HUB |
1 |
1310- |
|
GVZ |
(E) T=2.00 |
| 036 |
I1-33252 478-0 |
|
GEAR; 3RD,MAINSHAFT |
1 |
1104- |
|
FVZ |
|
| 126 |
I1-33269 050-0 |
|
RING; SNAP,CLU HUB |
1 |
1104- |
|
FVZ |
(B) T=3.7 |
| 233 |
I1-33269 096-0 |
|
RING; BLOCK 4TH TO 5TH |
2 |
1104- |
|
FVZ |
|
| 126 |
I1-33269 048-0 |
|
RING; SNAP,CLU HUB |
1 |
1104-1607 |
|
FVZ |
(B) T=3.9 |
| 440 |
I1-37249 152-0 |
|
COVER; FLANGE |
1 |
1104- |
|
FVZ |
|
| 306 |
I1-43319 104-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104- |
|
FVZ |
(B) T=2.1 |
| 323 |
I1-33263 027-0 |
|
INSERT |
9 |
1104- |
|
FVZ |
(B) |
| 018 |
I1-33259 054-0 |
|
RING; SNAP,CLU HUB |
1 |
1104-1607 |
|
FVZ |
T=2.4 |
| 049 |
IE-88701 770-0 |
|
BEARING; NEEDLE,2ND GEAR |
1 |
1310- |
|
GVZ |
|
| 301 |
I1-33139 234-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=1.65 |
| 001 |
I1-33215 039-0 |
|
SHAFT; TOP GEAR,TRANS |
1 |
1310- |
|
GVZ |
|
| 018 |
I8-98351 451-0 |
|
RING; SNAP,CLU HUB |
1 |
1608- |
|
FVZ |
H=3.8 |
| 301 |
I1-33139 202-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=1.55 |
| 313 |
I1-33259 047-0 |
|
BEARING; NEEDLE,LOW GEAR |
1 |
1104- |
|
FVZ |
|
| 333 |
I1-33239 232-0 |
|
ROLLER; PLANETARY GEAR |
AR |
1104- |
|
FVZ |
|
| 429 |
IE-88804 600-0 |
|
SLEEVE; 2ND & 3RD |
1 |
1310- |
|
GVZ |
|
| 325 |
I1-33389 089-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1104- |
|
FVZ |
T=2.25 |
| 306 |
I1-33319 083-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104-1305 |
|
FVZ |
(A) T=2.10 |
| 050 |
I1-33251 448-0 |
|
GEAR; 2ND,MAINSHAFT |
1 |
1104- |
|
FVZ |
|
| 301 |
I1-33139 046-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=1.30 |
| 030 |
I1-33251 449-0 |
|
GEAR; 4TH,MAINSHAFT |
1 |
1104-1607 |
|
FVZ |
|
| 335 |
I1-33339 078-0 |
|
RING; SNAP,BEARING |
1 |
1104- |
|
FVZ |
(A) T=2.20 |
| 010 |
IE-88777 060-0 |
|
RING; SNAP,PILOT BRG |
1 |
1310- |
|
GVZ |
|
| 301 |
I1-33139 204-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1306- |
|
FVZ |
T=1.15 |
| 306 |
I1-33319 072-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104- |
|
FVZ |
(A) T=2.65 |
| 335 |
I1-33339 076-0 |
|
RING; SNAP,BEARING |
1 |
1104-1607 |
|
FVZ |
(A) T=2.40 |
| 325 |
I1-33389 079-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1104- |
|
FVZ |
T=1.85 |
| 306 |
I1-33319 069-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104- |
|
FVZ |
(A) T=2.80 |
| 126 |
IE-88703 790-0 |
|
RING; SNAP,CLU HUB |
1 |
1310- |
|
GVZ |
(E) T=2.05 |
| 306 |
I1-33319 075-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104- |
|
FVZ |
(A) T=2.50 |
| 323 |
I1-33263 030-0 |
|
INSERT |
6 |
1104- |
|
FVZ |
(A) |
| 306 |
I1-33319 071-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104- |
|
FVZ |
(A) T=2.70 |
| 156 |
I1-37249 195-0 |
|
RING; SNAP,OUTPUT SHAFT BRG |
1 |
1310- |
|
GVZ |
T=3.83 |
| 093 |
IE-88715 380-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
1310- |
|
GVZ |
T=1.87 |
| 315 |
I1-33265 629-0 |
|
CLUTCH; DOG,2ND GEAR |
1 |
1104- |
|
FVZ |
|
| 301 |
I1-33139 042-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=1.60 |
| 148 |
IE-88776 950-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
1310- |
|
GVZ |
T=3.25 |
| 093 |
IE-88715 360-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
1310- |
|
GVZ |
T=1.97 |
| 093 |
I1-33319 253-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
1104-1607 |
|
FVZ |
T=2.4 |
| 330 |
I1-34311 011-0 |
|
GEAR; SUN |
1 |
1310- |
|
GVZ |
|
| 325 |
I1-33389 080-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1104- |
|
FVZ |
T=1.95 |
| 451 |
I1-33239 275-0 |
|
RESTRICTOR; MAIN SHAFT |
1 |
1310- |
|
GVZ |
|
| 331 |
I1-33239 350-0 |
|
GEAR SET; PLANETARY |
1 |
1104- |
|
FVZ |
|
| 301 |
I1-33139 228-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=2.05 |
| 018 |
I1-33259 061-0 |
|
RING; SNAP,CLU HUB |
1 |
1104-1607 |
|
FVZ |
T=2.2 |
| 460 |
IE-88814 240-0 |
|
RING; SNAP,REV SHAFT |
1 |
1310- |
|
GVZ |
|
| 336 |
IE-88768 930-0 |
|
WASHER; THRUST,PLANETARY GEAR |
10 |
1310- |
|
GVZ |
|
| 301 |
I1-33139 233-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=1.75 |
| 148 |
IE-88776 940-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
1310- |
|
GVZ |
T=3.20 |
| 018 |
I8-98351 448-0 |
|
RING; SNAP,CLU HUB |
1 |
1608- |
|
FVZ |
H=3.5 |
| 126 |
IE-88703 780-0 |
|
RING; SNAP,CLU HUB |
1 |
1310- |
|
GVZ |
(E) T=2.10 |
| 082 |
I1-33231 346-0 |
|
SHAFT; MAIN,TRANS |
1 |
1310- |
|
GVZ |
|
| 252 |
IE-88724 790-0 |
|
SPACER |
1 |
1310- |
|
GVZ |
(B) |
| 017 |
IE-88705 360-0 |
|
RING; SNAP,4TH GEAR |
1 |
1310- |
|
GVZ |
T=2.00 |
| 068 |
IE-88804 610-0 |
|
SLEEVE; 1ST TO REV |
1 |
1310- |
|
GVZ |
|
| 316 |
I1-33265 629-0 |
|
CLUTCH; DOG,3RD GEAR |
1 |
1104- |
|
FVZ |
|
| 312 |
I1-33265 596-0 |
|
CLUTCH; DOG,1ST GEAR |
1 |
1310- |
|
GVZ |
|
| 093 |
I1-33319 255-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
1104-1607 |
|
FVZ |
T=2.2 |
| 408 |
I1-33269 042-0 |
|
SPRING |
6 |
1104- |
|
FVZ |
(A) |
| 301 |
I1-33139 231-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=1.90 |
| 148 |
IE-88776 960-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
1310- |
|
GVZ |
T=3.30 |
| 400 |
I1-33139 212-0 |
|
BEARING; OUTPUT SHAFT RR |
1 |
1104- |
|
FVZ |
(A) |
| 126 |
I1-33259 053-0 |
|
RING; SNAP,CLU HUB |
1 |
1104- |
|
FVZ |
(A) T=2.5 |
| 298 |
IE-88755 320-0 |
|
GASKET; MAINSHAFT |
2 |
1310- |
|
GVZ |
|
| 230 |
I1-33262 239-0 |
|
SLEEVE; 4TH TO 5TH |
1 |
1104- |
|
FVZ |
|
| 339 |
IE-88773 230-0 |
|
CLUTCH; PLANETARY GEAR |
1 |
1310- |
|
GVZ |
(B) |
| 128 |
IE-88703 430-0 |
|
WASHER; THRUST,REV SHAFT |
2 |
1310- |
|
GVZ |
|
| 402 |
I1-33159 050-0 |
|
SHIM |
1 |
1310- |
|
GVZ |
(A) T=0.005" |
| 027 |
I8-98345 333-0 |
|
BEARING; 4TH GEAR |
2 |
1104-1607 |
|
FVZ |
|
| 314 |
I1-33259 125-0 |
|
BEARING; NEEDLE,REV GEAR |
1 |
1104- |
|
FVZ |
|
| 325 |
IE-88892 000-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1310- |
|
GVZ |
T=0.127 |
| 189 |
I1-44519 224-0 |
|
RING; SNAP,REV,GEAR |
1 |
1104- |
|
FVZ |
|
| 289 |
IE-14851 000-0 |
|
PIN; MAINSHAFT |
1 |
1310- |
|
GVZ |
|
| 018 |
I1-33259 063-0 |
|
RING; SNAP,CLU HUB |
1 |
1104-1607 |
|
FVZ |
T=2.0 |
| 021 |
I1-33261 295-0 |
|
HUB; CLU,4TH & 5TH |
1 |
1104- |
|
FVZ |
|
| 018 |
I1-33259 060-0 |
|
RING; SNAP,CLU HUB |
1 |
1104-1607 |
|
FVZ |
T=2.3 |
| 001 |
I1-33215 040-0 |
|
SHAFT; TOP GEAR,TRANS |
1 |
1104- |
|
FVZ |
|
| 443 |
IE-88703 560-0 |
|
ROLLER; SYNCHRONIZER |
9 |
1310- |
|
GVZ |
(A) |
| 018 |
I1-33259 062-0 |
|
RING; SNAP,CLU HUB |
1 |
1104-1607 |
|
FVZ |
T=2.1 |
| 306 |
I1-33319 077-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104-1305 |
|
FVZ |
(A) T=2.40 |
| 306 |
I1-33319 070-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104- |
|
FVZ |
(A) T=2.75 |
| 301 |
I1-33139 045-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=1.40 |
| 148 |
IE-88776 990-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
1310- |
|
GVZ |
T=3.45 |
| 306 |
I1-33319 078-0 |
|
RING; SNAP,MAINSHAFT |
1 |
1104-1305 |
|
FVZ |
(A) T=2.35 |
| 301 |
I1-33139 043-0 |
|
SHIM; TOP GEAR SHAFT |
1 |
1104- |
|
FVZ |
T=1.50 |
| 400 |
I1-33339 049-0 |
|
BEARING; OUTPUT SHAFT RR |
1 |
1104- |
|
FVZ |
(B) |
| 336 |
I1-33239 174-0 |
|
WASHER; THRUST,PLANETARY GEAR |
8 |
1104- |
|
FVZ |
|
| 016 |
I1-33239 212-0 |
|
BEARING; PILOT,MAINSHAFT |
1 |
1104-1607 |
|
FVZ |
|
| 044 |
IE-88755 710-0 |
|
HUB; CLU,2ND & 3RD,MAIN |
1 |
1310- |
|
GVZ |
|
| 093 |
IE-88715 370-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
1310- |
|
GVZ |
T=1.92 |
| 439 |
IE-80806 000-0 |
|
SCREW; LOCK PLATE |
3 |
1310- |
|
GVZ |
|
| 093 |
IE-88703 710-0 |
|
RING; SNAP,COUNTER FRT BRG |
2 |
1310- |
|
GVZ |
T=2.07 |
| 438 |
IE-88708 480-0 |
|
WASHER; LOCK PLATE |
3 |
1310- |
|
GVZ |
|
| 325 |
IE-88891 000-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
1310- |
|
GVZ |
T=0.051 |
| 435 |
I1-33219 158-0 |
|
PIPE; INPUT SHAFT |
1 |
1104-1305 |
|
FVZ |
|
| 033 |
I1-33259 127-0 |
|
BEARING; NEEDLE,3RD GEAR |
1 |
1104- |
|
FVZ |
|
| 017 |
I1-33269 112-0 |
|
RING; SNAP,4TH GEAR |
1 |
1310- |
|
GVZ |
T=2.20 |
