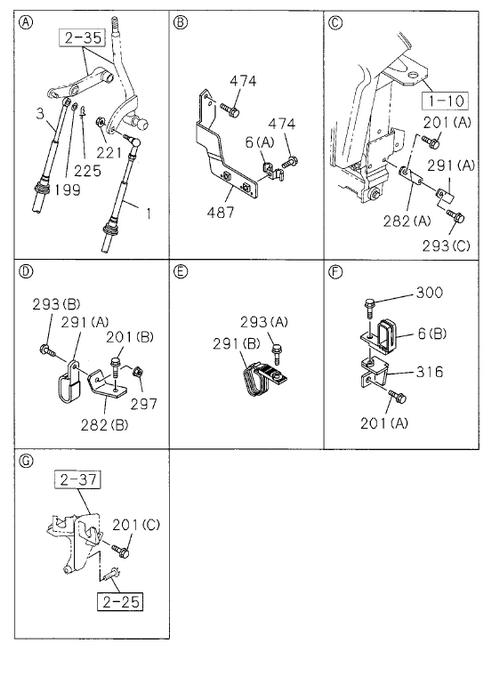

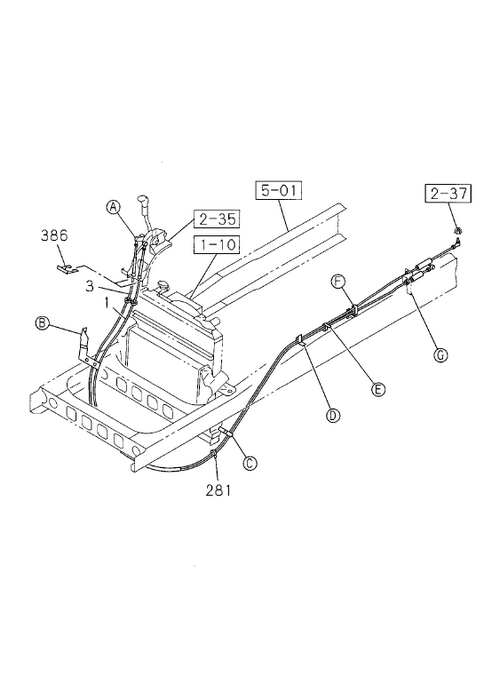

2-36 | MANUAL TRANSMISSION CONT LINK AND CABLE
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 489 | I8-98085 747-0 | CONNECTOR | 2 | 1310- | GVZ | |||
| 477 | I1-87411 019-0 | TUBE; CORRUGATE | 2 | 1310- | GVZ | (A) ID=10 | ||
| 310 | I5-09707 031-1 | CLIP; TUBE | 1 | 1310- | GVZ | (A) L=100 | ||
| 300 | I0-28650 820-0 | BOLT; CLIP | 1 | 1104- | GVZ | M8X20 FLANGE | ||
| 503 | I1-87410 077-0 | TUBE; NYLON | 1 | 1310- | GVZ | OD=4 | ||
| 047 | I9-09111 508-A | NUT; LK,LINK ROD | 2 | 1310- | ALL | M8 | ||
| 316 | I8-98086 439-0 | BRACKET; CLIP | 1 | 1104- | GVZ | |||
| 003 | I8-98250 855-1 | CABLE; SELECT,TRANS CONT | 1 | 1402- | FVZ | L=3615 ; MIXER | ||
| 199 | I0-91614 508-0 | WASHER; PL,SELECT | 1 | 1104- | GVZ | ID=8.4 OD=16 | ||
| 293 | I0-28050 816-0 | BOLT; CLIP,SHIFT TO SELECT | 1 | 1104- | GVZ | (C) M8X16 FLANGE | ||
| 282 | I8-98098 265-2 | BRACKET; TRANS SIDE | 1 | 1104- | GVZ | (A) | ||
| 003 | I8-98017 495-B | CABLE; SELECT,TRANS CONT | 1 | 1104- | FVZ | L=3560 | ||
| 487 | I8-98184 319-A | BRACKET; CONT CABLE | 1 | 1104- | GVZ | |||
| 477 | I1-87411 016-0 | TUBE; CORRUGATE | 1 | 1310- | GVZ | (B) ID=7 | ||
| 474 | I0-51640 825-0 | BOLT; BRKT | 3 | 1104- | GVZ | M8X25 W/WASHER | ||
| 358 | I1-09760 118-1 | ROD END; SCREW | 2 | 1310- | ALL | L=45.5 | ||
| 001 | I8-98182 402-2 | CABLE; SHIFT,TRANS CONT | 1 | 1310- | GVZ | L=3625 | ||
| 386 | I1-09700 966-1 | CLIP; CONT CABLE & TUBE | 2 | 1104- | GVZ | |||
| 006 | I8-98023 991-0 | CLIP; CABLE | 1 | 1104- | GVZ | (B) ID=13 & 10 & 10 L=35.5 | ||
| 001 | I8-98184 317-B | CABLE; SHIFT,TRANS CONT | 1 | 1104- | FVZ | L=3630 | ||
| 221 | I1-09440 062-1 | NUT; SHIFT WIRE TO LEVER | 1 | 1104- | GVZ | M8 FLANGE | ||
| 006 | I1-09700 739-0 | CLIP; CABLE | 1 | 1104- | GVZ | (A) ID=11 & 11 L=17.5 & 17.5 | ||
| 291 | I8-98023 991-0 | CLIP; SHIFT TO SELECT,FRAME | 1 | 1104- | GVZ | (B) ID=13 & 10 & 10 L=35.5 | ||
| 281 | I1-09707 001-1 | CLIP; BAND | 1 | 1104- | GVZ | L=300 | ||
| 310 | I8-94218 436-0 | CLIP; TUBE | 1 | 1310- | GVZ | (C) ID=12 | ||
| 001 | I8-98250 854-1 | CABLE; SHIFT,TRANS CONT | 1 | 1402- | FVZ | L=3695 ; MIXER | ||
| 003 | I8-98182 403-1 | CABLE; SELECT,TRANS CONT | 1 | 1310- | GVZ | L=3790 | ||
| 465 | I8-98141 474-0 | BRACKET; CONNECTOR | 1 | 1310- | GVZ | |||
| 477 | I1-87411 020-0 | TUBE; CORRUGATE | 1 | 1310- | GVZ | (A) ID=10 | ||
| 225 | I8-94157 841-0 | PIN; SELECT CABLE | 1 | 1104- | GVZ | L=27.7 | ||
| 385 | I1-87410 078-0 | TUBE; NYLON | 2 | 1310- | GVZ | OD=4 | ||
| 293 | I0-28650 820-0 | BOLT; CLIP,SHIFT TO SELECT | 1 | 1104- | GVZ | (B) M8X20 FLANGE | ||
| 291 | I0-95325 026-0 | CLIP; SHIFT TO SELECT,FRAME | 2 | 1104- | GVZ | (A) ID=11X2 L=16 | ||
| 147 | I0-84000 808-0 | ROD; LINK | 1 | 1310- | ALL | |||
| 310 | I8-97069 515-0 | CLIP; TUBE | 1 | 1310- | GVZ | (B) ID=6 & 10-13 | ||
| 297 | I0-91180 108-0 | NUT; CLIP | 1 | 1104- | GVZ | M8 FLANGE | ||
| 201 | I0-28050 816-0 | BOLT; BRKT | 1 | 1104- | GVZ | (A) M8X16 FLANGE | ||
| 201 | I0-28050 820-0 | BOLT; BRKT | 1 | 1104- | GVZ | (B) M8X20 FLANGE | ||
| 293 | I0-28050 820-0 | BOLT; CLIP,SHIFT TO SELECT | 1 | 1104- | GVZ | (A) M8X20 FLANGE | ||
| 201 | I0-28151 235-0 | BOLT; BRKT | 1 | 1104- | GVZ | (C) M12X35 FLANGE | ||
| 282 | I1-82699 199-0 | BRACKET; TRANS SIDE | 1 | 1104- | GVZ | (B) | ||
| 526 | I5-09333 062-0 | GROMMET | 1 | 1310- | GVZ |
