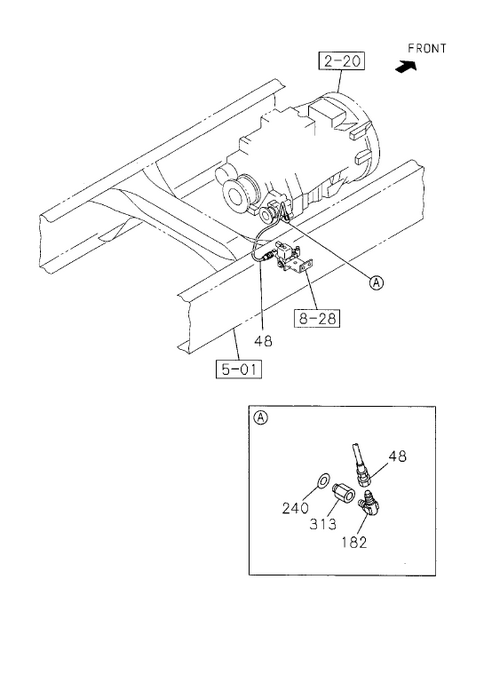

2-85 | POWER TAKE OFF CONTROL
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 240 | I8-98251 344-0 | GASKET; CONNECTOR,PTO | 1 | 1401- | FVZ | ID=12.2 OD=17.2 ; PTO TRANS | ||
| 313 | I1-09654 396-0 | ADAPTER | 1 | 1104- | FVZ | PT1/4 STRAIGHT ; PTO TRANS | ||
| 048 | I1-09363 625-0 | HOSE; FLEX,PTO | 1 | 1104- | FVZ | L=320 ; PTO CONTROL | ||
| 015 | I1-79996 092-0 | LEVER ASM; PTO CONT | 1 | 1104- | FVZ | DUMP CONTROL LEVER<RC4> (A) | ||
| 182 | I1-09650 430-0 | CONNECTOR; FLARE | 1 | 1104- | FVZ | M12 & PT1/4 ELBOW ; PTO TRANS | ||
| 004 | I8-98060 621-0 | BRACKET; PTO CONT | 1 | 1402- | FVZ | MIXER | ||
| 003 | I8-94279 207-0 | BOLT; BRKT,DUMP CONT LEVER | 6 | 1104- | FVZ | M8X20.5 W/LK&PL WASHER ; MIXER | ||
| 015 | I1-79907 048-1 | LEVER ASM; PTO CONT | 1 | 1402- | FVZ | (B) MIXER | ||
| 240 | I1-09630 084-0 | GASKET; CONNECTOR,PTO | 1 | 1104-1312 | FVZ | ID=12.2 OD=17.2 ; PTO TRANS |
