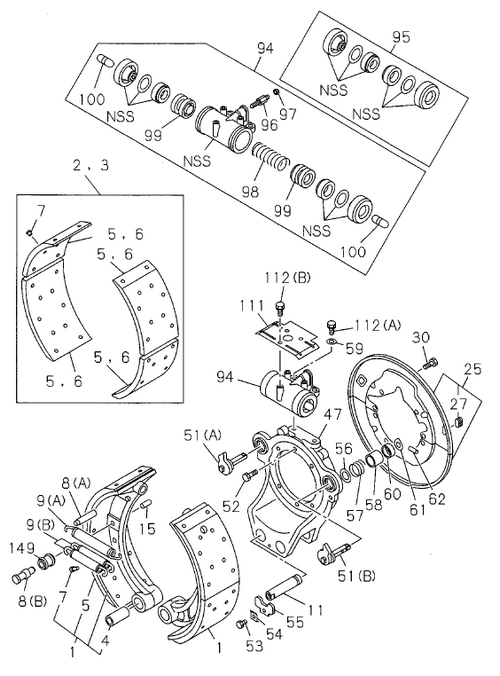

| 008 |
I1-09744 051-0 |
|
PIN; RETURN SPRING,RR BRK SHOE |
4 |
1104- |
|
ALL |
(B) |
| 051 |
I1-47165 077-0 |
|
CAM ASM; SHOE ADJ,RR WHEEL BRK |
2 |
1104- |
|
ALL |
(B) |
| 055 |
I1-47133 005-0 |
|
PLATE; LK,RR WHEEL CYL |
2 |
1104- |
|
ALL |
|
| 149 |
I1-47119 024-0 |
|
PIN; GUIDE RETURN |
4 |
1104- |
|
ALL |
|
| 060 |
I1-47169 031-0 |
|
COVER; ADJ CAM BOOT,RR WHEEL BRK |
4 |
1104- |
|
ALL |
|
| 056 |
I1-47169 033-0 |
|
WASHER; ADJ CAM,RR WHEEL BRK |
4 |
1104- |
|
ALL |
|
| 111 |
I1-47159 081-0 |
|
COVER; WHEEL CYL |
2 |
1104- |
|
ALL |
|
| 001 |
I1-47120 434-0 |
|
SHOE; BRK,RR |
4 |
1104- |
|
ALL |
|
| 096 |
I1-47615 005-0 |
|
SCREW; BLEEDER,RR BRK |
2 |
1104- |
|
ALL |
L=66.5 |
| 098 |
I1-09580 019-0 |
|
SPRING; RR WHEEL CYL |
2 |
1104- |
|
ALL |
|
| 059 |
I0-91510 514-0 |
|
WASHER; LK,RR WHEEL CYL |
4 |
1104- |
|
ALL |
ID=14.2 |
| 025 |
I1-47151 664-0 |
|
COVER SET; RR BRK DRUM |
2 |
1104- |
|
ALL |
|
| 099 |
I1-47624 391-0 |
|
PISTON; RR WHEEL CYL |
4 |
1104- |
|
ALL |
|
| 061 |
I1-47169 032-1 |
|
INDICATOR; WEAR,RR BRK SHOE |
4 |
1104- |
|
ALL |
|
| 006 |
I1-47126 442-0 |
|
LINING; RR BRK SHOE,OVER SIZE |
8 |
1104- |
|
ALL |
|
| 051 |
I1-47165 076-0 |
|
CAM ASM; SHOE ADJ,RR WHEEL BRK |
2 |
1104- |
|
ALL |
(A) |
| 112 |
I0-20851 435-0 |
|
BOLT; WHEEL CYL SETTING |
4 |
1104- |
|
ALL |
(A) M14X35 |
| 058 |
I1-47169 039-0 |
|
BOOT; ADJ CAM,RR WHEEL BRK |
4 |
1104- |
|
ALL |
|
| 052 |
I1-09040 066-0 |
|
BOLT; ANCHOR BRKT |
2 |
1104- |
|
ALL |
M14X50 |
| 047 |
I1-47137 151-0 |
|
BRACKET; ANCHOR PIN,RR WHEEL BRK |
2 |
1104- |
|
ALL |
|
| 009 |
I1-09583 277-2 |
|
SPRING; RETURN,BRK SHOE |
2 |
1104- |
|
ALL |
(A) |
| 015 |
I1-47116 005-0 |
|
PIN; GUIDE,ADJ CAM,RR WHEEL BRK |
4 |
1104- |
|
ALL |
|
| 100 |
I1-47621 009-0 |
|
ROD; PUSH,RR WHEEL CYL |
4 |
1104- |
|
ALL |
|
| 011 |
I1-47131 039-0 |
|
PIN; ANCHOR,RR WHEEL BRK |
4 |
1104- |
|
ALL |
L=121.5 |
| 008 |
I1-47119 025-0 |
|
PIN; RETURN SPRING,RR BRK SHOE |
4 |
1104- |
|
ALL |
(A) |
| 095 |
I1-87830 619-0 |
|
CUP SET; RR WHEEL CYL |
2 |
1104- |
|
ALL |
|
| 003 |
I1-88311 114-1 |
|
LINING SET; RR BRK,OVER SIZE |
2 |
1104- |
|
ALL |
|
| 005 |
I1-47126 441-0 |
|
LINING; RR BRK SHOE,STANDARD |
8 |
1104- |
|
ALL |
|
| 030 |
I1-47159 187-0 |
|
BOLT; DRUM COVER |
12 |
1104- |
|
ALL |
M10X12 |
| 009 |
I1-09583 210-0 |
|
SPRING; RETURN,BRK SHOE |
2 |
1104- |
|
ALL |
(B) |
| 112 |
I0-50540 816-0 |
|
BOLT; WHEEL CYL SETTING |
6 |
1104- |
|
ALL |
(B) M8X16 W/LK WASHER |
| 097 |
I1-47619 011-0 |
|
CAP; BLEEDER,RR WHEEL CYL |
2 |
1104- |
|
ALL |
OD=12 |
| 007 |
I1-09732 035-0 |
|
RIVET; LINING,RR BRK |
AR |
1104- |
|
ALL |
L=19.5 |
| 053 |
I0-20851 016-0 |
|
BOLT; LOCK PLATE |
2 |
1104- |
|
ALL |
M10X16 |
| 094 |
I1-47601 126-0 |
|
CYLINDER; WHEEL,RR BRK |
2 |
1104- |
|
ALL |
|
| 004 |
I1-47112 012-0 |
|
BUSHING; BRK SHOE,RR WHEEL |
4 |
1104- |
|
ALL |
|
| 054 |
I1-47133 011-0 |
|
WASHER; LK,ANCHOR PIN,RR BRK |
2 |
1104- |
|
ALL |
|
| 027 |
I1-09333 151-0 |
|
COVER; CHECK HOLE,DRUM COVER |
4 |
1104- |
|
ALL |
|
| 057 |
I1-09580 508-0 |
|
SPRING; ADJ CAM,RR WHEEL BRK |
4 |
1104- |
|
ALL |
|
| 062 |
I1-47169 030-0 |
|
PIN; ADJ CAM SPINDLE,RR WHEEL BRK |
4 |
1104- |
|
ALL |
|
| 002 |
I1-88311 113-0 |
|
LINING SET; RR BRK,STANDARD |
2 |
1104- |
|
ALL |
|
