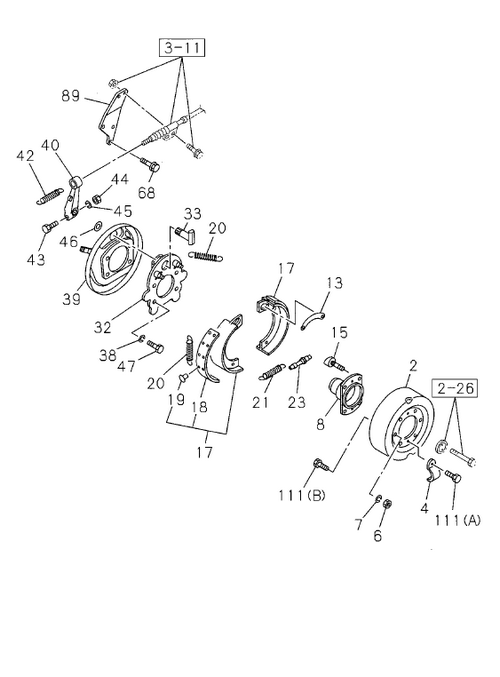

| 033 |
I1-46251 010-0 |
|
SHAFT; CAM,PARKING BRK |
1 |
1104-1309 |
|
GVZ |
|
| 111 |
I0-20851 630-0 |
|
BOLT; COVER,CHECK HOLE |
2 |
1104- |
|
FVZ |
(B) M16X30 |
| 068 |
I0-28951 425-0 |
|
BOLT; BRKT,PARKING BRK CONT |
2 |
1310- |
|
GVZ |
(B) M14X25 FLANGE |
| 068 |
I0-28751 225-0 |
|
BOLT; BRKT,PARKING BRK CONT |
1 |
1310- |
|
GVZ |
(A) M12X25 FLANGE |
| 089 |
I1-46147 305-0 |
|
BRACKET; PARKING BRK CONT |
1 |
1104- |
|
FVZ |
|
| 032 |
I1-46213 096-0 |
|
PLATE; SUPPORT,PARKING BRK |
1 |
1104-1309 |
|
GVZ |
|
| 015 |
I8-98023 172-0 |
|
BOLT; FLANGE |
4 |
1104-1309 |
|
GVZ |
(A) M16X55 |
| 043 |
I8-98061 595-0 |
|
BOLT; LEVER TO CM/SHF |
1 |
1104-1309 |
|
GVZ |
|
| 045 |
I0-91510 510-0 |
|
WASHER; LK,LEVER TO CM/SHF |
1 |
1104-1309 |
|
GVZ |
ID=10.2 |
| 047 |
I0-20851 640-0 |
|
BOLT; SUPPORT PLATE |
4 |
1104- |
|
FVZ |
M16X40 |
| 006 |
I0-91110 516-0 |
|
NUT; FLANGE |
2 |
1104-1309 |
|
GVZ |
M16 |
| 046 |
I9-09855 367-0 |
|
WASHER; LEVER |
1 |
1104-1309 |
|
GVZ |
|
| 039 |
I1-46213 093-0 |
|
COVER; DUST,PARKING BRK |
1 |
1104-1309 |
|
GVZ |
|
| 004 |
I1-46219 019-0 |
|
COVER; ADJ HOLE |
2 |
1104-1309 |
|
GVZ |
|
| 089 |
I1-46147 273-2 |
|
BRACKET; PARKING BRK CONT |
1 |
1310- |
|
GVZ |
|
| 002 |
I1-46211 053-0 |
|
DRUM; PARKING BRK |
1 |
1104-1309 |
|
GVZ |
|
| 018 |
I1-46225 023-0 |
|
LINING; BRK,PARKING |
2 |
1104-1309 |
|
GVZ |
|
| 111 |
I0-50540 820-0 |
|
BOLT; COVER,CHECK HOLE |
2 |
1104-1309 |
|
FVZ |
(A) M8X20 W/LK WASHER |
| 015 |
I1-46219 010-0 |
|
BOLT; FLANGE |
2 |
1310- |
|
GVZ |
(B) M16X38 |
| 013 |
I9-46239 002-0 |
|
BRACE; PARKING BRK |
1 |
1104-1309 |
|
GVZ |
|
| 017 |
I1-46220 022-1 |
|
SHOE; PARKING BRK |
2 |
1104-1309 |
|
GVZ |
|
| 023 |
I1-46240 003-0 |
|
SCREW; ADJ,PARKING BRK SHOE |
1 |
1104-1309 |
|
GVZ |
|
| 021 |
I9-09942 516-0 |
|
SPRING; RETURN,PARKING BRK SHOE |
1 |
1104-1309 |
|
GVZ |
|
| 042 |
I1-09583 104-0 |
|
SPRING; RETURN,LEVER |
1 |
1104-1309 |
|
GVZ |
|
| 047 |
I0-23851 640-0 |
|
BOLT; SUPPORT PLATE |
4 |
1310- |
|
GVZ |
|
| 017 |
I6-46220 022-0 |
|
SHOE; PARKING BRK |
2 |
1104-1309 |
|
GVZ |
(IADG) |
| 007 |
I0-91510 516-0 |
|
WASHER; LK,FLANGE |
2 |
1104-1309 |
|
GVZ |
ID=16.2 |
| 038 |
I0-91510 516-0 |
|
WASHER; LK,SUPPORT PLATE |
4 |
1104-1309 |
|
GVZ |
ID=16.2 |
| 044 |
I0-91111 510-0 |
|
NUT; LEVER TO CM/SHF |
1 |
1104-1309 |
|
GVZ |
M10 |
| 018 |
I6-46225 023-0 |
|
LINING; BRK,PARKING |
2 |
1104-1309 |
|
GVZ |
(IADG) |
| 111 |
I0-50740 820-0 |
|
BOLT; COVER,CHECK HOLE |
2 |
1312- |
|
GVZ |
(A) M8X20 W/LK WASHER |
| 068 |
I0-28151 025-0 |
|
BOLT; BRKT,PARKING BRK CONT |
3 |
1104- |
|
FVZ |
M10X25 FLANGE |
| 020 |
I9-09942 434-0 |
|
SPRING; RETURN,SECONDARY,PARKING BRK |
2 |
1104-1309 |
|
GVZ |
|
| 040 |
I1-46252 046-0 |
|
LEVER; CM/SHF,PARKING BRK |
1 |
1104-1309 |
|
GVZ |
|
| 008 |
I8-98184 079-0 |
|
FLANGE; PARKING BRK |
1 |
1104- |
|
FVZ |
|
| 008 |
I1-37243 311-0 |
|
FLANGE; PARKING BRK |
1 |
1310- |
|
GVZ |
|
| 019 |
I1-09732 012-0 |
|
RIVET; LINING,PARKING BRK |
32 |
1104-1309 |
|
GVZ |
|
