3-22 | AIR CONTROL PARTS
GIGA
GIGA FVZ

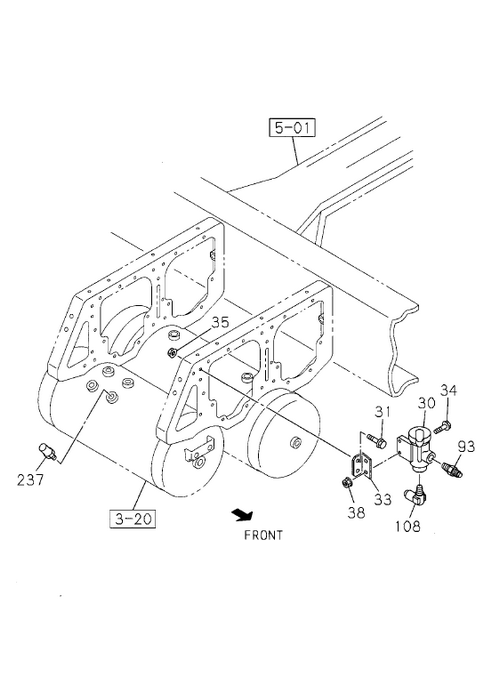

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 035 | I0-91180 108-0 | NUT; GOV TO FRAME | 2 | 1104- | ALL | M8 FLANGE | ||
| 038 | I0-91180 108-0 | NUT; BRKT,GOV | 2 | 1104- | ALL | M8 FLANGE | ||
| 093 | I1-09650 074-1 | CONNECTOR; GOV | 1 | 1104- | ALL | M12 & PT1/4 STRAIGHT | ||
| 237 | I1-48320 012-2 | VALVE; SAFETY | 1 | 1104- | ALL | R3/8 | ||
| 031 | I0-28650 825-0 | BOLT; GOV TO FRAME | 2 | 1104- | ALL | M8X25 FLANGE | ||
| 108 | I1-09660 956-0 | CONNECTOR; ELBOW | 1 | 1104- | ALL | DIN8 & R1/4 ELBOW | ||

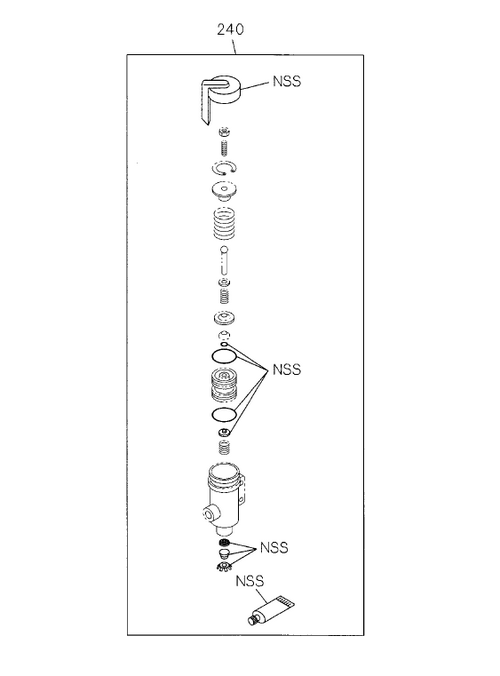

| 240 | I1-85576 467-0 | REPAIR KIT; AIR CONT GOV | 1 | 1104- | ALL | W/GREASE | ||
| 030 | I1-48350 093-2 | GOVERNOR; AIR CONT | 1 | 1104- | ALL | |||
| 034 | I0-28650 830-0 | BOLT; BRKT,GOV | 2 | 1104- | ALL | M8X30 FLANGE | ||
| 033 | I8-98120 459-1 | BRACKET; GOV,AIR CONT | 1 | 1104- | ALL |
