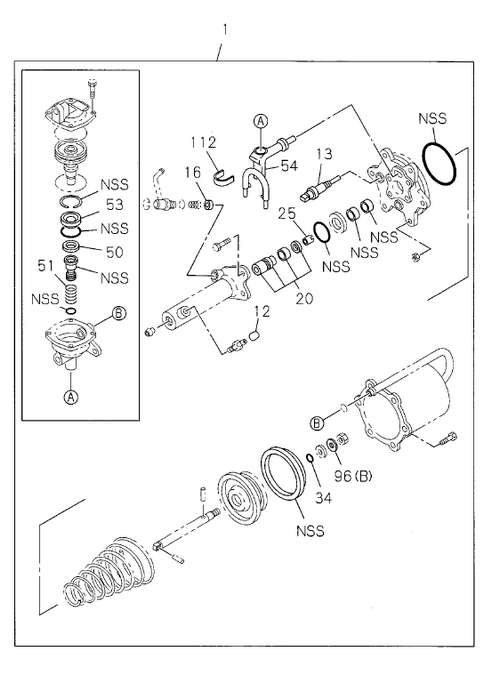

| 021 |
I1-47821 041-0 |
|
GASKET; CUP |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 032 |
I1-47824 037-0 |
|
SPRING; CYL SHELL,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 |
| 019 |
I1-47819 235-0 |
|
CONNECTOR; END PLATE,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 030 |
I1-47829 124-0 |
|
ROD; PUSH,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 |
| 039 |
I1-47811 143-0 |
|
SHELL; CYL,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-795-0 |
| 078 |
I1-47819 232-0 |
|
COLLAR; AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 007 |
I1-47829 128-0 |
|
PLATE; END,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 |
| 047 |
I1-47841 087-0 |
|
BODY; RELAY VLV,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 013 |
I1-47819 236-0 |
|
SWITCH; WARNING,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 025 |
I1-47812 023-0 |
|
SEAL; VALVE |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 031 |
I1-47829 126-0 |
|
PIN; STRAIGHT |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 098 |
I1-47824 039-0 |
|
SPRING; VALVE |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 037 |
I0-91111 512-0 |
|
NUT; PUSH ROD,SHELL,AIR MASTER |
1 |
1104- |
|
ALL |
M12 ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 015 |
I8-97096 430-0 |
|
NUT; END PLATE TO SHELL,AIR MASTER |
7 |
1104- |
|
ALL |
M10 FLANGE ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 043 |
I1-47829 133-0 |
|
COVER; RELAY VLV,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 020 |
I1-47812 022-0 |
|
PISTON ASM; HYDRAULIC |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 007 |
I1-47829 127-0 |
|
PLATE; END,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-795-0 |
| 112 |
I1-47819 188-0 |
|
CLAMP; EXH COVER,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 022 |
I9-83325 077-0 |
|
RING; PISTON,HYDRAULIC |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 030 |
I1-47829 125-0 |
|
ROD; PUSH,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-795-0 |
| 026 |
I1-47829 039-0 |
|
PIN; HYD PISTON,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 024 |
I1-47829 132-0 |
|
SPRING; HYD PISTON,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 054 |
I1-47819 187-0 |
|
COVER; EXH,END PLATE,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 032 |
I1-47829 113-0 |
|
SPRING; CYL SHELL,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-795-0 |
| 016 |
I1-47812 024-0 |
|
VALVE ASM |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 042 |
I1-33739 779-0 |
|
SCREW; RELAY VLV COVER,AIR MASTER |
4 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 096 |
I1-47829 032-0 |
|
WASHER |
1 |
1104- |
|
ALL |
(B) ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 002 |
I1-47841 098-0 |
|
VALVE; RELAY,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 038 |
I9-83315 078-0 |
|
BOLT; END PLATE TO SHELL,AIR MASTER |
6 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 011 |
I9-83331 704-0 |
|
PLUG; CAP,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 039 |
I1-47811 141-0 |
|
SHELL; CYL,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 |
| 044 |
I1-47821 054-0 |
|
PISTON; RELAY VLV,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 072 |
I1-47811 140-0 |
|
CYLINDER; AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 |
| 053 |
I1-47819 238-0 |
|
SEAT; GUIDE VALVE,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 012 |
I9-83335 044-0 |
|
PROTECTOR; CAP,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 096 |
I1-47829 053-0 |
|
WASHER |
1 |
1104- |
|
ALL |
(A) ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 111 |
I1-47819 234-0 |
|
BOLT; CYL,AIR MASTER |
3 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 072 |
I1-47811 144-0 |
|
CYLINDER; AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-795-0 |
| 033 |
I1-47812 025-0 |
|
PLATE; PISTON,SHELL,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 051 |
I1-47824 040-0 |
|
SPRING; INL VLV,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 050 |
I1-47841 091-0 |
|
RETAINER; VALVE,INL,AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 034 |
I9-09561 111-0 |
|
GASKET |
1 |
1104- |
|
ALL |
ID=11.0 ASM PART 1-47800-794-0 ; 1-47800-795-0 |
| 001 |
I1-85576 209-0 |
|
REPAIR KIT; AIR MASTER |
1 |
1104- |
|
ALL |
ASM PART 1-47800-794-0 ; 1-47800-795-0 |
