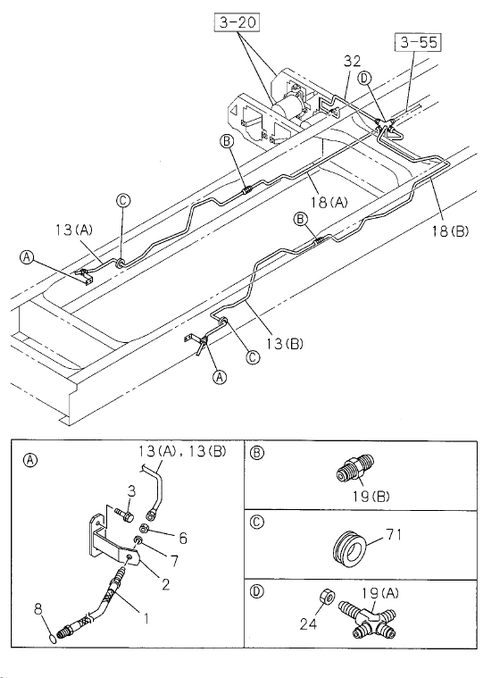

3-52 | BRAKE PIPING; OIL,FRONT
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 024 | I0-91110 514-0 | NUT; UNION,OIL PIPE | 1 | 1104- | ALL | M14 | ||
| 003 | I0-28650 825-0 | BOLT; BRKT,FLEX HOSE,FRT BRK | 4 | 1104- | ALL | M8X25 FLANGE | ||
| 019 | I1-09656 019-1 | UNION; OIL PIPE | 1 | 1104- | ALL | (A) | ||
| 008 | I9-09920 472-0 | GASKET; FLEX HOSE,FRT BRK | 2 | 1104- | ALL | ID=9 OD=17 | ||
| 013 | I1-47428 737-0 | PIPE; OIL,UNION TO UNION | 1 | 1404- | GVZ | (C) L=1699 | ||
| 071 | I9-09956 092-A | GROMMET; OIL PIPE | 2 | 1104- | ALL | ID=24 OD=30 T=17 | ||
| 013 | I1-47428 734-0 | PIPE; OIL,UNION TO UNION | 1 | 1104- | FVZ | (B) L=1320 | ||
| 013 | I1-47428 745-0 | PIPE; OIL,UNION TO UNION | 1 | 1404- | GVZ | (D) L=2916 | ||
| 132 | I8-98184 180-A | PIPE; OIL,BRK,HYD UNIT | 1 | 1312- | FVZ | L=381 | ||
| 001 | I0-05212 610-0 | HOSE; FLEX,FRT BRK | 2 | 1104- | ALL | L=610 | ||
| 002 | I8-98177 524-0 | BRACKET; FLEX HOSE,FRT BRK | 2 | 1104- | ALL | |||
| 007 | I0-91510 512-0 | WASHER; LK,FLEX HOSE,FRT BRK | 2 | 1104- | ALL | ID=12.2 | ||
| 132 | I8-98247 352-0 | PIPE; OIL,BRK,HYD UNIT | 1 | 1404- | GVZ | L=667 | ||
| 018 | I1-47428 727-0 | PIPE; OIL,UNION TO FRT FLEX HOSE | 1 | 1104- | FVZ | (A) L=689 | ||
| 018 | I1-47428 739-0 | PIPE; OIL,UNION TO FRT FLEX HOSE | 1 | 1310- | FVZ | (B) L=1924 | ||
| 013 | I1-47428 734-0 | PIPE; OIL,UNION TO UNION | 1 | 1104- | FVZ | (A) L=1331 | ||
| 006 | I9-09840 280-0 | NUT; FLEX HOSE,FRT BRK | 2 | 1104- | ALL | M12 | ||
| 019 | I0-92113 006-0 | UNION; OIL PIPE | 2 | 1104- | FVZ | (B) M12 L=40 |
