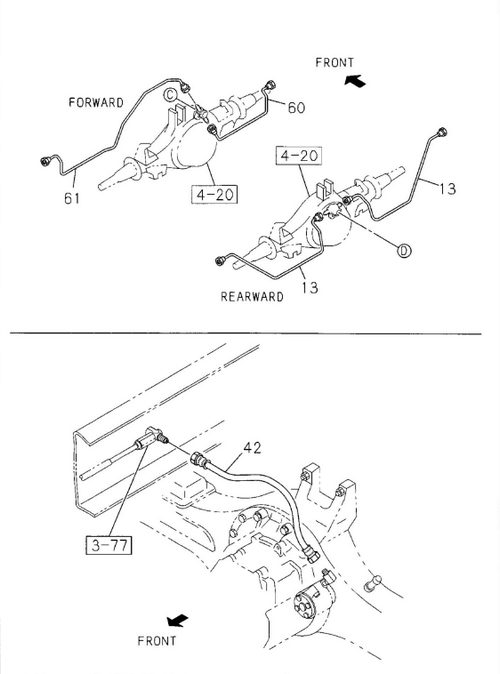

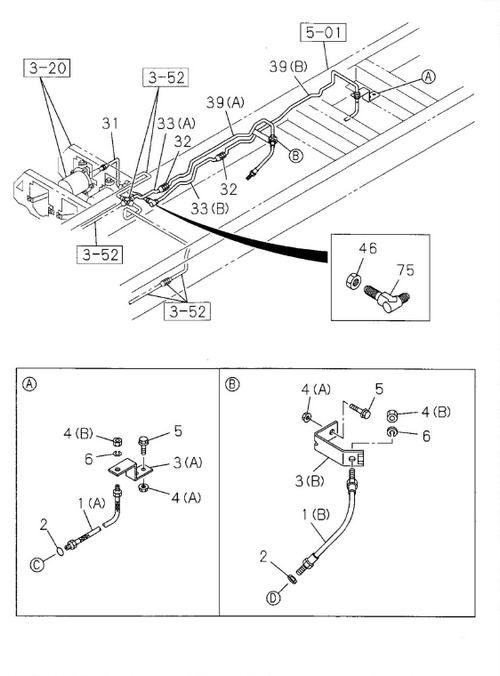

3-55 | BRAKE PIPING; OIL,REAR
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 046 | I9-09840 280-0 | NUT; UNION,OIL PIPE | 1 | 1104- | ALL | M12 | ||
| 061 | I1-47426 899-A | PIPE ASM; BRK | 1 | 1104-1309 | ALL | L=1193 | ||
| 033 | I1-47427 962-0 | PIPE; OIL,UNION TO UNION | 1 | 1404- | GVZ | (C) L=2092 | ||
| 002 | I9-09920 472-0 | GASKET; FLEX HOSE,RR BRK | 2 | 1104- | ALL | ID=9 OD=17 | ||
| 006 | I0-91510 512-0 | WASHER; LK,FLEX HOSE | 2 | 1104- | ALL | ID=12.2 | ||
| 138 | I1-47428 726-0 | PIPE; HYDRAULIC UNIT | 1 | 1312-1403 | ALL | L=646 | ||
| 033 | I1-47428 746-0 | PIPE; OIL,UNION TO UNION | 1 | 1310- | FVZ | (B) L=3363 ; LWB | ||
| 033 | I1-47428 738-0 | PIPE; OIL,UNION TO UNION | 1 | 1402- | FVZ | (C) L=1716 ; MIXER | ||
| 060 | I1-47427 915-A | PIPE ASM; BRK | 1 | 1104-1309 | ALL | L=779 | ||
| 032 | I0-92113 006-0 | UNION; OIL PIPE | 1 | 1104- | GVZ | M12 L=40 ; MIXER | ||
| 013 | I1-47426 902-A | PIPE; BRK,RR AXLE | 1 | 1104-1309 | ALL | L=857 | ||
| 004 | I0-91180 108-0 | NUT; BRKT,FLEX HOSE,RR BRK | 4 | 1104- | ALL | (A) M8 FLANGE | ||
| 033 | I8-98179 287-A | PIPE; OIL,UNION TO UNION | 1 | 1104- | FVZ | (A) L=1393 ; DUMP | ||
| 001 | I1-09364 188-0 | HOSE; FLEX,RR BRK | 1 | 1104- | ALL | (B) L=450 | ||
| 001 | I1-09364 197-0 | HOSE; FLEX,RR BRK | 1 | 1104- | ALL | (A) L=600 | ||
| 039 | I1-47428 742-0 | PIPE; OIL,UNION TO RR FLEX HOSE | 1 | 1104- | ALL | (B) L=2409 | ||
| 033 | I8-98179 288-A | PIPE; OIL,UNION TO UNION | 1 | 1104- | FVZ | (B) L=1556 ; DUMP | ||
| 005 | I0-28650 830-0 | BOLT; BRKT,FLEX HOSE,RR BRK | 4 | 1104- | ALL | M8X30 FLANGE | ||
| 003 | I1-47475 357-2 | BRACKET; FLEX HOSE,RR BRK | 1 | 1104- | ALL | (B) | ||
| 004 | I9-09840 280-0 | NUT; BRKT,FLEX HOSE,RR BRK | 2 | 1104- | ALL | (B) M12 | ||
| 033 | I1-47428 730-0 | PIPE; OIL,UNION TO UNION | 1 | 1402-1403 | GVZ | (D) L=966 | ||
| 013 | I1-47426 901-A | PIPE; BRK,RR AXLE | 1 | 1104-1309 | ALL | L=988 | ||
| 003 | I1-47465 608-0 | BRACKET; FLEX HOSE,RR BRK | 1 | 1104- | ALL | (A) | ||
| 042 | I1-09363 680-0 | HOSE; FLEX,DIFF LOCK | 1 | 1104- | ALL | L=570 | ||
| 039 | I1-47428 729-0 | PIPE; OIL,UNION TO RR FLEX HOSE | 1 | 1104- | FVZ | (A) L=856 ; EXC. MIXER | ||
| 075 | I0-92125 206-0 | UNION; OIL PIPE | 1 | 1104- | ALL | M12 ELBOW | ||
| 033 | I1-47428 745-0 | PIPE; OIL,UNION TO UNION | 1 | 1310- | FVZ | (A) L=3196 ; LWB |
