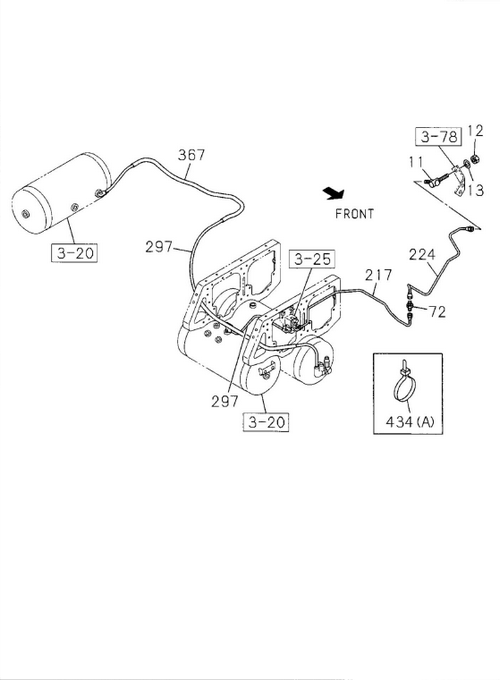

3-70 | BRAKE PIPING; AIR,AIR MASTER
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 377 | I0-28650 830-0 | BOLT; BRKT FIX | 1 | 1104- | ALL | M8X30 FLANGE | ||
| 297 | I1-87411 006-0 | TUBE; NYLON | AR | 1104- | ALL | OD=8 | ||
| 296 | I1-87411 011-0 | TUBE; NYLON | AR | 1104- | ALL | OD=12 | ||
| 229 | I1-09660 873-0 | ADAPTER; NYLON TUBE | 1 | 1404- | GVZ | (B) DIN8 & M12 STRAIGHT | ||
| 090 | I0-91180 108-0 | NUT; TUBE CLIP | 1 | 1104- | ALL | M8 FLANGE | ||
| 367 | I1-87411 031-0 | TUBE; CORRUGATE | AR | 1312- | ALL | ID=25 | ||
| 176 | I1-49116 726-0 | PIPE; AIR,AIR DRYER TO UNION | 1 | 1104- | ALL | L=1427 | ||
| 436 | I0-91180 108-0 | NUT; CLIP | 2 | 1104- | ALL | M8 FLANGE | ||
| 229 | I1-09660 885-0 | ADAPTER; NYLON TUBE | 1 | 1310- | FVZ | (A) M12 & RC1/4 STRAIGHT | ||
| 343 | I1-09661 221-0 | UNION; NYLON TUBE FVZ MIXER | 1 | 1402- | FVZ | MIXER | ||
| 367 | I1-87411 022-0 | TUBE; CORRUGATE | AR | 1104- | ALL | ID=13 | ||
| 032 | I1-09337 023-0 | SLEEVE; RUBBER,AIR PIPE | 1 | 1104- | ALL | ID=32 OD=36 L=50 | ||
| 435 | I0-28650 820-0 | BOLT; CLIP | 2 | 1104- | ALL | M8X20 FLANGE | ||
| 012 | I9-09840 280-0 | NUT; UNION | 1 | 1104- | ALL | M12 | ||
| 273 | I1-09332 011-1 | GROMMET | 1 | 1312-1403 | ALL | ID=28 OD=35 T=25 | ||
| 224 | I8-98184 733-A | PIPE; AIR,UNION TO FLEX HOSE | 1 | 1104- | ALL | L=720 | ||
| 001 | I8-98067 411-0 | HOSE; FLEX,AIR TANK | 1 | 1402- | FVZ | L=320 ; MIXER | ||
| 089 | I0-28650 820-0 | BOLT; TUBE CLIP | 1 | 1104- | ALL | M8X20 FLANGE | ||
| 006 | I8-98117 117-0 | BRACKET; FLEX HOSE,AIR TANK | 1 | 1104- | ALL | |||
| 171 | I1-47428 808-0 | PIPE; AIR,GOV TO AIR DRYER | 1 | 1104- | ALL | L=515 | ||
| 258 | I1-09660 956-0 | CONNECTOR; NYLON TUBE | 1 | 1310- | FVZ | DIN8 & R1/4 ELBOW | ||
| 013 | I0-91510 812-0 | WASHER; LK,UNION | 1 | 1104- | ALL | ID=12.2 | ||
| 217 | I8-98179 119-A | PIPE; VAC,UNION TO MAG VLV | 1 | 1104- | ALL | L=954 | ||
| 450 | I1-47476 758-0 | BRACKET; CLIP | 1 | 1104- | ALL | L=115 B=25 | ||
| 296 | I1-87411 006-0 | TUBE; NYLON | AR | 1104- | ALL | OD=8 | ||
| 367 | I1-87411 019-0 | TUBE; CORRUGATE | AR | 1104- | ALL | ID=10 | ||
| 072 | I0-92113 006-0 | UNION; AIR PIPE | 1 | 1104- | ALL | M12 L=40 | ||
| 297 | I1-87411 012-0 | TUBE; NYLON | AR | 1104- | ALL | OD=12 | ||
| 434 | I1-09700 675-0 | CLIP | 2 | 1104- | ALL | (B) ID=16 & 7 L=21 & 17 | ||
| 021 | I8-98189 194-A | PIPE; AIR,UNION TO AIR DRYER | 1 | 1104- | ALL | L=1713 | ||
| 001 | I8-97607 730-0 | HOSE; FLEX,AIR TANK | 1 | 1104- | GVZ | L=310 | ||
| 434 | I1-09707 183-0 | CLIP | 3 | 1104- | FVZ | (A) L=350 ; PTO CONTROL | ||
| 184 | I1-09363 656-0 | HOSE; FLEX,AIR GOV | 1 | 1402- | FVZ | L=320 ; MIXER | ||
| 007 | I0-28650 830-0 | BOLT; BRKT,FLEX HOSE,AIR TANK | 2 | 1104- | ALL | M8X30 FLANGE | ||
| 428 | I0-91180 108-0 | NUT; BRKT | 1 | 1104- | ALL | M8 FLANGE | ||
| 184 | I1-09363 624-0 | HOSE; FLEX,AIR GOV | 1 | 1104- | GVZ | L=350 | ||
| 011 | I0-92125 206-0 | UNION; AIR PIPE | 1 | 1104- | ALL | M12 ELBOW |
