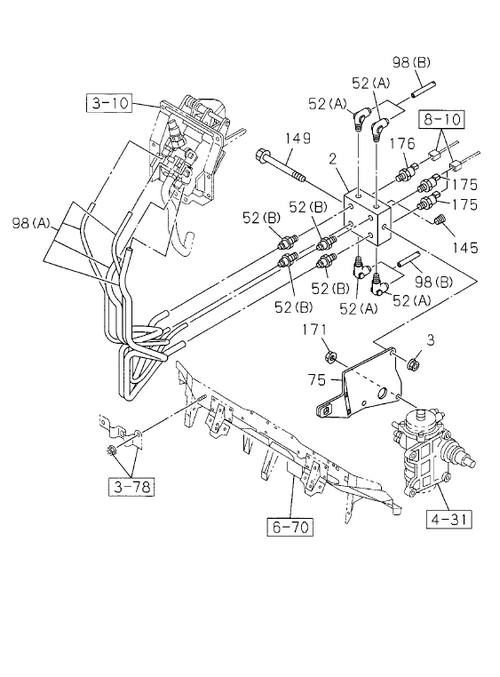

3-75 | BRAKE PIPING; AIR,FRONT
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 098 | I8-98139 141-A | TUBE; NYLON | 1 | 1104- | ALL | (A) | ||
| 052 | I1-09660 967-0 | CONNECTOR; NYLON TUBE | 4 | 1104- | ALL | (B) DIN12 & R1/4 STRAIGHT | ||
| 175 | I1-80220 023-1 | SENSOR; AIR PRESS | 2 | 1104- | ALL | THREAD R1/4 SENSOR AIR METER | ||
| 052 | I1-09660 958-0 | CONNECTOR; NYLON TUBE | 4 | 1104- | ALL | (A) DIN12 & R1/4 ELBOW | ||
| 098 | I1-87411 014-0 | TUBE; NYLON | AR | 1104- | ALL | (B) OD=12 | ||
| 149 | I0-28050 825-0 | BOLT; UNION | 1 | 1404- | GVZ | (B) M8X25 FLANGE | ||
| 117 | I1-87411 031-0 | TUBE; CORRUGATE | AR | 1312- | ALL | ID=25 | ||
| 117 | I1-87411 036-0 | TUBE; CORRUGATE | AR | 1312- | ALL | ID=32 | ||
| 117 | I1-87411 033-0 | TUBE; CORRUGATE | AR | 1312- | ALL | ID=28 | ||
| 145 | I9-99204 513-0 | PLUG | 1 | 1104- | ALL | PT1/4 | ||
| 052 | I1-09660 959-0 | CONNECTOR; NYLON TUBE | 1 | 1404- | GVZ | (C) DIN12 & R3/8 ELBOW | ||
| 117 | I1-87411 034-0 | TUBE; CORRUGATE | AR | 1104- | ALL | ID=28 | ||
| 098 | I1-87411 013-0 | TUBE; NYLON | AR | 1104- | ALL | (B) OD=12 | ||
| 098 | I1-87411 007-0 | TUBE; NYLON | AR | 1104- | ALL | (B) OD=8 | ||
| 098 | I1-87411 006-0 | TUBE; NYLON | AR | 1312- | ALL | (B) OD=8 | ||
| 171 | I7-05110 010-A | NUT; BRACKET | 2 | 1104- | ALL | M10 FLANGE | ||
| 003 | I0-91180 108-0 | NUT; PIPE UNION | 1 | 1104- | ALL | M8 FLANGE | ||
| 075 | I8-98099 485-1 | BRACKET; UNION | 1 | 1104- | ALL | |||
| 176 | I8-98010 857-0 | SWITCH; AIR PRESS | 1 | 1104- | ALL | STAMP 0.3 | ||
| 117 | I1-87411 022-0 | TUBE; CORRUGATE | AR | 1104- | ALL | ID=13 | ||
| 117 | I1-87411 019-0 | TUBE; CORRUGATE | AR | 1104- | ALL | ID=10 | ||
| 098 | I1-87411 012-0 | TUBE; NYLON | AR | 1312- | ALL | (B) OD=12 | ||
| 117 | I1-87411 035-0 | TUBE; CORRUGATE | AR | 1104- | ALL | ID=32 | ||
| 149 | I0-28050 800-0 | BOLT; UNION | 1 | 1104- | ALL | (A) M8X100 FLANGE | ||
| 002 | I8-98057 394-1 | UNION; AIR PIPE | 1 | 1104- | ALL | |||
| 052 | I8-98142 232-0 | CONNECTOR; NYLON TUBE | 1 | 1404- | GVZ | (D) | ||
| 098 | I1-87411 011-0 | TUBE; NYLON | AR | 1104- | ALL | (B) OD=12 |
