Key	PART NO	DESCRIPTION	QTY	APP DATE	MODEL	REMARKS

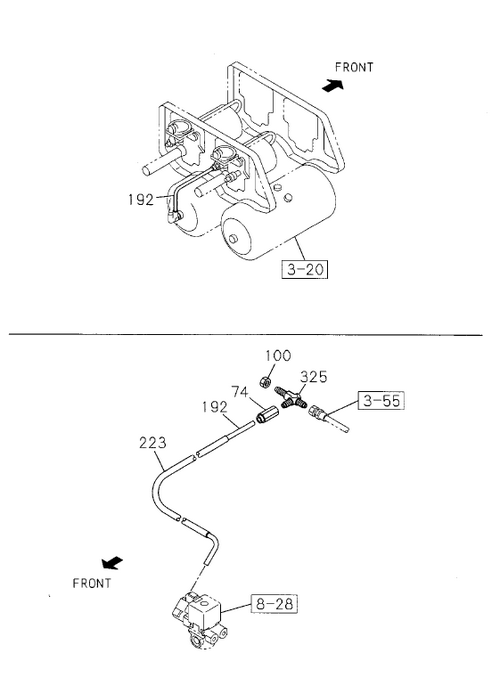

325	I1-09654 059-2	UNION; 2WAY	1	1104-	ALL	M12 2WAY
085	I1-72498 019-1	GASKET; NYLON TUBE	3	1404-	GVZ	180X40
223	I1-87411 020-0	TUBE; CORRUGATE	AR	1104-1303	ALL	ID=10
192	I1-87411 008-0	TUBE; NYLON	AR	1310-	ALL	OD=8
223	I1-87411 021-0	TUBE; CORRUGATE	AR	1310-	ALL	ID=10
212	I9-61166 007-0	GROMMET; AIR PIPE	1	1404-	GVZ	OD=24
192	I1-87411 006-0	TUBE; NYLON	AR	1312-	ALL	OD=8
192	I1-87411 007-0	TUBE; NYLON	AR	1104-1303	ALL	OD=8
072	I0-91180 108-0	NUT; BRKT	2	1404-	GVZ	M8 FLANGE

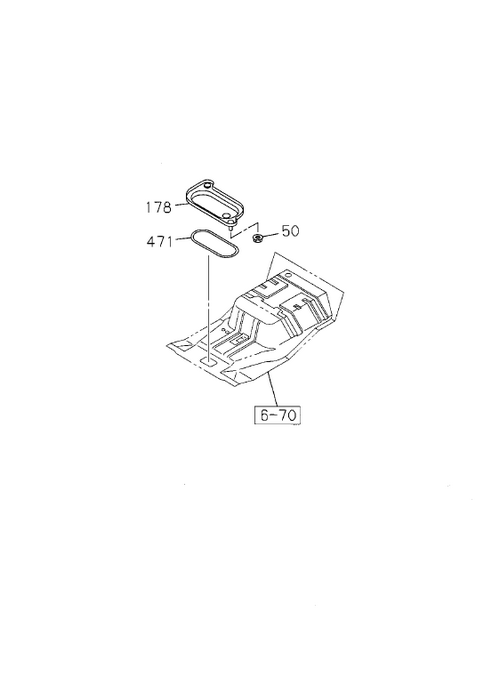

178	I8-98017 052-1	BRACKET; UNION	1	1104-	FVZ
050	I0-91180 108-0	NUT; UNION BRKT	2	1104-	FVZ	M8 FLANGE
074	I1-09660 873-0	ADAPTER; UNION TO NYLON TUBE	1	1104-	ALL	DIN8 & M12 STRAIGHT
472	I8-98067 708-0	TUBE; SPUTTER	1	1404-	GVZ
089	I8-97611 963-1	CONNECTOR; NYLON TUBE	1	1404-	GVZ	(B) DIN8X2 ELBOW
192	I1-87411 011-0	TUBE; NYLON	AR	1104-	ALL	OD=12
223	I1-87411 027-0	TUBE; CORRUGATE	AR	1312-	ALL	ID=19
471	I1-79738 832-0	SEAL; BRKT	1	1104-	ALL
333	I8-98017 054-1	BRACKET; CONNECTOR	1	1404-	GVZ
315	I0-95324 825-0	CLIP	1	1404-	GVZ	ID=9X2 L=16
089	I8-97611 979-1	CONNECTOR; NYLON TUBE	1	1404-	GVZ	(A)
100	I0-91180 112-0	NUT; UNION	1	1104-	ALL	M12 FLANGE
297	I1-09707 183-0	CLIP; BAND	3	1310-	ALL	L=350
085	I1-72498 022-1	GASKET; NYLON TUBE	2	1404-	GVZ	100X40
089	I1-09660 693-0	CONNECTOR; NYLON TUBE	1	1404-	GVZ	(C) PT1/4 & PT1/4 2WAY
223	I1-87411 022-0	TUBE; CORRUGATE	AR	1312-	ALL	ID=13
223	I1-87411 019-0	TUBE; CORRUGATE	AR	1312-	ALL	ID=10
