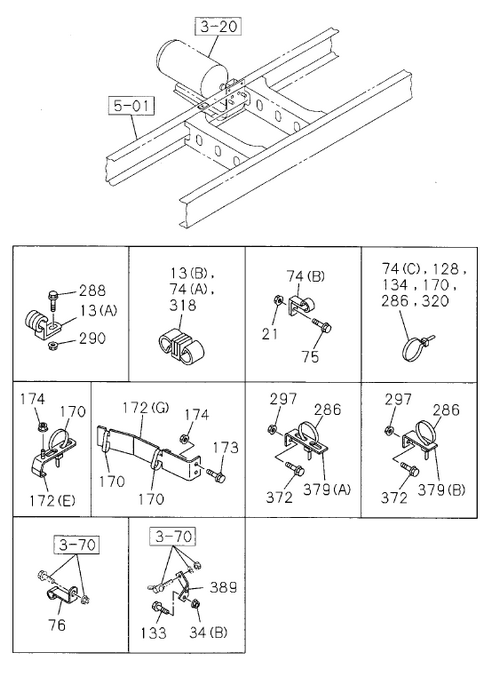

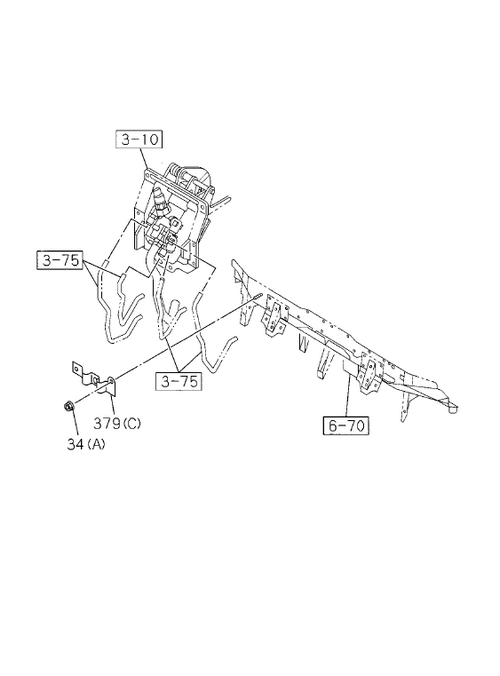

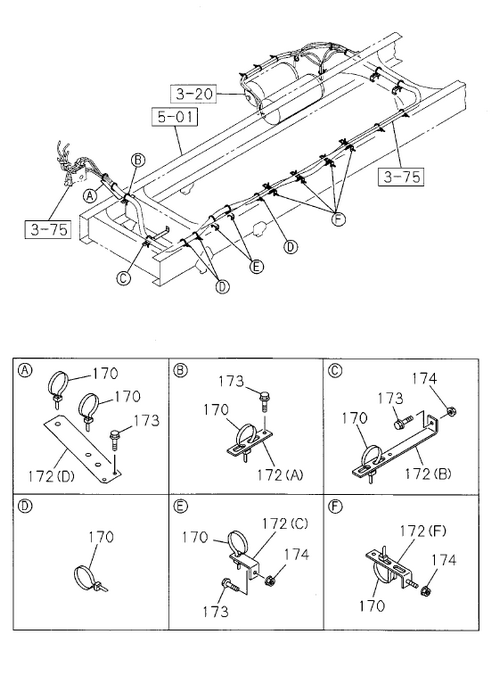

3-78 | FIXING PARTS; AIR PIPING
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 379 | I1-47477 716-1 | BRACKET; NYLON TUBE | 1 | 1104-1303 | GVZ | (A) L=100 H=30 | ||
| 173 | I0-28650 825-0 | BOLT; CLIP BRKT | 2 | 1104- | ALL | M8X25 FLANGE | ||
| 170 | I1-09707 183-0 | CLIP; NYLON TUBE | 34 | 1104- | GVZ | (A) L=350 ; MIXER | ||
| 173 | I0-28650 820-0 | BOLT; CLIP BRKT | 2 | 1104- | ALL | M8X20 FLANGE | ||
| 288 | I0-28650 820-0 | BOLT; CLIP,AIR PIPE | 1 | 1104- | ALL | M8X20 FLANGE | ||
| 379 | I8-98119 184-1 | BRACKET; NYLON TUBE | 1 | 1312- | FVZ | (E) DUMP | ||
| 034 | I0-91180 106-0 | NUT; BRKT | 2 | 1104- | ALL | (A) M6 FLANGE | ||
| 376 | I0-28650 830-0 | BOLT; BRKT | 1 | 1404- | GVZ | M8X30 FLANGE | ||
| 341 | I1-09709 178-0 | CLIP; HARNESS | 1 | 1312-1403 | ALL | (A) OD=9 H=6 | ||
| 074 | I1-09707 183-0 | CLIP; NYLON TUBE | 2 | 1310- | GVZ | (C) L=350 | ||
| 318 | I1-09709 276-1 | CLIP; AIR PIPE | 5 | 1104- | ALL | ID=6.35 & 15 | ||
| 172 | I8-98184 177-A | BRACKET; TUBE CLIP | 1 | 1104- | ALL | (G) | ||
| 074 | I1-09700 838-0 | CLIP; NYLON TUBE | 1 | 1104- | ALL | (B) ID=13 H=50 L=25 | ||
| 372 | I0-28650 825-0 | BOLT; CLIP BRKT | 1 | 1312-1403 | GVZ | M8X25 FLANGE | ||
| 172 | I1-47477 716-1 | BRACKET; TUBE CLIP | 2 | 1104- | ALL | (C) L=60 H=30 | ||
| 172 | I1-47477 646-3 | BRACKET; TUBE CLIP | 1 | 1104- | ALL | (B) L=225 H=30 | ||
| 075 | I0-28650 820-0 | BOLT; CLIP | 1 | 1104- | ALL | M8X20 FLANGE | ||
| 134 | I1-09707 183-0 | CLIP; AIR PIPE | 1 | 1104- | ALL | L=350 | ||
| 022 | I1-47477 716-1 | BRACKET; CLIP | 1 | 1404- | GVZ | L=100 H=30 | ||
| 173 | I0-28650 830-0 | BOLT; CLIP BRKT | 4 | 1104- | ALL | M8X30 FLANGE | ||
| 320 | I5-09707 030-1 | CLIP; BAND,FLEX FIX | 1 | 1104- | ALL | L=250 | ||
| 013 | I1-09700 603-0 | CLIP; AIR PIPE | 1 | 1312-1403 | ALL | (A) ID=6 H=20 L=20 | ||
| 172 | I8-98031 420-2 | BRACKET; TUBE CLIP | 1 | 1104- | ALL | (D) | ||
| 389 | I1-47471 363-0 | BRACKET; UNION | 1 | 1104- | ALL | |||
| 034 | I0-91180 108-0 | NUT; BRKT | 1 | 1104- | ALL | (B) M8 FLANGE | ||
| 172 | I8-98177 873-0 | BRACKET; TUBE CLIP | 4 | 1104- | ALL | (F) | ||
| 341 | I5-09707 030-1 | CLIP; HARNESS | 1 | 1402- | FVZ | (C) L=250 ; MIXER | ||
| 379 | I1-47477 755-1 | BRACKET; NYLON TUBE | 1 | 1310- | FVZ | (D) L=90 ; LWB | ||
| 174 | I0-91180 108-0 | NUT; CLIP BRKT | 11 | 1104- | ALL | M8 FLANGE | ||
| 341 | I9-09917 427-0 | CLIP; HARNESS | 4 | 1312-1401 | FVZ | (D) ID=14 L=44 | ||
| 074 | I1-09709 281-1 | CLIP; NYLON TUBE | 1 | 1104- | ALL | (A) ID=12 & 15 | ||
| 372 | I0-28650 830-0 | BOLT; CLIP BRKT | 4 | 1104- | GVZ | M8X30 FLANGE | ||
| 290 | I0-91180 108-0 | NUT; CLIP,AIR PIPE | 1 | 1104- | ALL | M8 FLANGE | ||
| 172 | I1-47477 514-3 | BRACKET; TUBE CLIP | 1 | 1104- | ALL | (A) | ||
| 128 | I1-09707 183-0 | CLIP; NYLON TUBE | 2 | 1104- | GVZ | L=350 ; MIXER | ||
| 172 | I8-98047 730-0 | BRACKET; TUBE CLIP | 2 | 1104- | ALL | (E) | ||
| 286 | I1-09707 183-0 | CLIP; NYLON TUBE | 5 | 1310- | GVZ | L=350 ; MIXER | ||
| 379 | I1-47477 629-2 | BRACKET; NYLON TUBE | 1 | 1402- | FVZ | (A) L=150 H=30 ; MIXER | ||
| 013 | I1-09709 274-1 | CLIP; AIR PIPE | 1 | 1404- | GVZ | (B) ID=6.35 & 10.0 | ||
| 297 | I0-91180 108-0 | NUT; BRKT | 4 | 1104-1303 | GVZ | M8 FLANGE | ||
| 133 | I0-28650 820-0 | BOLT; BRKT | 2 | 1104- | ALL | M8X20 FLANGE | ||
| 170 | I1-09709 280-1 | CLIP; NYLON TUBE | 1 | 1402- | FVZ | (B) ID=12 & 12 ; MIXER | ||
| 341 | I1-09709 289-0 | CLIP; HARNESS | 3 | 1312-1401 | FVZ | (B) ID=5-12 L=26 | ||
| 379 | I1-47477 716-1 | BRACKET; NYLON TUBE | 3 | 1104- | GVZ | (B) L=60 H=30 | ||
| 076 | I1-09700 838-0 | CLIP; NYLON TUBE | 1 | 1104- | ALL | ID=13 H=50 L=25 | ||
| 331 | I1-09707 183-0 | CLIP; NYLON TUBE | 1 | 1312-1403 | ALL | L=350 | ||
| 013 | I1-09709 276-1 | CLIP; AIR PIPE | 1 | 1104- | ALL | (B) ID=6.35 & 15 | ||
| 379 | I8-98044 013-0 | BRACKET; NYLON TUBE | 1 | 1104- | ALL | (C) | ||
| 021 | I0-91180 108-0 | NUT; CLIP | 1 | 1104- | ALL | M8 FLANGE |
