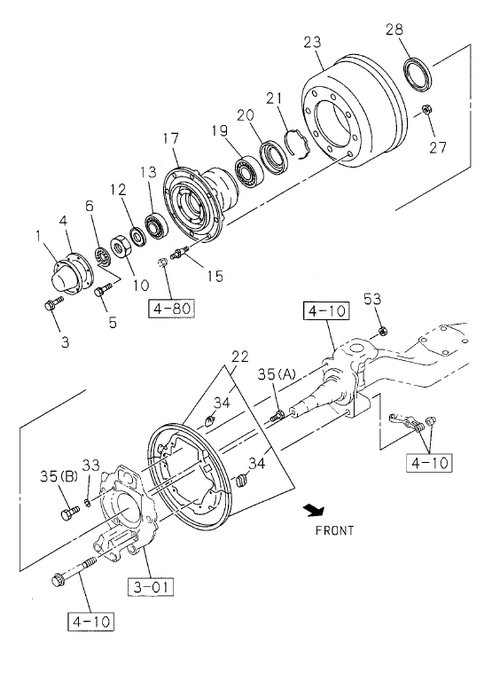

4-11 | FRONT HUB AND DRUM OR ROTOR
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 022 | I1-47151 458-2 | COVER SET; FRT BRK DRUM | 2 | 1104- | ALL | |||
| 006 | I8-98084 561-0 | WASHER; LK,FRT HUB | 2 | 1104- | ALL | ID=48 | ||
| 012 | I8-98156 755-0 | WASHER; LK,FRT HUB BRG | 2 | 1104- | ALL | ID=48 | ||
| 019 | I1-09812 231-A | BEARING; HUB INNER,FRT AXLE | 2 | 1104-1604 | ALL | (IADG) | ||
| 001 | I9-42313 123-3 | CAP; HUB,FRT AXLE | 2 | 1104- | ALL | OD=156 | ||
| 033 | I0-91510 816-0 | WASHER; LK,DRUM COVER | 4 | 1104- | ALL | ID=16.2 | ||
| 035 | I0-50041 016-0 | BOLT; DRUM COVER | 12 | 1104- | ALL | (A) M10X16 W/LK WASHER | ||
| 017 | I1-42312 128-A | HUB; FRT AXLE | 2 | 1104- | ALL | |||
| 004 | I1-42319 185-2 | GASKET; HUB CAP,FRT WHEEL | 2 | 1104- | ALL | |||
| 019 | I1-09812 231-0 | BEARING; HUB INNER,FRT AXLE | 2 | 1104-1604 | ALL | |||
| 013 | I1-09812 234-A | BEARING; HUB OUTER,FRT AXLE | 2 | 1104-1604 | ALL | (IADG) | ||
| 020 | I1-42319 039-0 | COVER; HUB BRG INNER | 2 | 1104- | ALL | |||
| 013 | I1-09812 234-0 | BEARING; HUB OUTER,FRT AXLE | 2 | 1104-1604 | ALL | |||
| 053 | I0-91110 516-0 | NUT; DRUM COVER | 4 | 1104- | ALL | M16 | ||
| 005 | I8-98200 943-0 | BOLT; LK WASHER | 4 | 1202- | ALL | M6X16 HEX SOCKET | ||
| 003 | I0-28050 812-A | BOLT; HUB CAP,FRT WHEEL | 12 | 1104- | ALL | M8X12 FLANGE | ||
| 015 | I1-42332 109-1 | PIN; WHEEL,FRT AXLE | 8 | 1104- | ALL | M24X37.5 LH THREAD,M22X57.5 RH THREAD | ||
| 023 | I1-42315 355-A | DRUM; BRK,FRT | 2 | 1104- | ALL | |||
| 027 | I1-09440 065-0 | NUT; WHEEL PIN,FRT AXLE | 16 | 1104- | ALL | M22 FLANGE | ||
| 015 | I1-42331 109-1 | PIN; WHEEL,FRT AXLE | 8 | 1104- | ALL | M24X37.5,M22X57.5 RH THREAD | ||
| 034 | I1-09333 151-0 | COVER; CHECK HOLE,DRUM COVER | 4 | 1104- | ALL | |||
| 010 | I1-09840 012-5 | NUT; FRT HUB BRG | 2 | 1104- | ALL | M48 | ||
| 021 | I1-09587 017-0 | RING; SNAP,HUB | 2 | 1104- | ALL | |||
| 028 | I6-09625 041-0 | SEAL; OIL,FRT HUB | 2 | 1104- | ALL | (IADG) OD=140 | ||
| 028 | I1-09625 041-0 | SEAL; OIL,FRT HUB | 2 | 1104- | ALL | OD=140 | ||
| 013 | I8-98317 462-0 | BEARING; HUB OUTER,FRT AXLE | 2 | 1605- | ALL | |||
| 019 | I8-98317 461-0 | BEARING; HUB INNER,FRT AXLE | 2 | 1605- | ALL | |||
| 035 | I1-09044 120-0 | BOLT; DRUM COVER | 4 | 1104- | ALL | (B) M16X52 |
