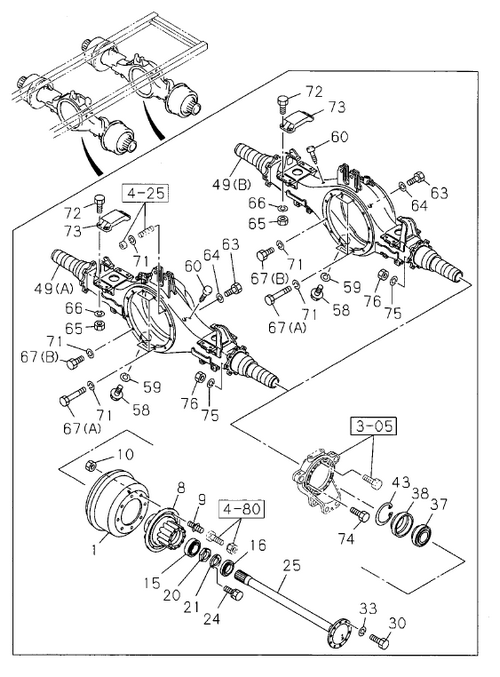

4-20 | REAR AXLE CASE AND SHAFT
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 024 | I0-28650 616-0 | BOLT; LK WASHER | 6 | 1104- | ALL | M6X16 FLANGE | ||
| 075 | I0-91510 814-0 | WASHER; LK,RR BRK ASM SETTING | 16 | 1104- | ALL | ID=14.2 | ||
| 060 | I1-09893 003-0 | BREATHER; RR AXLE CASE | 2 | 1104- | ALL | |||
| 025 | I8-98185 997-0 | SHAFT; AXLE,RR | 1 | 1104-1401 | ALL | FORWARD RH,REARWARD LH L=990 | ||
| 049 | I8-98210 825-0 | CASE; RR AXLE | 1 | 1203-1509 | ALL | (B) EXC. HD | ||
| 049 | I8-98260 439-1 | CASE; RR AXLE | 1 | 1402- | ALL | (B) HD | ||
| 071 | I0-91510 816-0 | WASHER; LK,FINAL DRIVE SETTING | 12 | 1104- | ALL | ID=16.2 | ||
| 010 | I0-91110 522-0 | NUT; WHEEL PIN,RR AXLE | 16 | 1602- | ALL | M22 | ||
| 037 | I1-09812 233-A | BEARING; HUB INNER,RR AXLE | 2 | 1104- | ALL | (IADG) | ||
| 066 | I0-91510 814-0 | WASHER; LK | 8 | 1104- | ALL | ID=14.2 | ||
| 015 | I1-09812 232-A | BEARING; HUB OUTER,RR AXLE | 2 | 1104- | ALL | (IADG) | ||
| 033 | I0-91510 814-0 | WASHER; AXLE SHAFT | 20 | 1104- | ALL | ID=14.2 | ||
| 016 | I1-09625 444-1 | SEAL; OIL,RR HUB,OUTER | 2 | 1104- | ALL | |||
| 074 | I1-09040 066-0 | BOLT; RR BRK ASM SETTING | 14 | 1104- | ALL | M14X50 | ||
| 063 | I1-09604 022-0 | PLUG; OIL FILLER,AXLE CASE | 1 | 1104- | ALL | M24X17 FLANGE | ||
| 043 | I1-09587 057-0 | RING; SNAP,HUB SEAL,RR AXLE | 2 | 1104- | ALL | OD=179 | ||
| 025 | I8-98185 998-0 | SHAFT; AXLE,RR | 1 | 1104-1401 | ALL | FORWARD LH,REARWARD RH L=1110 | ||
| 038 | I1-09625 350-0 | SEAL; OIL,RR HUB,INNER | 2 | 1104- | ALL | |||
| 076 | I0-91110 514-0 | NUT; RR BRK ASM SETTING | 16 | 1104- | ALL | M14 | ||
| 072 | I0-20951 440-0 | BOLT; PAD FIX | 8 | 1104- | ALL | M14X40 | ||
| 021 | I9-09854 112-0 | WASHER; LK,BRG NUT | 2 | 1104- | ALL | ID=88 | ||
| 015 | I1-09812 232-0 | BEARING; HUB OUTER,RR AXLE | 2 | 1104- | ALL | |||
| 049 | I8-98186 161-1 | CASE; RR AXLE | 1 | 1104-1202 | FVZ | (A) | ||
| 064 | I1-09623 179-0 | GASKET; OIL FILLER,AXLE CASE | 1 | 1104- | ALL | ID=26.8 | ||
| 020 | I9-09843 062-2 | NUT; BRG,RR HUB | 2 | 1104-1304 | ALL | M88 | ||
| 030 | I1-09000 582-0 | BOLT; HUB TO AXLE SHAFT | 20 | 1104- | ALL | M14X58 | ||
| 008 | I1-42311 104-A | HUB; RR AXLE | 2 | 1104- | ALL | |||
| 049 | I8-98210 823-0 | CASE; RR AXLE | 1 | 1203-1401 | ALL | (A) EXC. HD | ||
| 059 | I1-09623 179-0 | GASKET; DRAIN PLUG | 1 | 1104- | ALL | ID=26.8 | ||
| 049 | I8-98186 162-1 | CASE; RR AXLE | 1 | 1510- | ALL | (B) EXC. HD | ||
| 065 | I0-91110 514-0 | NUT | 8 | 1104- | ALL | M14 | ||
| 073 | I1-42124 101-0 | PAD; RR SPR CONTACT | 2 | 1104- | ALL | |||
| 067 | I0-20951 640-0 | BOLT; FINAL DRIVE SETTING | 7 | 1104-1304 | ALL | (B) FORWARD M16X40 | ||
| 010 | I1-09440 065-0 | NUT; WHEEL PIN,RR AXLE | 16 | 1104-1601 | ALL | M22 FLANGE | ||
| 058 | I1-09604 023-0 | PLUG; DRAIN,AXLE CASE | 1 | 1104- | ALL | M24X17 FLANGE | ||
| 049 | I8-98203 042-0 | CASE; RR AXLE | 1 | 1203-1401 | FVZ | (A) HD | ||
| 049 | I8-98203 043-0 | CASE; RR AXLE | 1 | 1203-1401 | FVZ | (B) HD | ||
| 001 | I1-42315 314-A | DRUM; BRK,RR | 2 | 1104- | ALL | |||
| 067 | I0-10956 670-0 | BOLT; FINAL DRIVE SETTING | 4 | 1104-1304 | ALL | (A) M16X70 | ||
| 009 | I1-42331 110-2 | PIN; WHEEL,RR AXLE | 8 | 1104- | ALL | M20X34.5,M22X51.5 RH THREAD | ||
| 009 | I1-42332 110-2 | PIN; WHEEL,RR AXLE | 8 | 1104- | ALL | M20X34.5 LH THREAD,M22X51.5 RH THREAD | ||
| 016 | I6-09625 444-0 | SEAL; OIL,RR HUB,OUTER | 2 | 1104- | ALL | (IADG) | ||
| 037 | I1-09812 233-0 | BEARING; HUB INNER,RR AXLE | 2 | 1104- | ALL |
