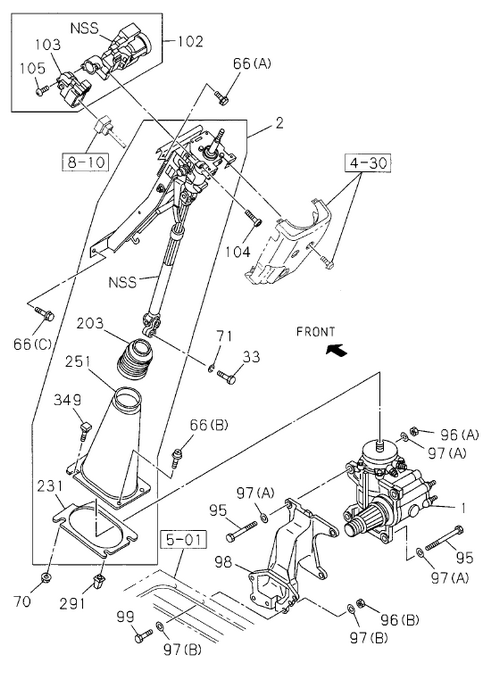

4-31 | STEERING COLUMN AND SHAFT
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 102 | I8-98006 150-1 | LOCK ASM; STRG | 1 | 1104-1311 | FVZ | |||
| 102 | I8-97556 660-0 | LOCK ASM; STRG | 1 | 2003- | ALL | |||
| 103 | I8-97556 731-0 | SWITCH; IGNITION | 1 | 2003- | ALL | |||
| 096 | I1-09440 097-0 | NUT; STRG UNIT | 6 | 1104- | ALL | (B) M14 | ||
| 095 | I1-09000 305-0 | BOLT; STRG UNIT | 4 | 1104- | ALL | M16X66 | ||
| 070 | I1-09984 180-0 | NUT; STRG COLUMN | 2 | 1104- | ALL | M6 FLANGE W/RUBBER | ||
| 103 | I8-98045 349-0 | SWITCH; IGNITION | 1 | 1104-2002 | FVZ | |||
| 002 | I8-97948 356-1 | SHAFT ASM; STRG | 1 | 1603- | ALL | |||
| 002 | I8-97415 618-1 | SHAFT ASM; STRG | 1 | 1104-1602 | FVZ | BLACK | ||
| 349 | I8-98137 334-0 | BOLT; COVER | 2 | 1104-1602 | FVZ | |||
| 203 | I8-97948 998-0 | BOOT; STRG COLUMN LWR | 1 | 1603- | ALL | |||
| 097 | I1-09503 316-0 | WASHER; PL,STRG UNIT | 6 | 1104- | ALL | (A) ID=16.2 | ||
| 231 | I8-98137 330-0 | SEAL; RUBBER,STRG COLUMN | 1 | 1104-1602 | FVZ | |||
| 066 | I8-98018 439-0 | BOLT; STRG COLUMN | 2 | 1104- | ALL | (C) M8X25 W/LK&PL WASHER | ||
| 097 | I8-98010 627-1 | WASHER; PL,STRG UNIT | 12 | 1104- | ALL | (B) ID=15 | ||
| 096 | I0-91110 516-0 | NUT; STRG UNIT | 2 | 1104- | ALL | (A) M16 | ||
| 066 | I0-28650 820-0 | BOLT; STRG COLUMN | 2 | 1104- | ALL | (A) M8X20 FLANGE | ||
| 098 | I1-44226 136-1 | BRACKET; STRG GEAR BOX | 1 | 1104- | ALL | |||
| 231 | I8-97949 003-0 | SEAL; RUBBER,STRG COLUMN | 1 | 1603- | ALL | |||
| 203 | I8-98137 333-0 | BOOT; STRG COLUMN LWR | 1 | 1104-1602 | FVZ | |||
| 104 | I8-97321 385-0 | BOLT; STRG LOCK TO COLUMN | 2 | 1104- | ALL | M8X20 TORQUE SHEAR BOLT | ||
| 066 | I0-72180 518-0 | BOLT; STRG COLUMN | 2 | 1104- | ALL | (B) M5X18 TAPPING | ||
| 102 | I8-97948 271-0 | LOCK ASM; STRG | 1 | 1312-2002 | ALL | |||
| 251 | I8-97417 050-0 | COVER; LWR | 1 | 1104-1602 | FVZ | BLACK | ||
| 071 | I0-91510 810-0 | WASHER; LK,SHAFT TO UNIT | 1 | 1104- | ALL | ID=10.2 | ||
| 033 | I1-09009 126-1 | BOLT; STRG SHAFT TO UNIT | 1 | 1104- | ALL | M10X35 | ||
| 251 | I8-97949 001-0 | COVER; LWR | 1 | 1603- | ALL | |||
| 001 | I1-44000 953-1 | STEERING UNIT | 1 | 1104-1602 | FVZ | |||
| 099 | I1-09000 787-1 | BOLT; BRKT TO FRAME | 6 | 1104- | ALL | M14X50 | ||
| 105 | I8-98045 346-0 | SCREW; IGN SW | 2 | 1104- | ALL | |||
| 001 | I8-97948 359-1 | STEERING UNIT | 1 | 1603- | ALL | |||
| 349 | I8-97949 004-0 | BOLT; COVER | 2 | 1603- | ALL | |||
| 291 | I8-94279 043-A | GROMMET; STRG SHAFT COVER | 2 | 1104- | ALL | D=7.8X7.8 L=18 NATURAL |
