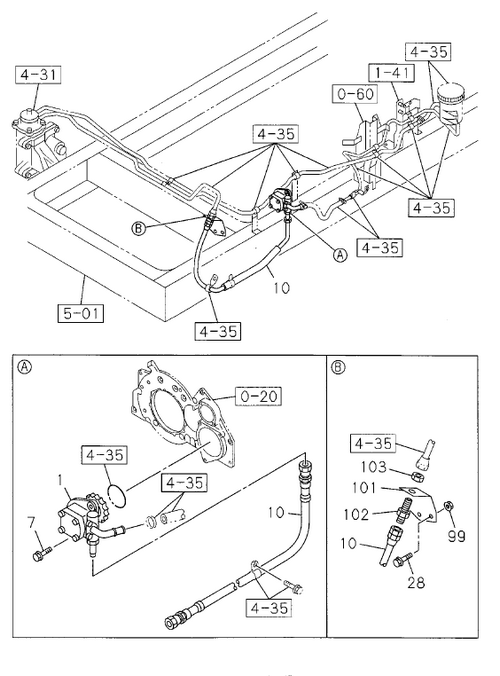

4-36 | POWER STEERING CONTROL; ENGINE SIDE
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 099 | I0-91180 108-0 | NUT; BRKT,FLEX HOSE,P/S | 2 | 1104- | ALL | M8 FLANGE | ||
| 007 | I8-97365 449-0 | BOLT; OIL PUMP,P/S | 2 | 1104- | ALL | M10X55 FLANGE | ||
| 010 | I8-98181 476-0 | HOSE; FLEX,P/S OIL PUMP,INL | 1 | 1603- | ALL | L=460 | ||
| 101 | I8-98052 888-1 | BRACKET; UNION | 1 | 1104- | ALL | |||
| 103 | I0-91111 522-0 | NUT; UNION | 1 | 1104- | ALL | M22 | ||
| 010 | I8-98060 231-2 | HOSE; FLEX,P/S OIL PUMP,INL | 1 | 1104- | ALL | |||
| 001 | I1-19500 629-1 | PUMP ASM; OIL,P/S | 1 | 1104- | ALL | |||
| 028 | I0-28650 820-0 | BOLT; BRKT,FLEX HOSE,P/S | 2 | 1104- | ALL | M8X20 FLANGE | ||
| 102 | I1-09654 167-1 | UNION | 1 | 1104- | ALL | M20 & M22 STRAIGHT |
