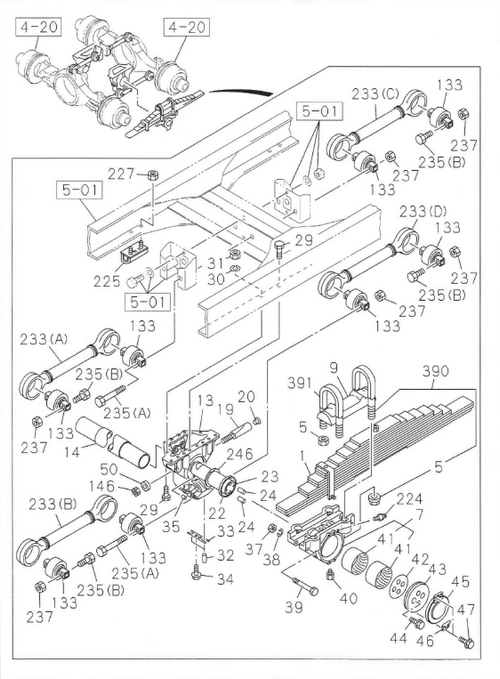

| 046 |
I1-51387 015-2 |
|
BRACKET; COVER |
2 |
1104- |
|
ALL |
|
| 047 |
I0-28050 812-A |
|
BOLT; COVER TO SEAT |
8 |
1104- |
|
ALL |
M8X12 FLANGE |
| 024 |
I1-09740 009-0 |
|
PIN; SIDE PLATE TO SHAFT |
4 |
1104- |
|
ALL |
|
| 023 |
I8-98321 423-0 |
|
SEAL; OIL,TRUNNION SHAFT |
2 |
1602- |
|
ALL |
|
| 246 |
I1-51389 058-0 |
|
WASHER; TORQUE ROD |
2 |
1312- |
|
ALL |
|
| 019 |
I1-51389 066-0 |
|
BOLT; KEY,SHAFT |
2 |
1104- |
|
ALL |
|
| 014 |
I7-66901 377-A |
|
PIPE; TRUNNION BRKT |
1 |
1104- |
|
ALL |
|
| 013 |
I8-97915 942-3 |
|
BRACKET; TRUNNION SHAFT |
2 |
1312-1403 |
|
ALL |
|
| 233 |
I1-51511 674-A |
|
ROD ASM; TORQUE,RR SUSP |
1 |
1104- |
|
ALL |
(A) L=540 |
| 391 |
I6-51371 101-0 |
|
U-BOLT; RR SPRING |
4 |
1104- |
|
ALL |
(IADG) L=400; W/O NUT |
| 041 |
I6-98081 832-0 |
|
BUSHING; TRUNNION SHAFT |
4 |
1104- |
|
ALL |
(IADG) |
| 029 |
I9-92061 855-0 |
|
BOLT; BRKT TO FRAME |
4 |
1104- |
|
ALL |
M18X55 |
| 225 |
I7-66802 318-A |
|
RUBBER; CUSHION,RR SPR |
1 |
1104- |
|
ALL |
FORWARD |
| 235 |
I8-98012 877-0 |
|
BOLT; TORQUE ROD |
12 |
1104- |
|
ALL |
(B) M18X102 |
| 044 |
I1-09044 038-2 |
|
BOLT; SIDE PLATE TO SHAFT |
4 |
1104- |
|
ALL |
M18X48.5 FLANGE |
| 040 |
I9-51389 010-0 |
|
VALVE; GREASE ESCAPE |
2 |
1104- |
|
ALL |
|
| 029 |
I8-98012 872-0 |
|
BOLT; BRKT TO FRAME |
24 |
1104- |
|
ALL |
M18X75 |
| 031 |
I0-91110 518-0 |
|
NUT; TRUNNION BRKT |
28 |
1104- |
|
ALL |
M18 |
| 023 |
I1-51389 005-0 |
|
SEAL; OIL,TRUNNION SHAFT |
2 |
1104-1601 |
|
ALL |
|
| 227 |
I0-91180 212-0 |
|
NUT; CUSHION RUBBER |
8 |
1104- |
|
ALL |
M12 FLANGE |
| 235 |
I8-98012 875-0 |
|
BOLT; TORQUE ROD |
6 |
1104- |
|
ALL |
(A) M18X265 |
| 041 |
I8-98081 832-0 |
|
BUSHING; TRUNNION SHAFT |
4 |
1104- |
|
ALL |
|
| 007 |
I8-97614 049-2 |
|
SEAT; SPR,LWR |
2 |
1104- |
|
ALL |
|
| 001 |
I8-97695 245-A |
|
SPRING ASM; LEAF,RR |
2 |
1104- |
|
GVZ |
|
| 146 |
I0-91110 524-0 |
|
NUT; KEY BOLT |
2 |
1104- |
|
ALL |
M24 |
| 013 |
I1-53361 079-0 |
|
BRACKET; TRUNNION SHAFT |
2 |
1104- |
|
ALL |
|
| 005 |
I1-09440 058-0 |
|
NUT; U-BOLT,RR SPR |
8 |
1104- |
|
ALL |
M27 FLANGE |
| 233 |
I1-51511 658-A |
|
ROD ASM; TORQUE,RR SUSP |
2 |
1104-1303 |
|
GVZ |
(D) L=545 |
| 020 |
I1-09333 057-A |
|
GROMMET; KEY BOLT |
2 |
1104- |
|
ALL |
|
| 043 |
I1-51382 010-4 |
|
PLATE; SIDE,TRUNNION SHAFT |
2 |
1104- |
|
ALL |
|
| 233 |
I1-51511 659-A |
|
ROD ASM; TORQUE,RR SUSP |
2 |
1310- |
|
GVZ |
(D) L=550 |
| 032 |
I1-09740 051-0 |
|
PIN; STRAIGHT |
4 |
1104- |
|
ALL |
|
| 022 |
I1-51381 022-3 |
|
SHAFT; TRUNNION,RR SUSP |
2 |
1104- |
|
ALL |
|
| 225 |
I7-66802 317-A |
|
RUBBER; CUSHION,RR SPR |
1 |
1104- |
|
ALL |
FORWARD,REARWARD |
| 224 |
I0-90301 410-0 |
|
NIPPLE; GREASE,SPR SEAT |
2 |
1104- |
|
ALL |
PT1/8 STRAIGHT |
| 042 |
I1-51389 033-1 |
|
SHIM; SIDE PLATE TO SHAFT |
12 |
1104- |
|
ALL |
|
| 030 |
I1-09503 162-0 |
|
WASHER; PL,TRUNNION BRKT |
28 |
1104- |
|
ALL |
ID=19 |
| 390 |
I6-51371 101-0 |
|
U-BOLT SET; RR SPRING |
4 |
1104- |
|
ALL |
(IADG) L=400 |
| 005 |
I8-97948 151-0 |
|
NUT; U-BOLT,RR SPR |
8 |
1312-1403 |
|
ALL |
M27 FLANGE |
| 237 |
I1-09464 011-0 |
|
NUT; TORQUE ROD |
18 |
1104- |
|
ALL |
M18 |
| 001 |
I7-66020 315-A |
|
SPRING ASM; LEAF,RR |
2 |
1104- |
|
FVZ |
|
| 233 |
I1-51511 659-A |
|
ROD ASM; TORQUE,RR SUSP |
1 |
1310- |
|
ALL |
(C) L=550 |
| 039 |
I9-09801 290-1 |
|
BOLT; SPR SETTING |
4 |
1104- |
|
ALL |
M22X155 |
| 037 |
I0-91110 522-0 |
|
NUT; SPR SETTING |
4 |
1104- |
|
ALL |
M22 |
| 391 |
I1-51371 101-A |
|
U-BOLT; RR SPRING |
4 |
1104- |
|
ALL |
L=400; W/O NUT |
| 009 |
I8-98177 265-0 |
|
PAD; U BOLT,RR SPR |
2 |
1104- |
|
ALL |
|
| 035 |
I1-09749 030-1 |
|
PIN; TRUNNION SHAFT |
4 |
1104- |
|
ALL |
|
| 133 |
I1-51519 113-A |
|
BUSHING; RUBBER,TORQUE ROD |
4 |
1104- |
|
ALL |
OD=105 |
| 038 |
I0-91510 622-0 |
|
WASHER; LK,SPR SETTING |
4 |
1104- |
|
ALL |
ID=22.5 |
| 233 |
I1-51511 678-A |
|
ROD ASM; TORQUE,RR SUSP |
2 |
1104- |
|
ALL |
(B) L=530 |
| 034 |
I0-28051 016-0 |
|
BOLT; LOCK PLATE |
2 |
1104- |
|
ALL |
M10X16 FLANGE |
| 390 |
I1-87870 495-0 |
|
U-BOLT SET; RR SPRING |
4 |
1104- |
|
ALL |
L=400 |
| 045 |
I1-51387 013-2 |
|
COVER; SPR SEAT |
2 |
1104- |
|
ALL |
|
| 225 |
I1-53366 072-A |
|
RUBBER; CUSHION,RR SPR |
1 |
1104- |
|
ALL |
REARWARD |
| 050 |
I8-98012 871-0 |
|
WASHER; PL,TRUNNION SHAFT |
2 |
1104- |
|
ALL |
ID=25 |
| 133 |
I6-51519 113-2 |
|
BUSHING; RUBBER,TORQUE ROD |
4 |
1104- |
|
ALL |
(IADG) OD=105 |
| 033 |
I1-53369 032-1 |
|
PLATE; LK KNOCK PIN |
2 |
1104- |
|
ALL |
|
| 022 |
I6-51381 022-0 |
|
SHAFT; TRUNNION,RR SUSP |
2 |
1104- |
|
ALL |
(IADG) |
| 001 |
I6-66020 315-0 |
|
SPRING ASM; LEAF,RR |
2 |
1104- |
|
FVZ |
(IADG) |
