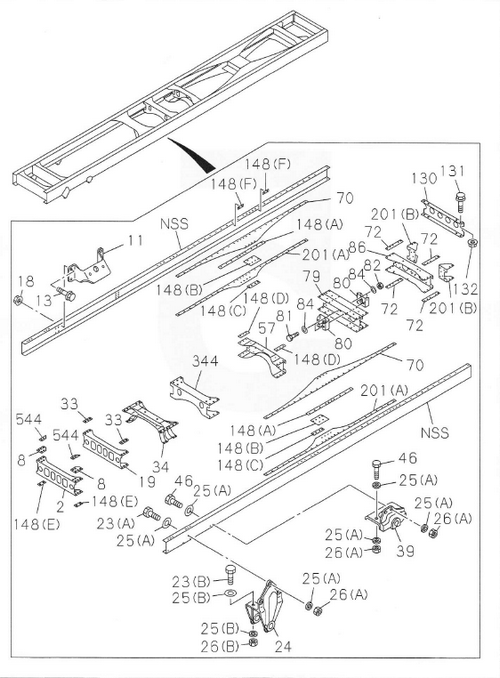

5-01 | FRAME AND OTHER PARTS
GIGA
GIGA FVZ
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 002 | I8-97695 001-A | MEMBER; CROSS,1ST | 1 | 1312- | FVZ | DUMP | ||
| 081 | I0-10956 450-0 | BOLT; BRKT | 2 | 1104-1309 | ALL | M14X50 ; EXC. MIXER | ||
| 018 | I0-91180 212-0 | NUT; BRKT,ENG MTG | 8 | 1104-1309 | ALL | M12 FLANGE ; EXC. MIXER | ||
| 080 | I8-97948 138-0 | BRACKET; C/MBR | 2 | 1312- | FVZ | DUMP | ||
| 080 | I1-53363 068-0 | BRACKET; C/MBR | 2 | 1104-1309 | FVZ | LWB ; MIXER | ||
| 024 | I8-98018 841-0 | BRACKET; FRT SPR,FRT | 1 | 1104-1309 | FVZ | |||
| 002 | I8-97695 001-A | MEMBER; CROSS,1ST | 1 | 1310- | FVZ | LWB ; MIXER | ||
| 086 | I8-97695 006-A | MEMBER; CROSS,RR SUSP RR | 1 | 1104-1309 | FVZ | LWB ; MIXER | ||
| 148 | I8-97612 115-A | SPACER; C/MBR | 2 | 1104-1309 | FVZ | (C) LWB ; MIXER | ||
| 065 | I8-97614 150-0 | BRACKET; CENTER BRG | 2 | 1310- | FVZ | (A) LWB | ||
| 345 | I8-97695 004-A | MEMBER; CROSS,5TH | 1 | 1310- | FVZ | LWB | ||
| 082 | I0-91110 514-0 | NUT; BRKT | 2 | 1104-1309 | ALL | M14 ; EXC. MIXER | ||
| 006 | I8-98010 627-1 | WASHER; LK,1ST C/MBR | 2 | 1312-1403 | ALL | (B) ID=15 ; EXC. MIXER | ||
| 201 | I8-97695 028-A | GUSSET; C/MBR | 2 | 1104-1309 | FVZ | (B) LWB ; MIXER | ||
| 057 | I8-97695 021-A | MEMBER; CROSS,RR SUSP FRT | 1 | 1104-1309 | FVZ | |||
| 013 | I0-28661 240-0 | BOLT; BRKT,ENG MTG | 8 | 1104-1309 | ALL | M12X40 FLANGE ; EXC. MIXER | ||
| 034 | I8-97695 016-A | MEMBER; CROSS,3RD | 1 | 1104-1309 | ALL | |||
| 079 | I8-97695 005-A | MEMBER; CROSS,TRUNNION ASM | 1 | 1312- | FVZ | DUMP | ||
| 004 | I0-91110 514-0 | NUT; 1ST C/MBR TO S/MBR | 2 | 1312-1403 | ALL | M14 ; EXC. MIXER | ||
| 016 | I0-20851 440-0 | BOLT; 1ST C/MBR TO S/MBR | 2 | 1312-1403 | ALL | M14X40 ; EXC. MIXER | ||
| 086 | I8-97695 006-A | MEMBER; CROSS,RR SUSP RR | 1 | 1312- | FVZ | DUMP | ||
| 025 | I8-98010 627-1 | WASHER; PL,BRKT | 28 | 1104-1309 | ALL | (A) ID=15 ; EXC. MIXER | ||
| 148 | I8-97611 039-0 | SPACER; C/MBR | 2 | 1104-1309 | ALL | (E) EXC. MIXER | ||
| 079 | I8-97695 005-A | MEMBER; CROSS,TRUNNION ASM | 1 | 1104-1309 | FVZ | LWB ; MIXER | ||
| 148 | I8-97612 112-A | SPACER; C/MBR | 2 | 1104- | FVZ | (A) MIXER | ||
| 026 | I0-91110 514-0 | NUT; BRKT,SPR | 14 | 1104-1309 | ALL | (A) M14 ; EXC. MIXER | ||
| 201 | I8-97695 028-A | GUSSET; C/MBR | 2 | 1312- | FVZ | (B) DUMP | ||
| 011 | I8-97619 550-A | BRACKET; ENG MTG | 2 | 1104- | FVZ | |||
| 023 | I0-20951 450-0 | BOLT; BRKT,SPR | 6 | 1104-1309 | ALL | (A) M14X50 ; EXC. MIXER | ||
| 148 | I8-97612 111-A | SPACER; C/MBR | 4 | 1104-1309 | FVZ | (F) LWB ; MIXER | ||
| 025 | I1-09503 316-0 | WASHER; PL,BRKT | 8 | 1104-1309 | ALL | (B) ID=16.2 ; EXC. MIXER | ||
| 131 | I0-50541 230-0 | BOLT; END C/MBR | 4 | 1104-1309 | FVZ | M12X30 W/LK WASHER ; DUMP ; LWB ; MIXER | ||
| 148 | I8-97695 164-A | SPACER; C/MBR | 2 | 1312- | FVZ | (B) DUMP | ||
| 148 | I8-97646 445-0 | SPACER; C/MBR | 2 | 1310- | FVZ | (A) LWB | ||
| 201 | I8-97646 267-0 | GUSSET; C/MBR | 2 | 1310- | FVZ | (A) LWB | ||
| 019 | I8-97695 002-A | MEMBER; CROSS,2ND | 1 | 1312- | FVZ | DUMP | ||
| 008 | I8-97611 027-0 | GUSSET; 1ST C/MBR | 2 | 1104-1309 | ALL | |||
| 148 | I8-97612 109-A | SPACER; C/MBR | 2 | 1104-1309 | ALL | (D) EXC. MIXER | ||
| 023 | I0-20951 660-0 | BOLT; BRKT,SPR | 4 | 1104-1309 | ALL | (B) M16X60 ; EXC. MIXER | ||
| 033 | I8-97948 140-0 | SPACER; 2ND C/MBR,UPR | 2 | 1312- | FVZ | DUMP | ||
| 039 | I8-98043 648-0 | BRACKET; FRT SPR,RR | 1 | 1104-1309 | FVZ | LWB ; MIXER | ||
| 201 | I8-97646 544-0 | GUSSET; C/MBR | 2 | 1402- | FVZ | (A) MIXER | ||
| 070 | I8-97647 951-0 | GUSSET; TRUNNION,UPR | 2 | 1404- | FVZ | MIXER | ||
| 344 | I8-97695 004-A | MEMBER; CROSS,4TH | 1 | 1312- | FVZ | DUMP | ||
| 130 | I8-97695 020-A | MEMBER; CROSS,END | 1 | 1104-1309 | FVZ | LWB ; MIXER | ||
| 039 | I8-97924 626-0 | BRACKET; FRT SPR,RR | 1 | 1312- | FVZ | DUMP | ||
| 132 | I0-91110 512-0 | NUT; END C/MBR | 4 | 1104-1309 | FVZ | M12 ; DUMP ; LWB ; MIXER | ||
| 019 | I8-97695 002-A | MEMBER; CROSS,2ND | 1 | 1104-1309 | FVZ | LWB | ||
| 084 | I8-98010 627-1 | WASHER; PL,BRKT | 4 | 1104-1309 | ALL | ID=15 ; EXC. MIXER | ||
| 046 | I0-20951 450-0 | BOLT; BRKT FIX | 8 | 1104-1309 | ALL | M14X50 ; EXC. MIXER | ||
| 033 | I8-97611 040-0 | SPACER; 2ND C/MBR,UPR | 2 | 1104-1309 | FVZ | LWB ; MIXER | ||
| 072 | I8-97612 110-0 | SPACER; TRUNNION | 4 | 1104- | FVZ | |||
| 148 | I8-97612 113-A | SPACER; C/MBR | 2 | 1104-1309 | FVZ | (B) LWB ; MIXER | ||
| 039 | I8-98043 649-0 | BRACKET; FRT SPR,RR | 1 | 1104-1309 | FVZ | LWB ; MIXER | ||
| 006 | I0-91510 814-0 | WASHER; LK,1ST C/MBR | 2 | 1312-1403 | ALL | (A) ID=14.2; EXC. MIXER | ||
| 039 | I8-97924 625-0 | BRACKET; FRT SPR,RR | 1 | 1312- | FVZ | DUMP | ||
| 065 | I8-97614 132-0 | BRACKET; CENTER BRG | 2 | 1310- | FVZ | (B) LWB | ||
| 201 | I8-97647 952-0 | GUSSET; C/MBR | 2 | 1404- | FVZ | (A) MIXER | ||
| 026 | I0-91110 516-0 | NUT; BRKT,SPR | 4 | 1104-1309 | ALL | (B) M16 ; EXC. MIXER | ||
| 070 | I8-97695 027-A | GUSSET; TRUNNION,UPR | 2 | 1104-1309 | FVZ | LWB ; MIXER | ||
| 344 | I8-97695 004-A | MEMBER; CROSS,4TH | 1 | 1104-1309 | FVZ | LWB | ||
| 201 | I8-97695 031-A | GUSSET; C/MBR | 1 | 1312- | FVZ | (A) DUMP | ||
| 130 | I8-97695 020-A | MEMBER; CROSS,END | 1 | 1312- | FVZ | DUMP | ||
| 070 | I8-97695 027-A | GUSSET; TRUNNION,UPR | 2 | 1312- | FVZ | DUMP | ||
| 001 | I8-97523 530-A | FRAME; ASM | 1 | 1104- | FVZ | DUMP | ||
| 019 | I8-97695 002-A | MEMBER; CROSS,2ND | 1 | 1310- | FVZ | LWB ; MIXER | ||
| 544 | I8-97615 598-A | PLATE; CAB FRT MTG | 2 | 1104-1309 | FVZ | LWB ; MIXER | ||
| 002 | I8-97695 001-A | MEMBER; CROSS,1ST | 1 | 1104-1309 | FVZ | LWB | ||
| 024 | I8-98018 840-0 | BRACKET; FRT SPR,FRT | 1 | 1104-1309 | FVZ | |||
| 201 | I8-97695 034-A | GUSSET; C/MBR | 1 | 1312- | FVZ | (A) DUMP |
